Luggage Compartment Lighting Malfunctioning

Luggage Compartment Lighting Malfunctioning

Fault symptoms
Luggage compartment lighting malfunctioning










Diagnostic help

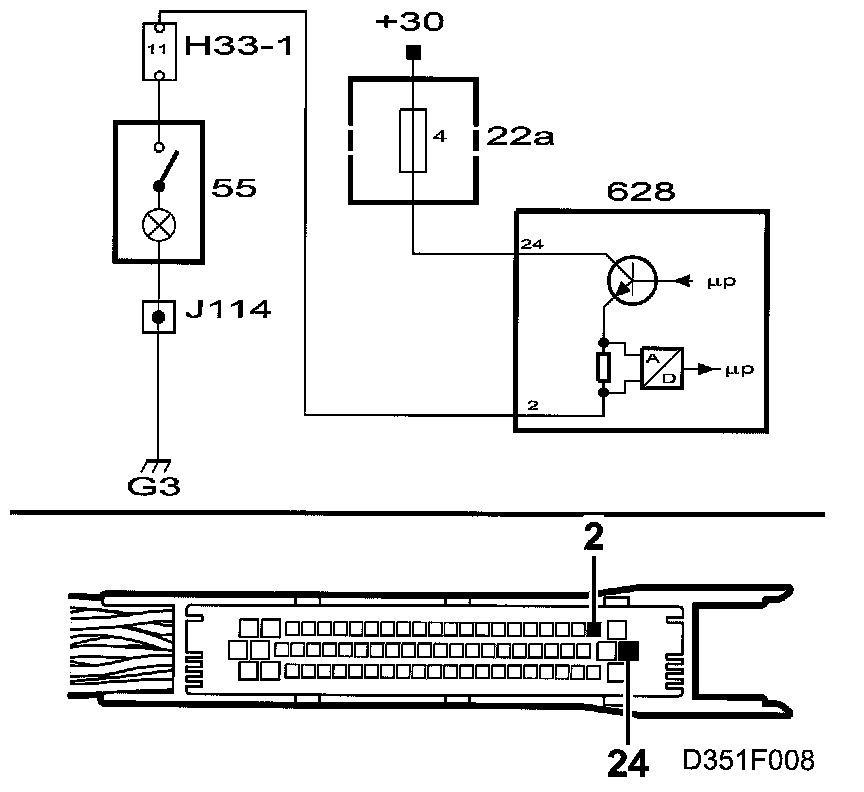

Check fuse 4 in the cabin. Check also that the switch located on the luggage compartment lamp is on.

The following values can be read with the diagnostic tool:

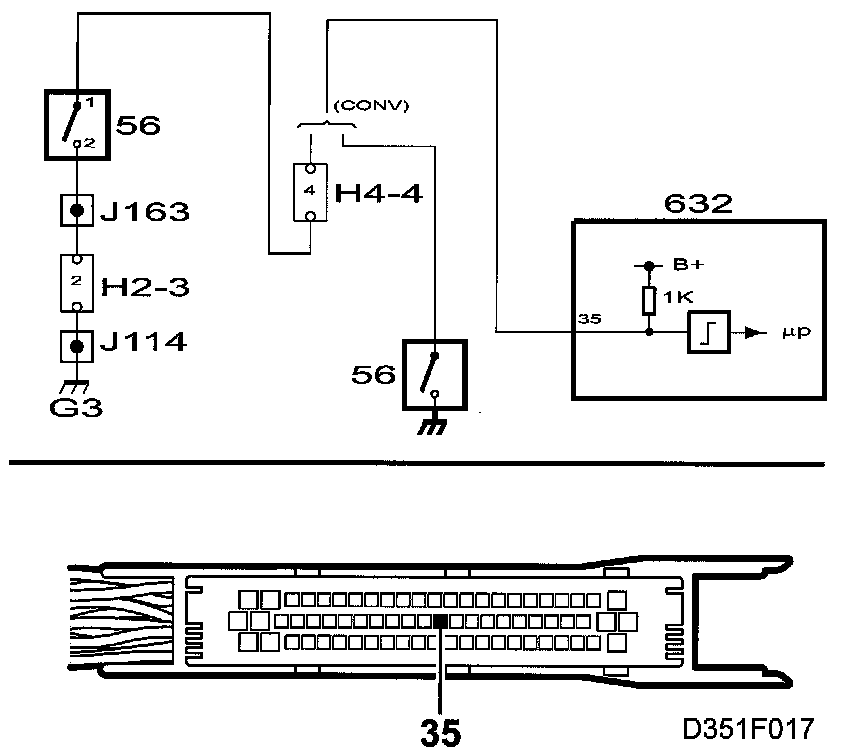

- Boot lid (bus from TWICE)
- Luggage compartment lighting, output

The following functions can be activated with the diagnostic tool:
- Luggage compartment lighting

Check the wiring harness
Jiggle the wiring harness in several places and in various directions to detect intermittent open circuits and short circuits in the wiring harness. Watch the multimeter, diagnostic tool and test lamp during the check.
