Tail Lamp: Service and Repair

Rear Lights And Rear Light Fittings

To remove

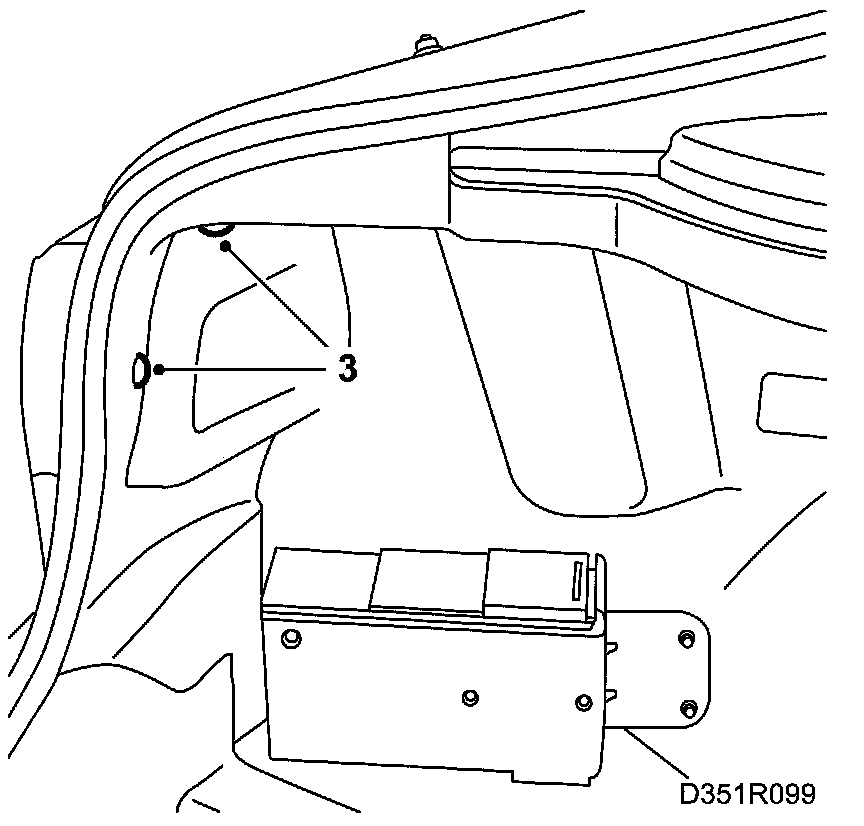

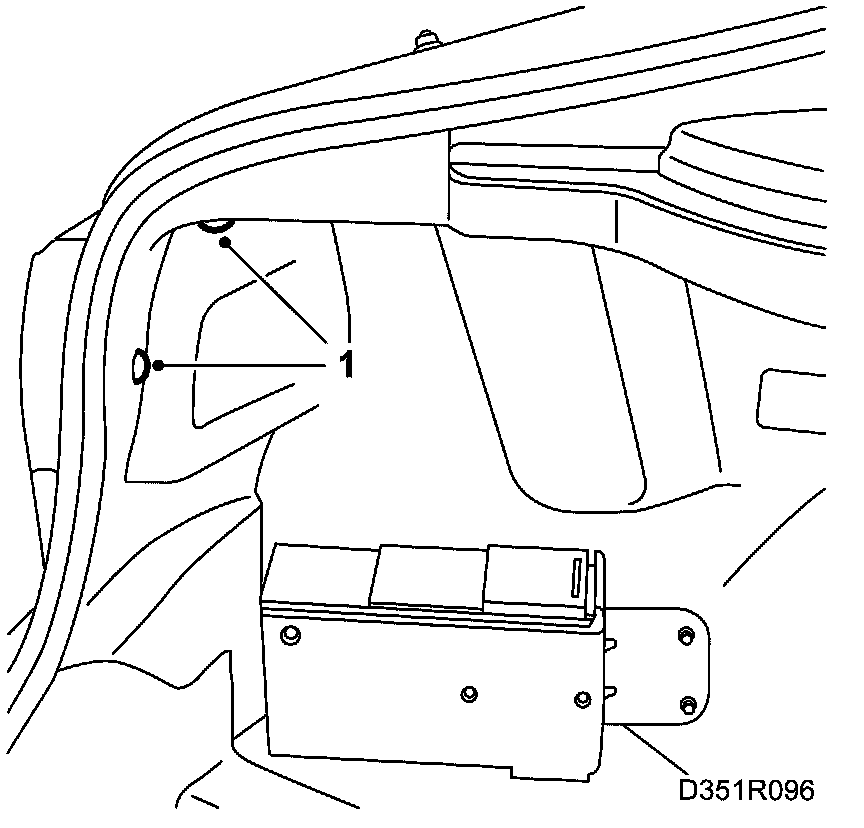

1. Unscrew the nut holding the rear edge of the side trim and fold down the trim.
2. Loosen the lamp holder.

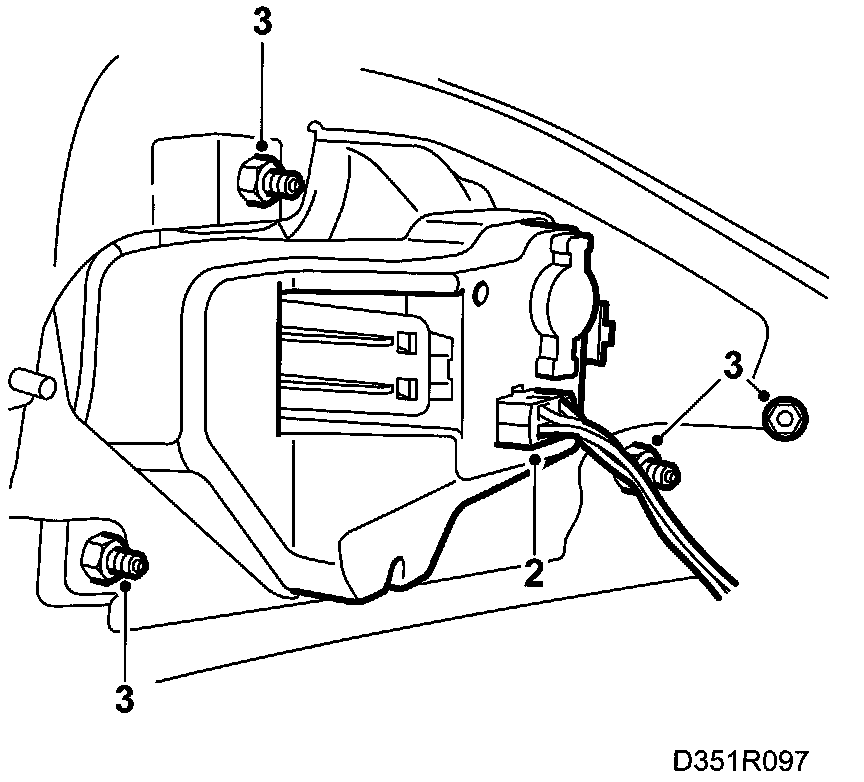

3. Unscrew the 4 lamp glass retaining nuts and remove the lamp cluster.

To fit

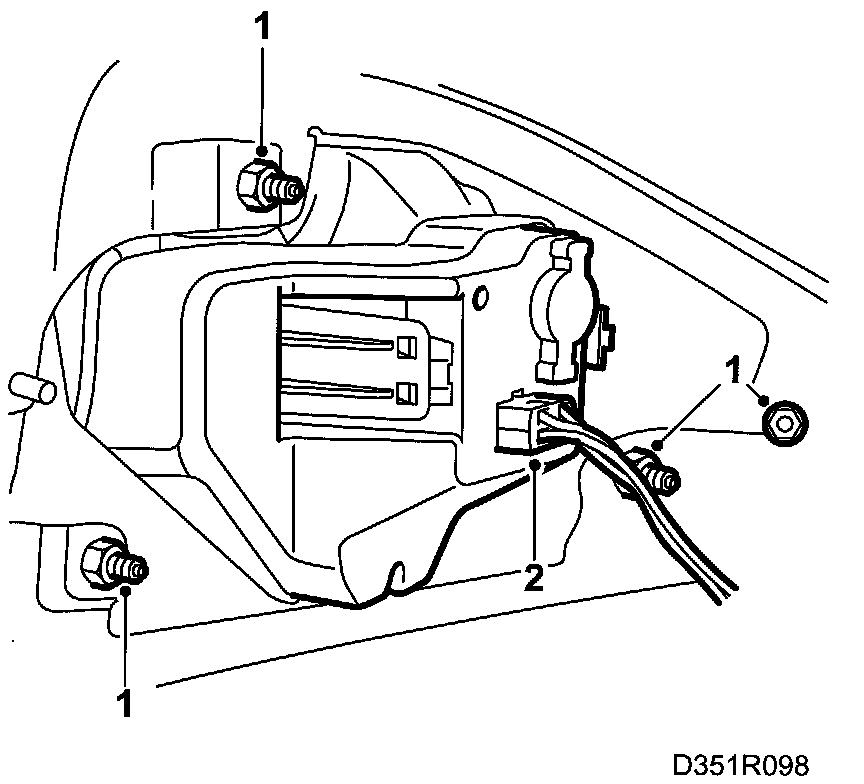

1. Position the lamp glass correctly and screw on the retaining nuts.
2. Fit the lamp holder.
3. Replace the nuts and side trim.







Lamp bulb, rear light

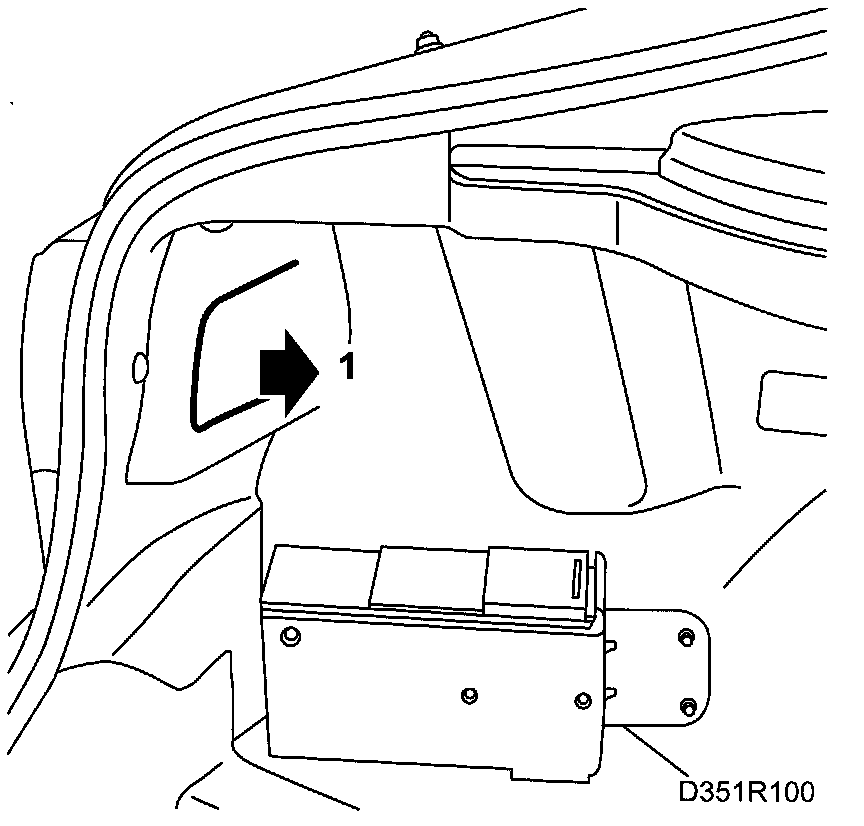

1. Open the cover in the trim.
2. Loosen the lamp holder.

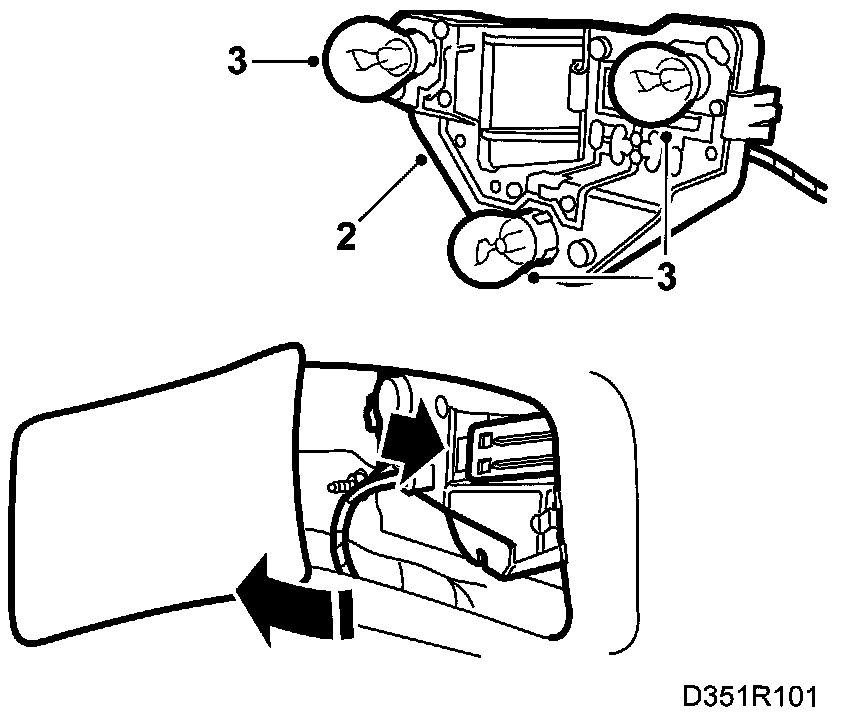

3. Remove and change the bulb.
4. Fit the bulb holder.
5. Put back the trim cover.
