Ground Locations
>>
Grounding Point G35
Grounding Point G35
Grounding Point G35

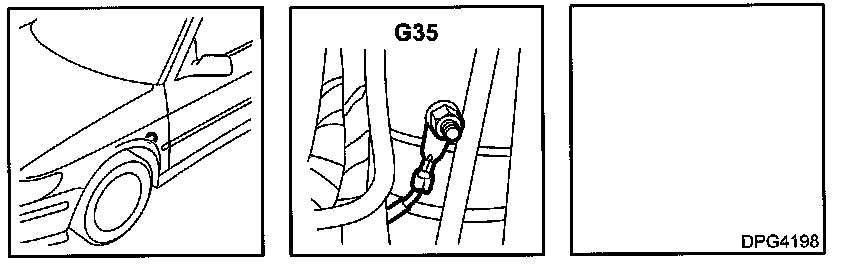

Location:
on side wall behind connector bracket under LH A-pillar

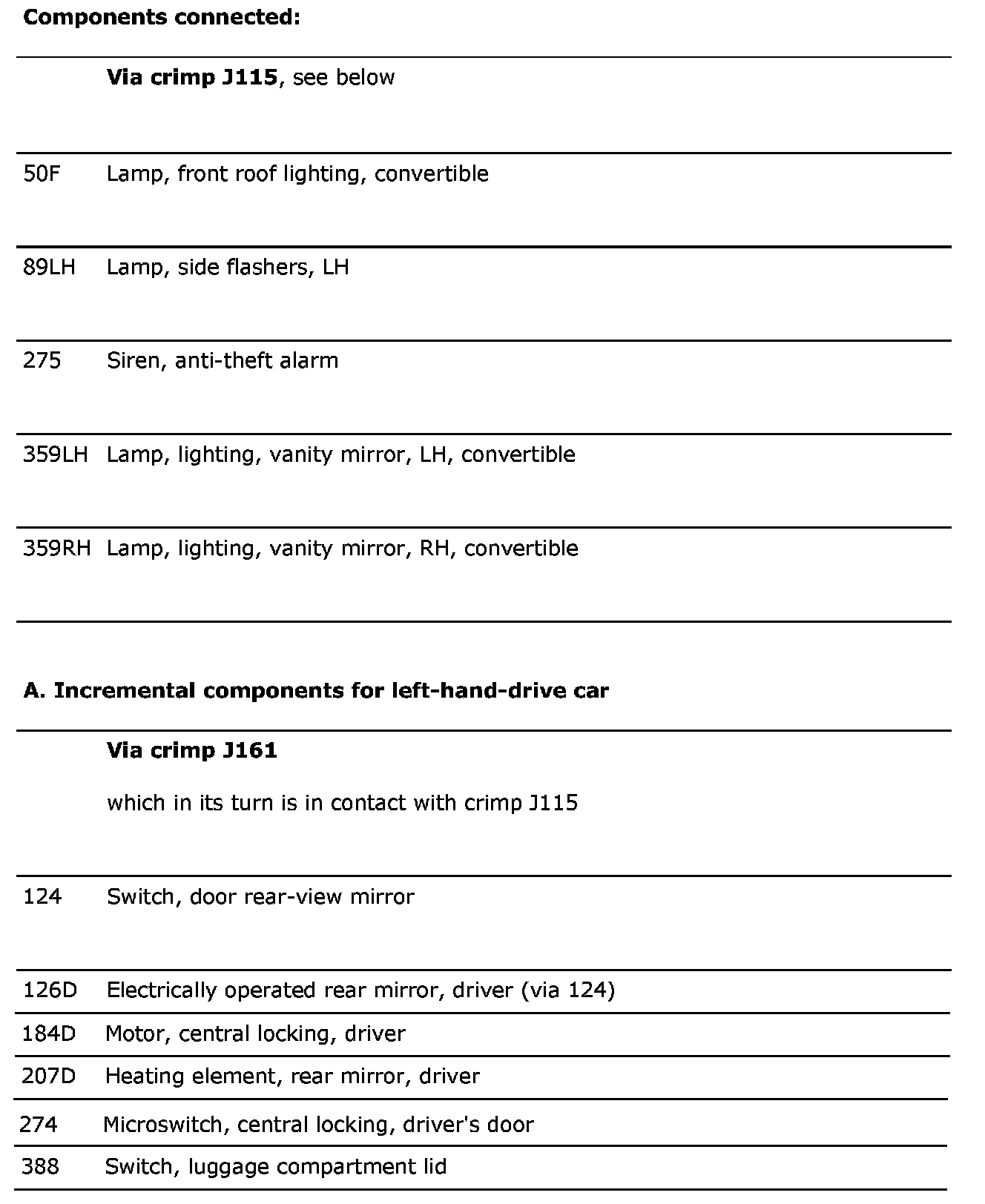

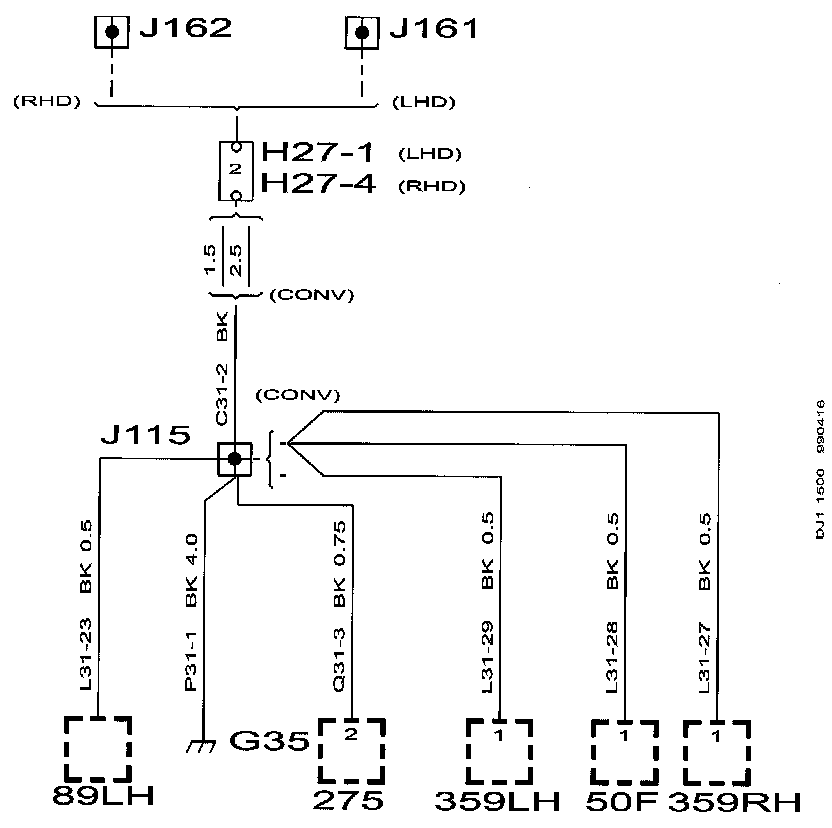

Connected Components:
