Grounding Point G30



Grounding Point G30

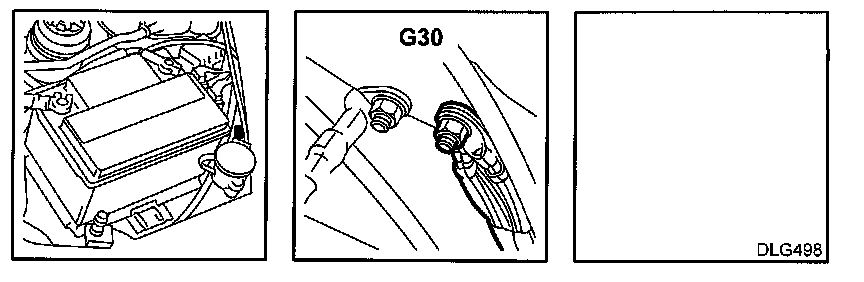

Location: in engine bay on side panel in front of left-hand wheel housing.

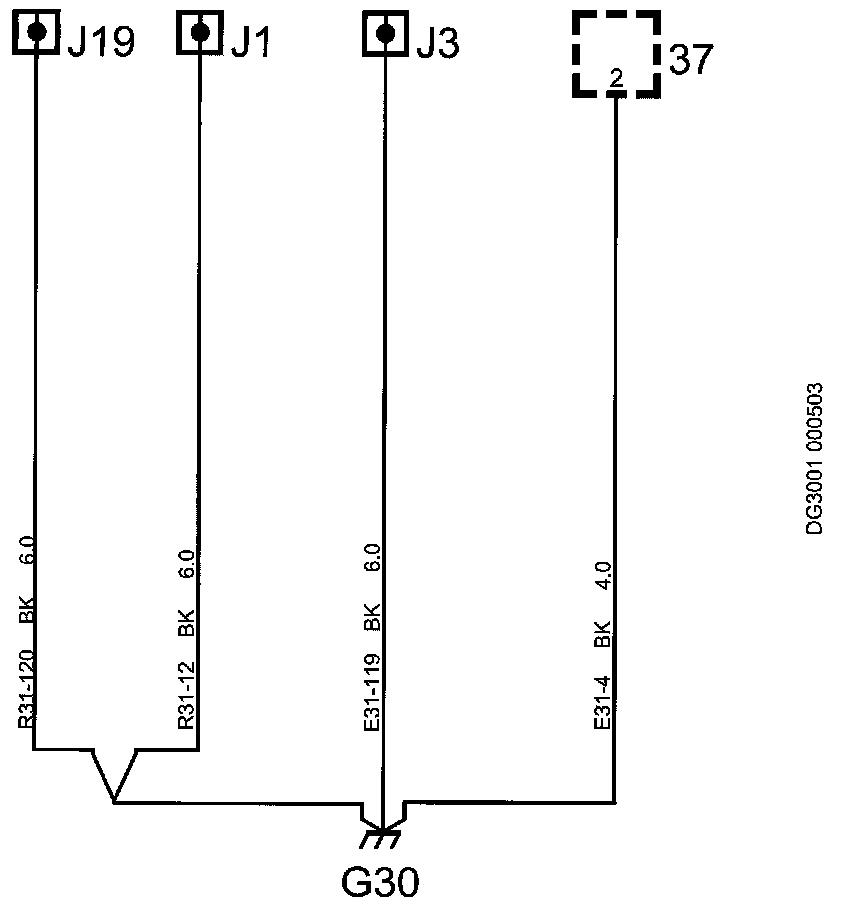

Connected Components Part 1:




Connected Components Part 2:
