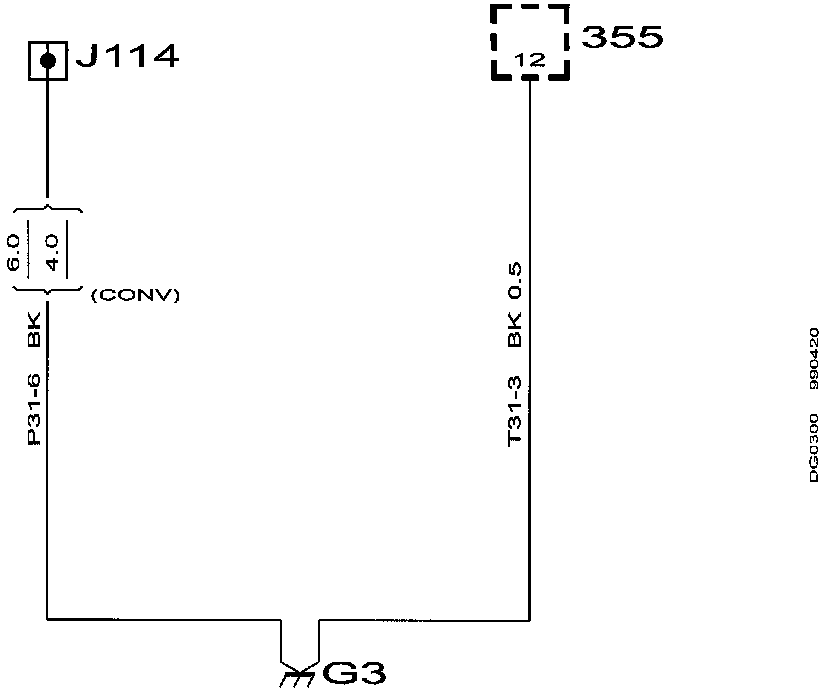

Grounding Point G3



Grounding Point G3







Location: in luggage compartment under rear left light cluster.

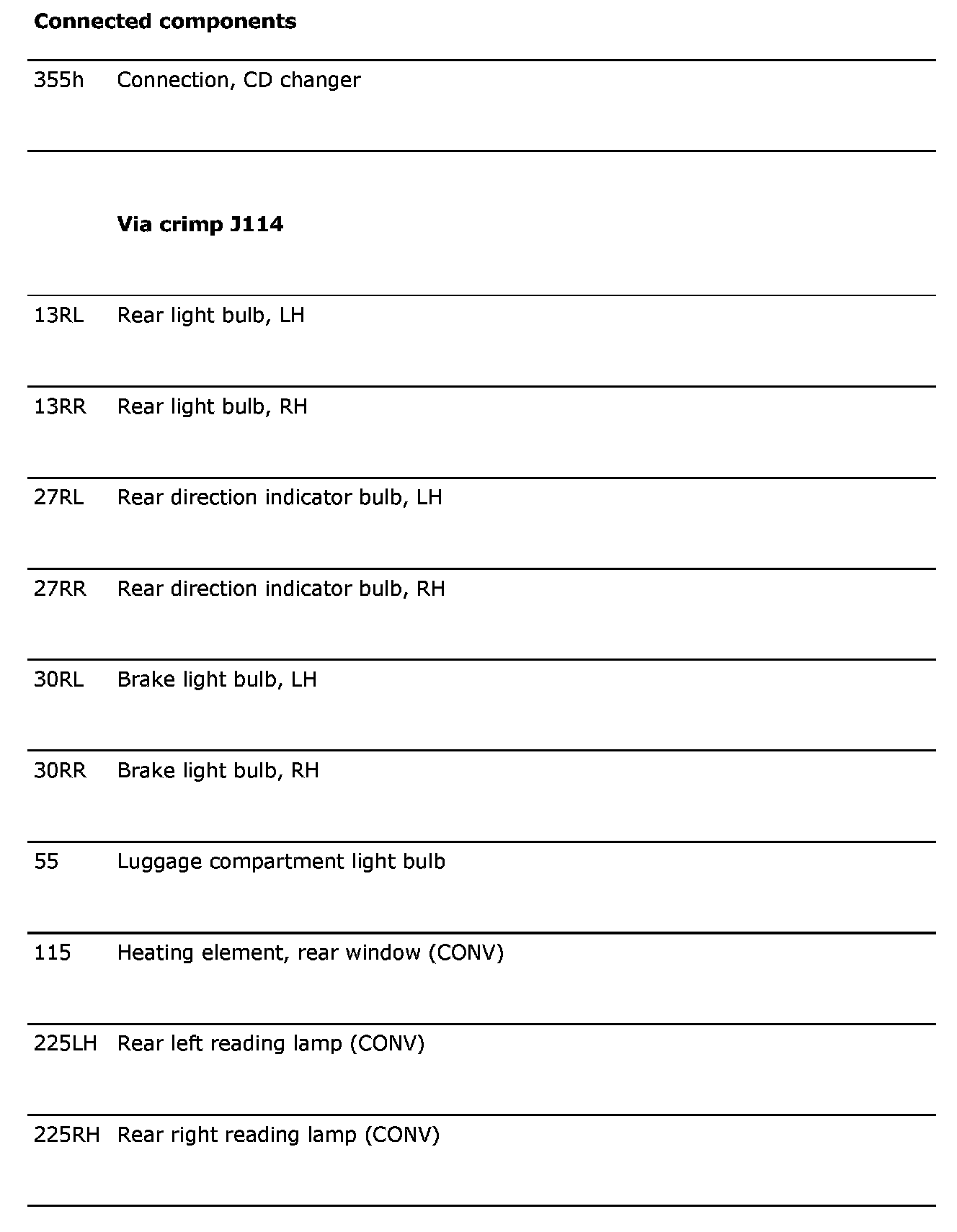

Connected Components Part 1:

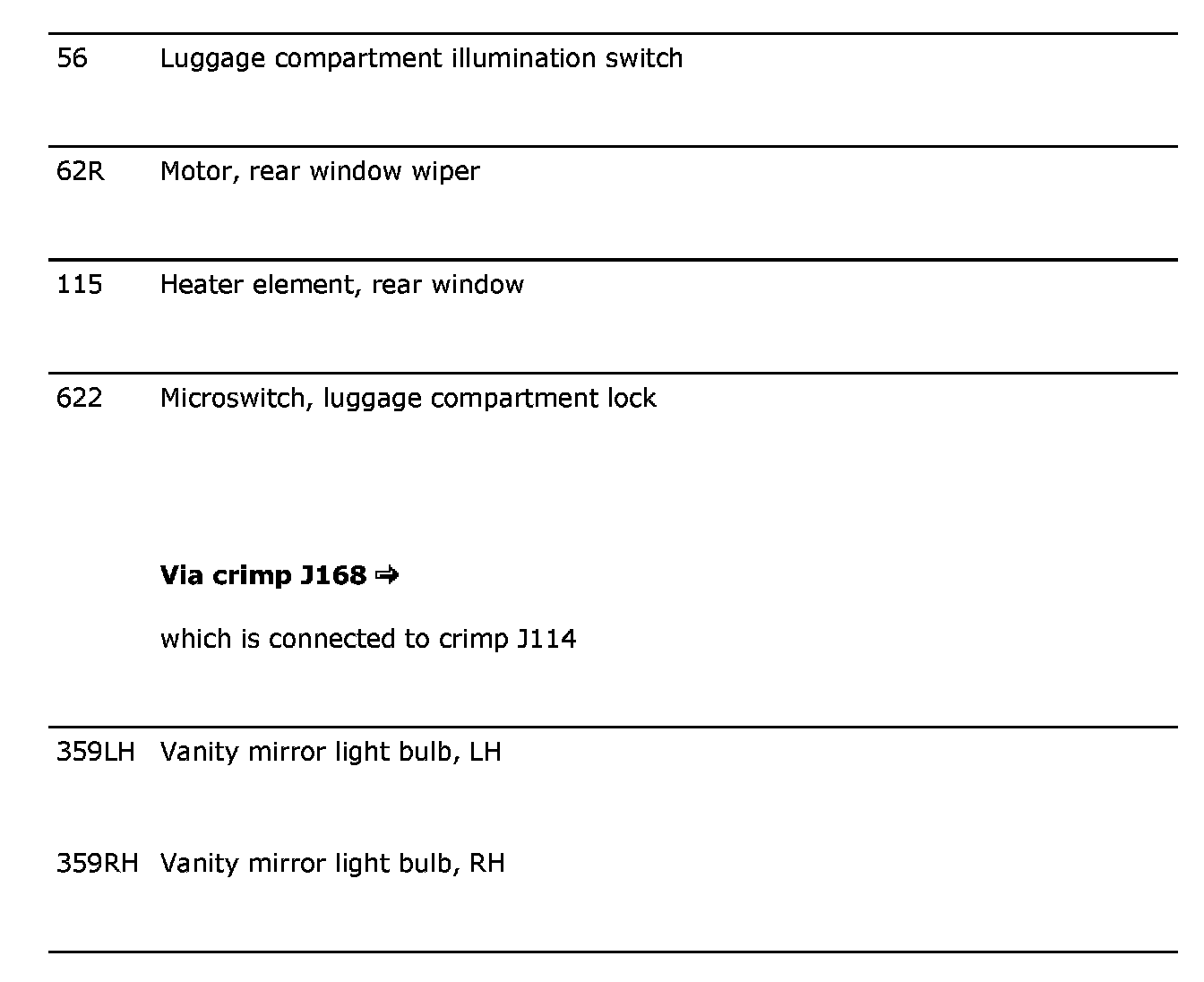

Connected Components Part 2:

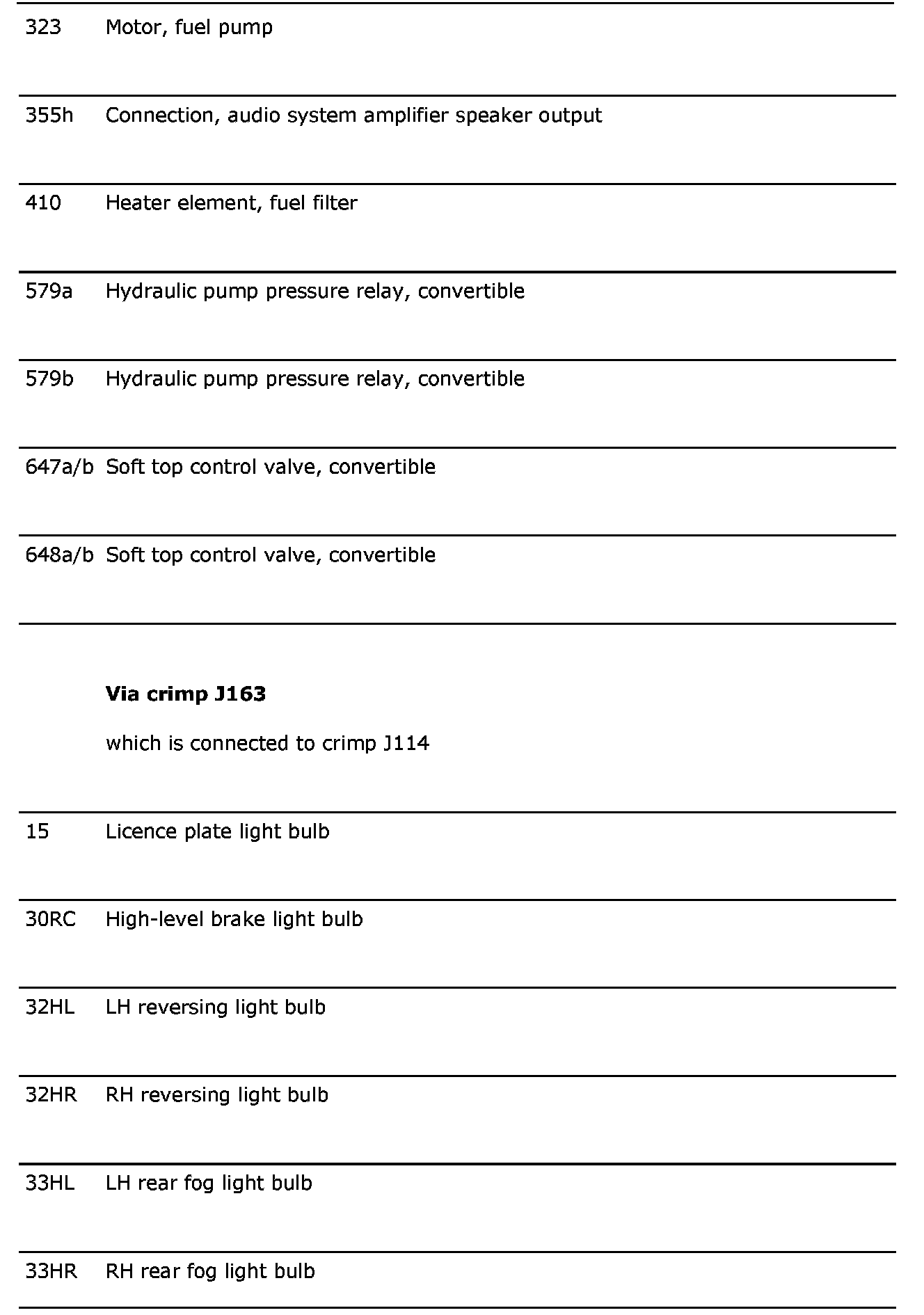

Connected Components Part 3:
