Horn: Service and Repair

Horn

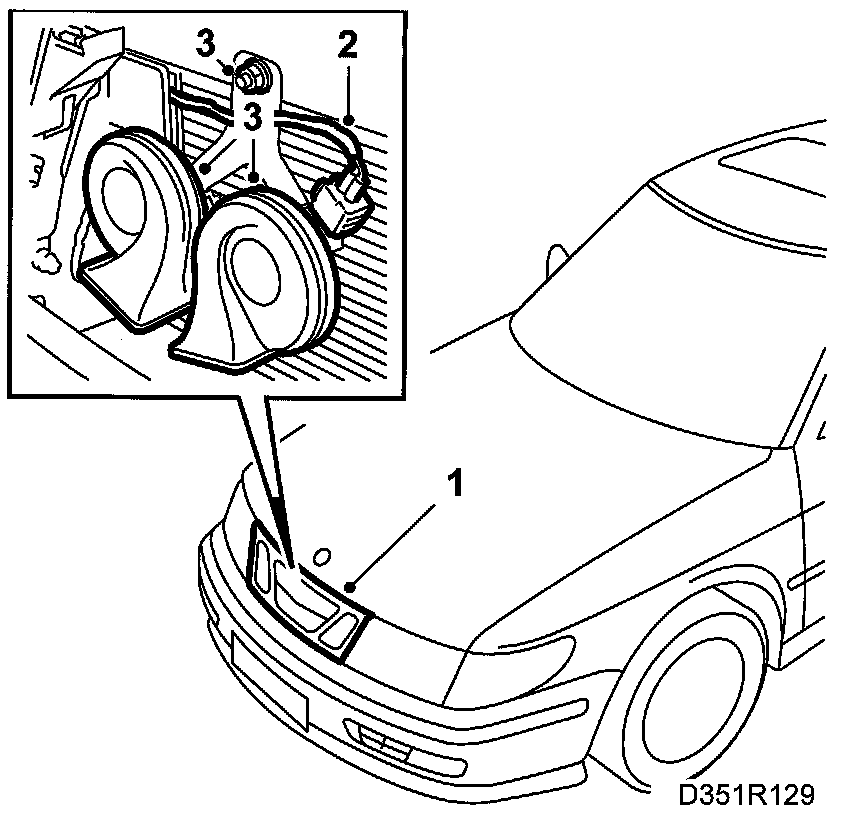

To remove







1. Remove the grille.
2. Unplug the horn connector.
3. Remove the horn retaining nut.

To fit







1. Check that the horn has the correct tone.
The high-tone horn is marked H and the low-tone L.
2. Fit the horn at a 45 degree angle downwards/outwards.
3. Plug in the horn connector.
4. Fit the grille.
