External Lighting

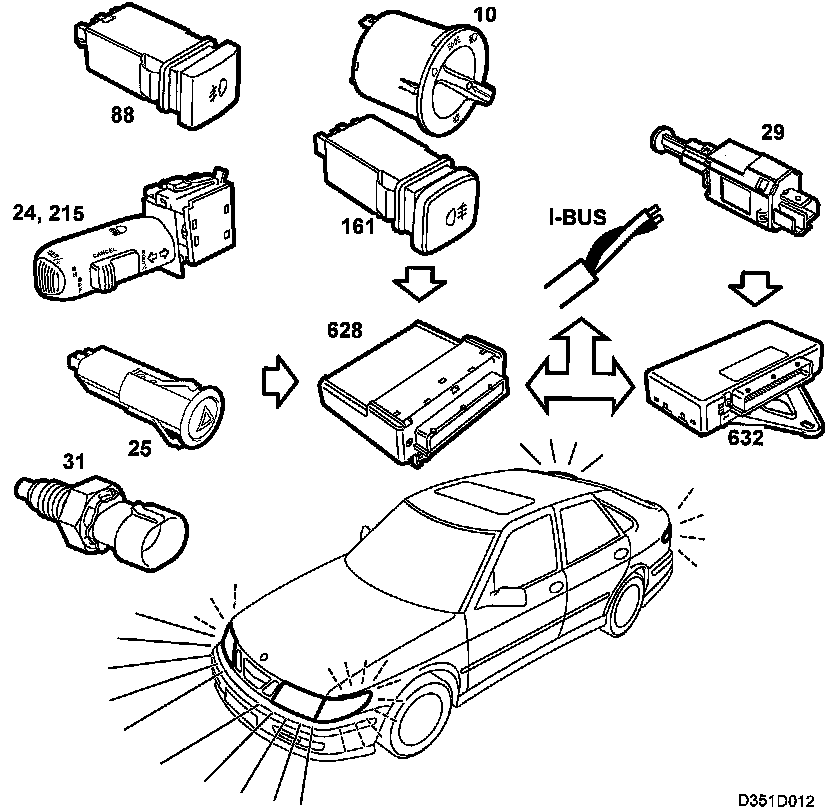

System Overview, External Lighting







- Switch, front fog lights (88)
- Light switch (10)
- Switch, rear fog lights (161)
- Dipswitch (24. 215)
- Reversing-light switch (31)
- Control module, DICE (628)
- Control module, TWICE (632)
- Brake light switch (29)
- Hazard flashers (25)
