Rear Interior Lighting, Convertible

Rear Interior Lighting, Convertible

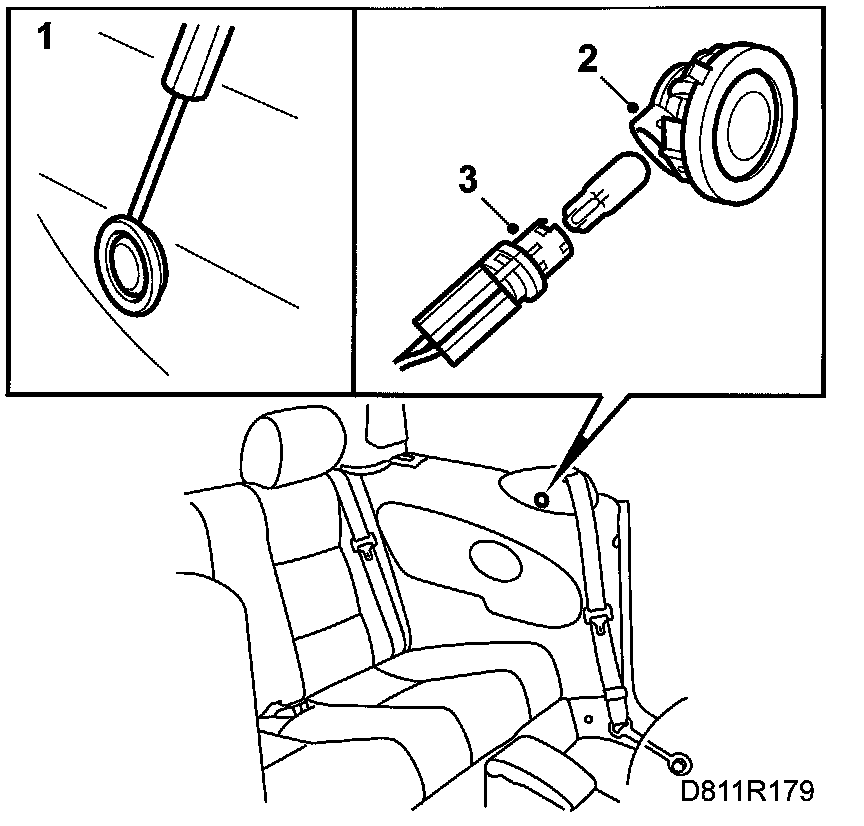

To remove







1. Loosen the lamp by carefully prising it loose with a small screwdriver. Do not damage the belt guide cover.
2. Detach the lamp lens from the bayonet fitting and retrieve the bulb.
3. Unplug the connector and remove the lamp socket.

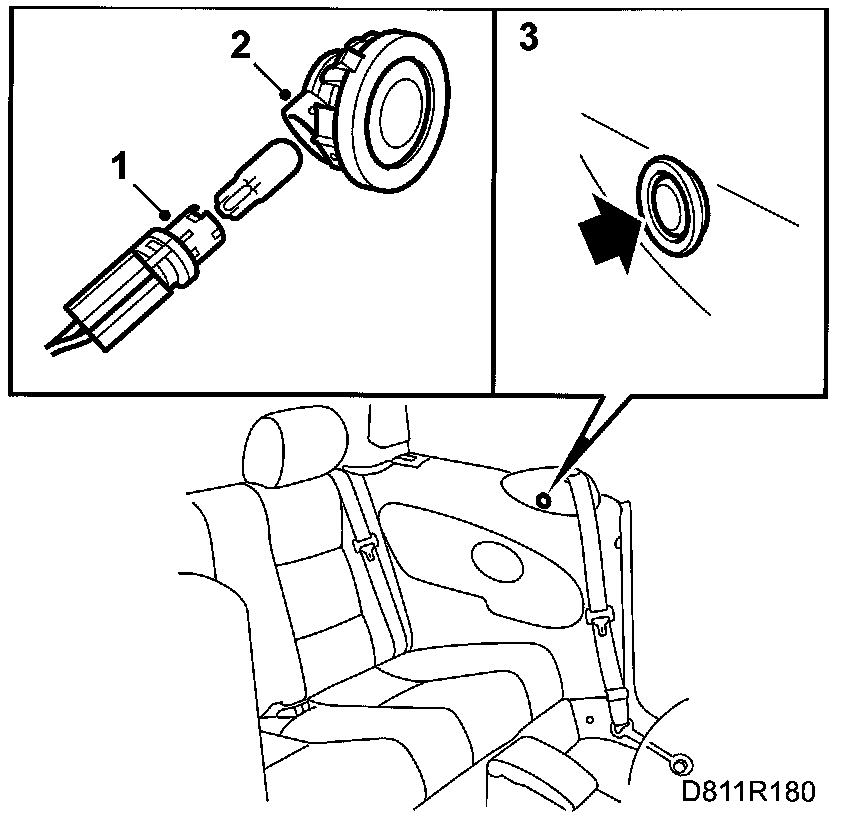

To fit







1. Plug in the connector.
2. Put the bulb and lamp lens in place.
3. Put the lamp in place in the belt guide cover.
