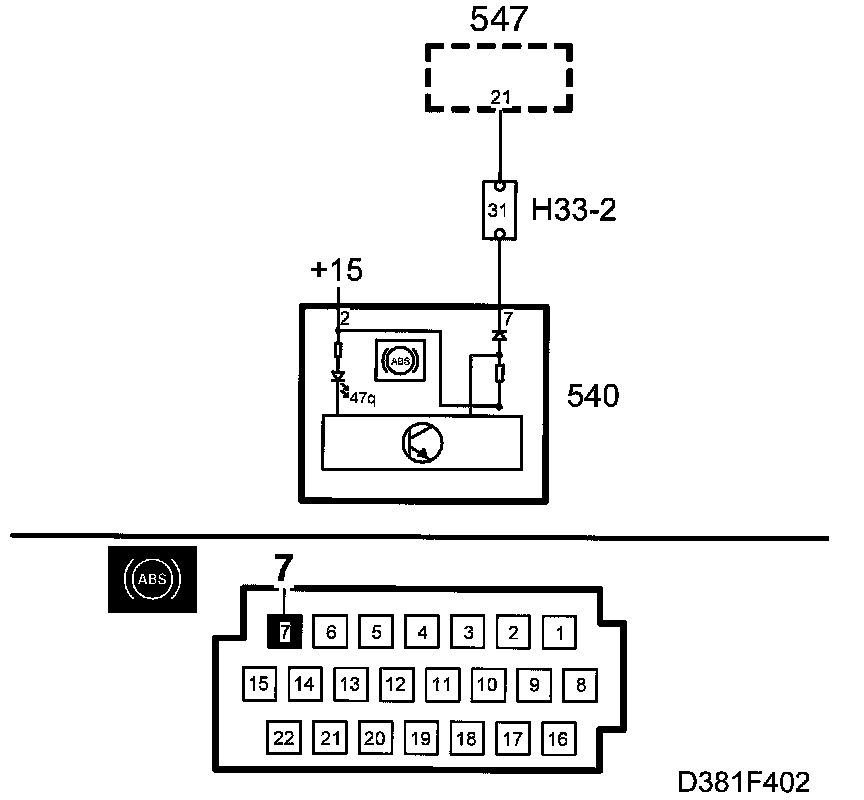

ABS Warning Lamp

ABS Warning Lamp







Fault symptoms
The ABS warning lamp is inoperative.

Diagnostic help
The ABS warning lamp can be turned on and off from the ABS control module by means of a diagnostic tool activation command.

Check the wiring harness
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic tool during the test.
