Washer Fluid Level Sensor

Washer Fluid Level Sensor

To remove







1. Empty the washer fluid reservoir and raise the car.

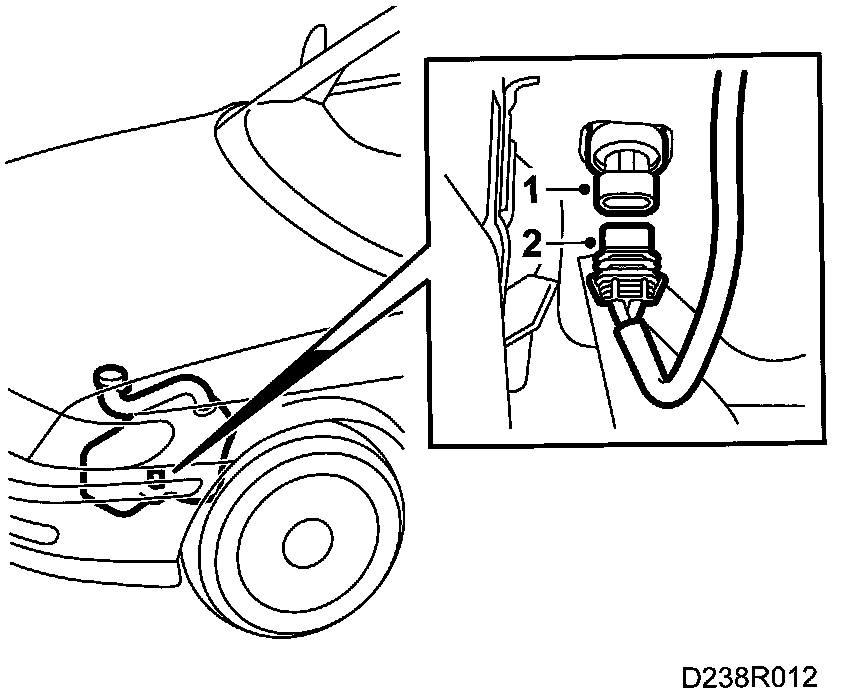

2. Unplug the level sensor connector.
3. Withdraw the level sensor from the washer fluid reservoir.

To fit







1. Press the level sensor into the washer fluid reservoir with the float hanging down.
2. Plug in the level sensor connector.
3. Lower the car and top up with washer fluid.
