Steering Wheel Controls

Steering Wheel Controls

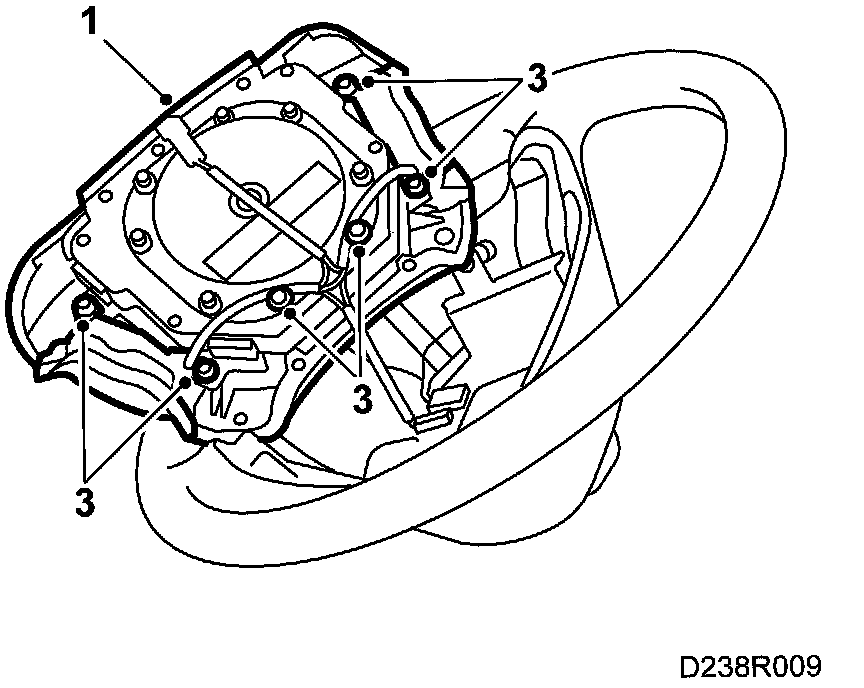

To remove







WARNING: Read Group 8:6 Airbag (SRS), Technical Description, "Safety and handling instructions" before commencing work.

1. Remove the airbag on the driver's side.
2. Unplug the connector for the steering wheel controls.
3. Remove the steering wheel controls.

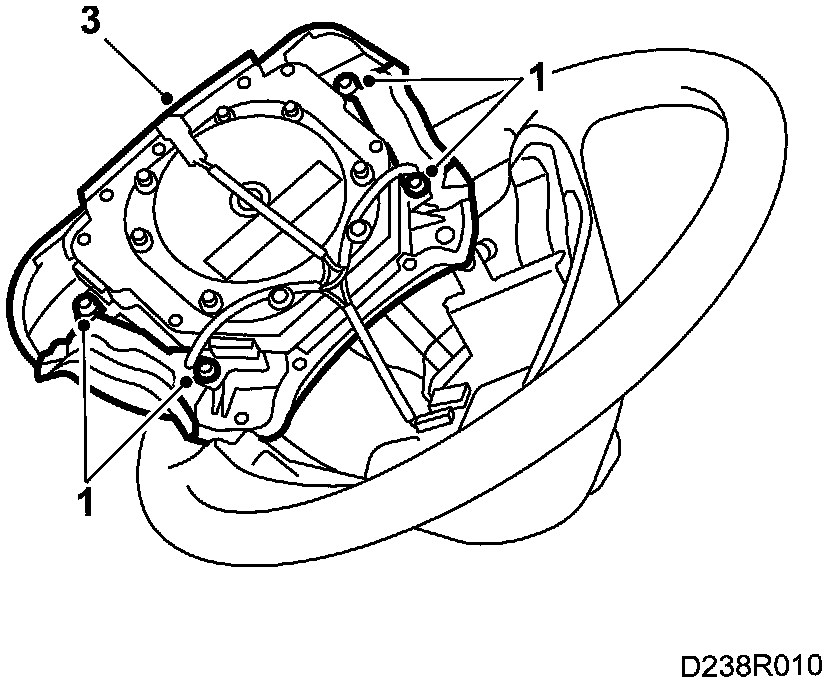

To fit







WARNING: Read Group 8:6 Airbag (SRS), Technical Description, "Safety and handling instructions" before commencing work.

1. Fit the steering wheel controls.
2. Plug in the connector for the steering wheel controls.
3. Refit the airbag.
