Rheostat

Rheostat

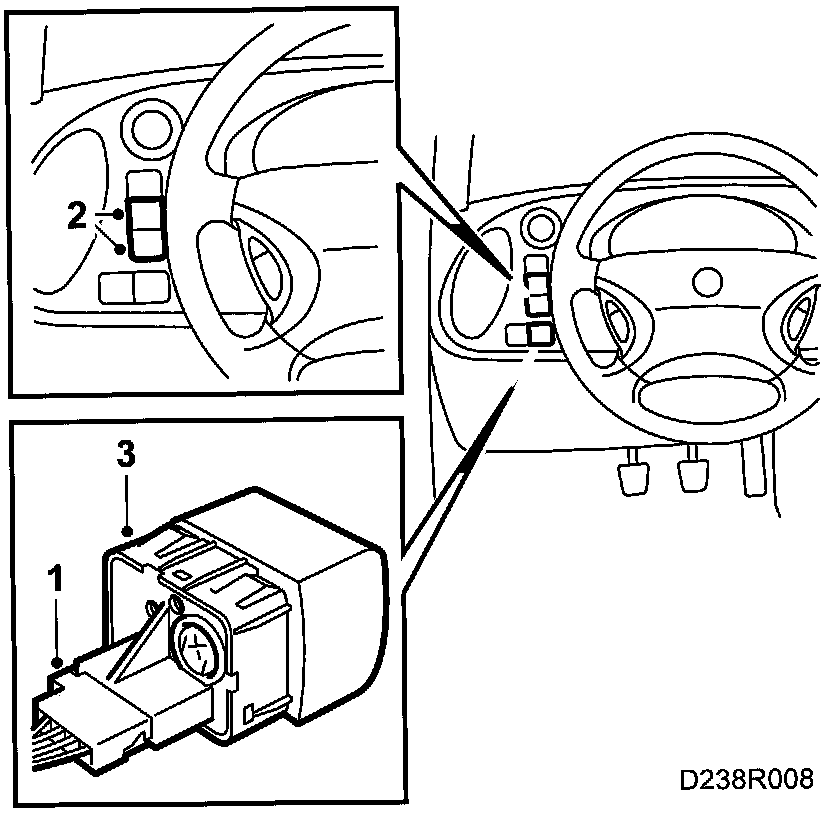

To remove







1. Press in the fog light button and press out the blind/extra light switch.
2. Press out the rheostat from behind through the hole for the blind/extra light switch.
3. Unplug the rheostat connector.

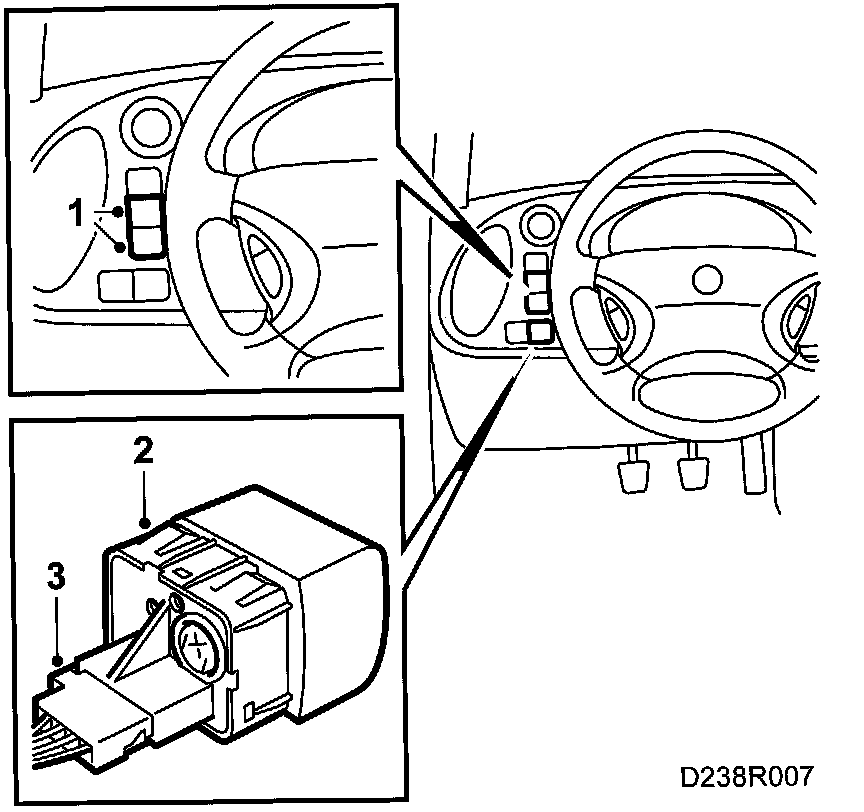

To fit







1. Plug in the rheostat connector.
2. Fit the blind/extra light switch.
3. Fit the rheostat.

Light bulbs
1. Remove the rheostat.
2. Undo the lamp holder.
3. Change the bulb
