Horn Relay

Horn Relay

To remove

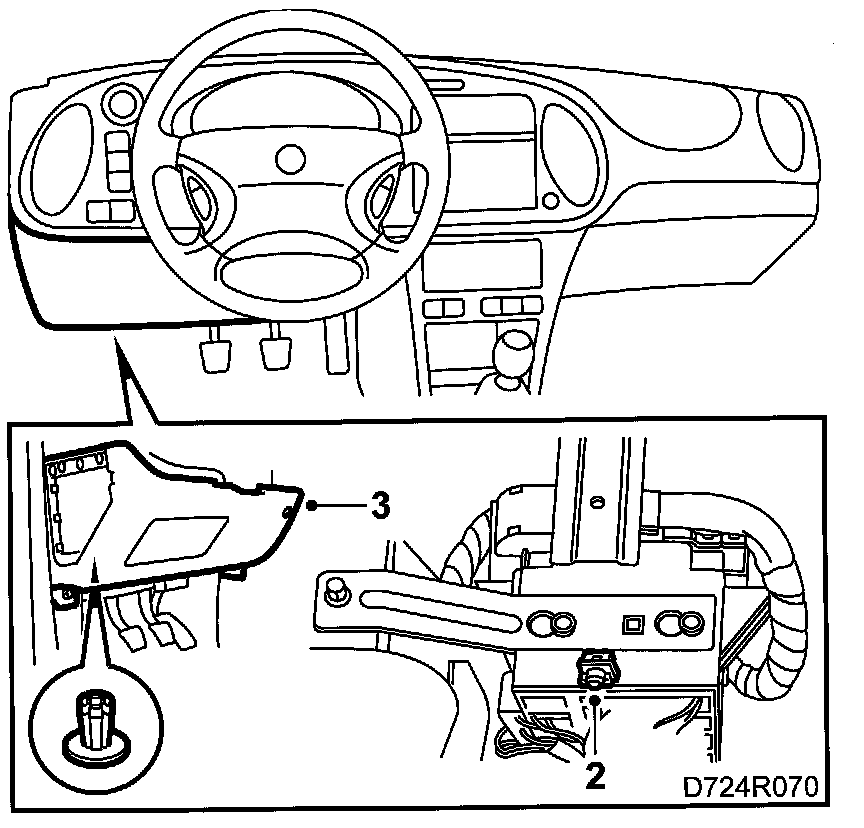

1. Remove the cover for the knee shield.







2. Undo the screw securing the relay retainer.
3. Lower the relay retainer.







4. Remove the horn relay.

To fit







1. Spray the contacts in the relay retainer with Kontakt 61 (part no. 30 04 520) and fit the relay.

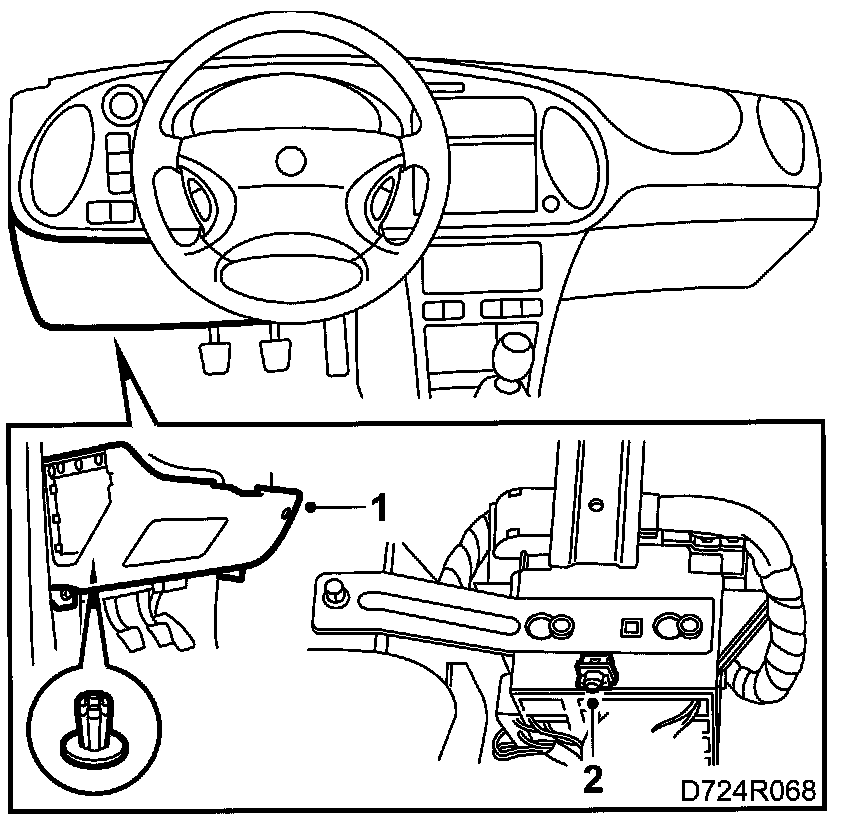

2. Reposition the relay retainer and tighten the screws.
3. Fit the cover for the knee shield.
