Control Module (SID Unit)

Control Module (SID Unit)

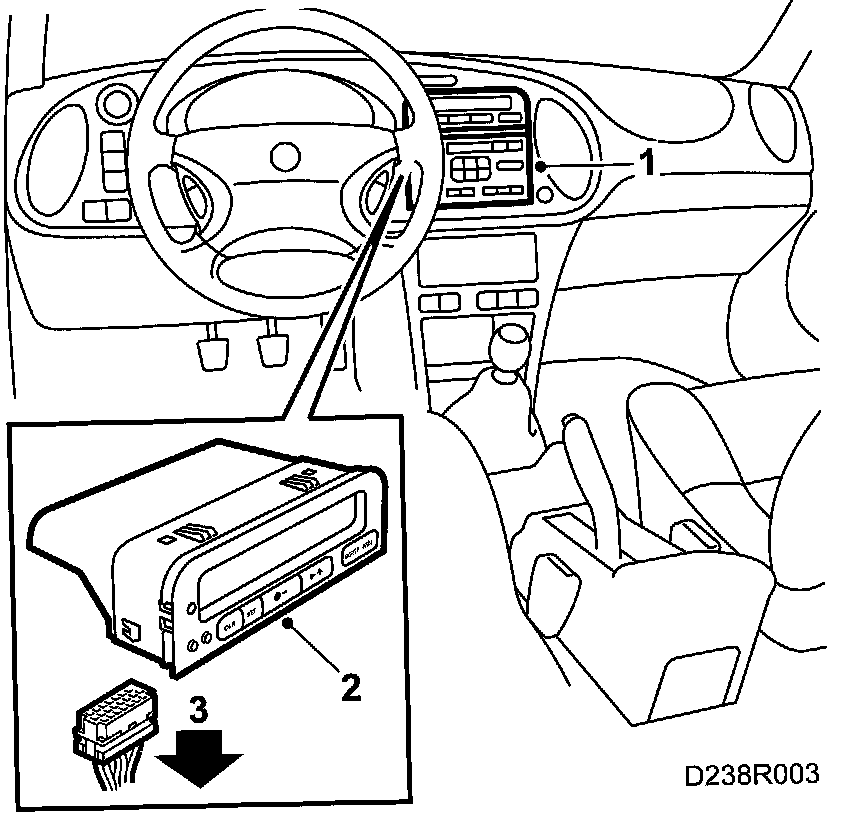

To remove
1. Remove the main unit (audio) or radio.
2. Push the SID unit out from behind.
3. Unplug the connector from the SID unit.

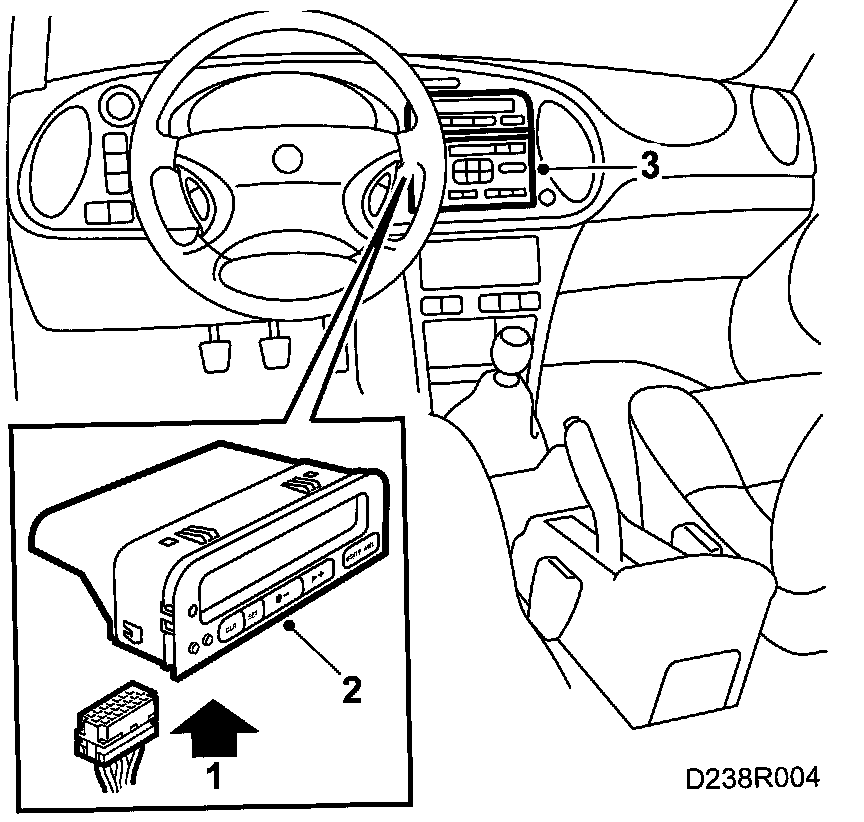

To fit







1. Plug in the SID unit connector.
2. Insert the SID unit.
3. Refit the main unit (audio) or radio.
4. Spare part programming must be carried out after changing the SID unit. Follow the instructions given in the diagnostic tool menu "Programming".

NOTE: Reset the SID unit clock.

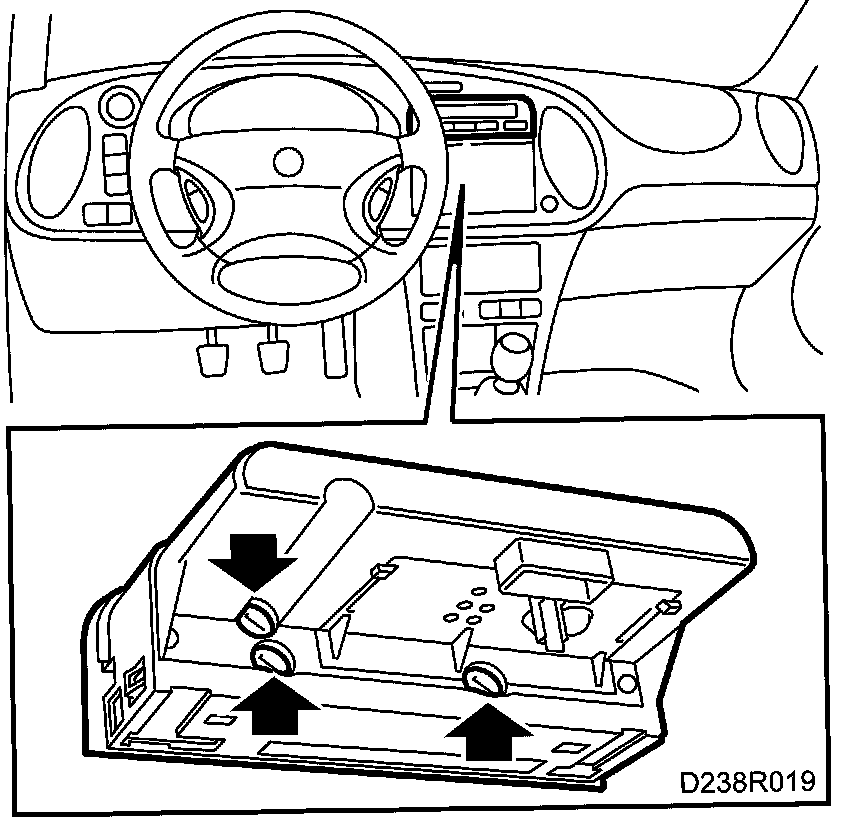

Lamp bulbs







NOTE: It is recommended to replace all the bulbs in the SID unit at the same time as they all have the same life expectancy.

1. Remove the SID unit
2. Open the cover.
3. Replace the bulbs, 4+2.

NOTE: Reset the SID unit clock.

4. Spare part programming must be carried out after changing the SID unit. Follow the instructions given in the diagnostic tool menu "Programming".
