Instrument Panel, Gauges and Warning Indicators
>>
Driver/Vehicle Information Display
>>
Locations
>>
Ground Locations
>>

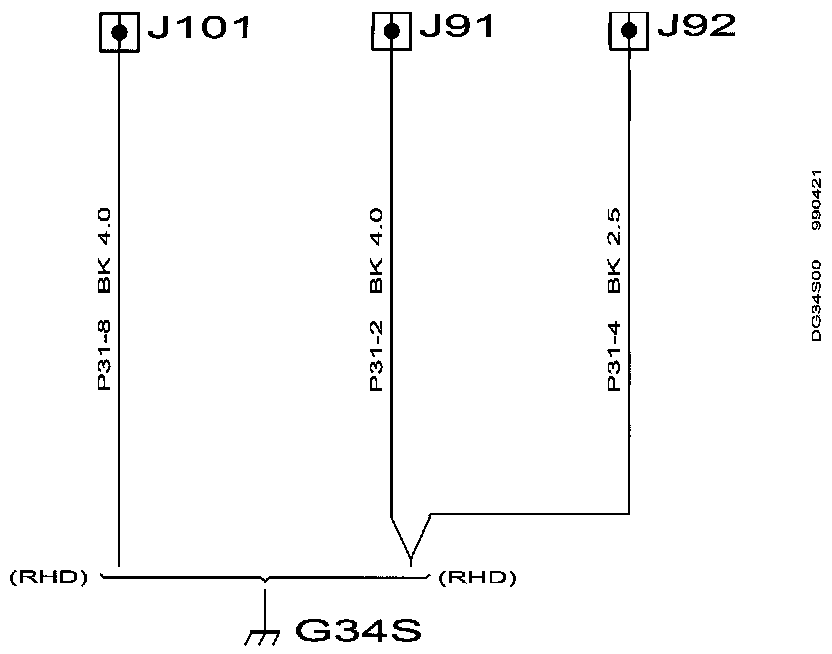

Grounding Point G34S
Grounding Point G34S
Grounding Point G34S

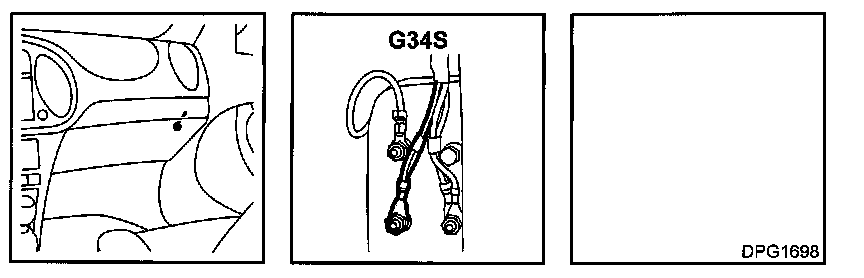

Location:
in cabin below right A-pillar.

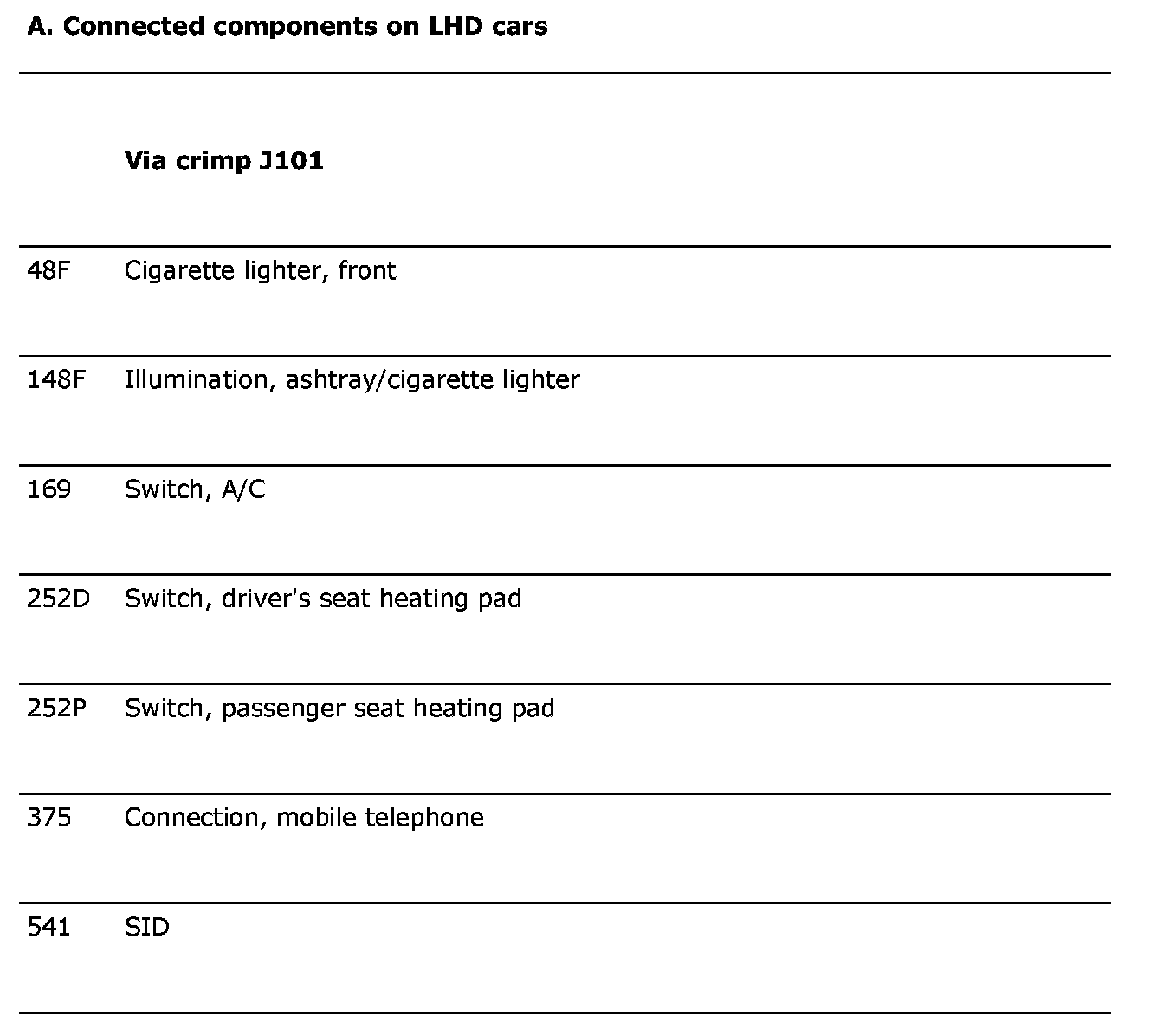

Connected Components:
