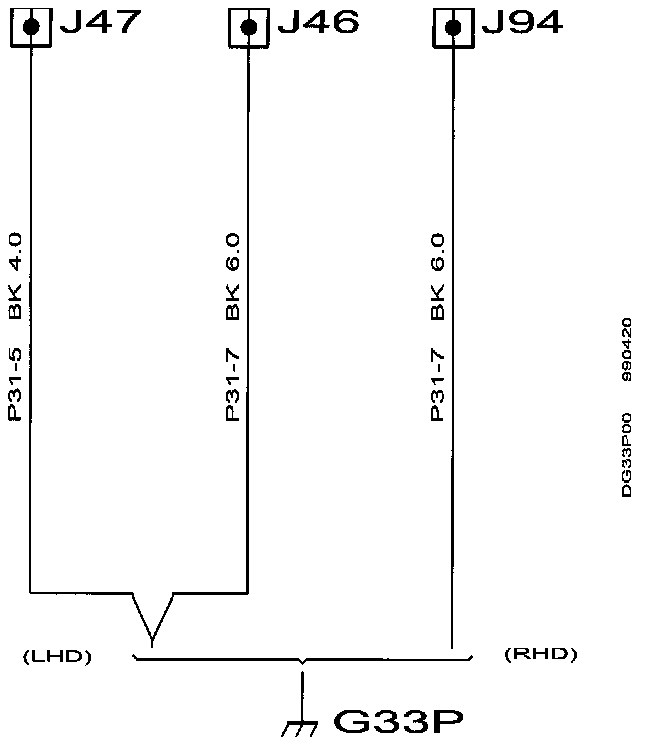

Grounding Point G33P



Grounding Point G33P

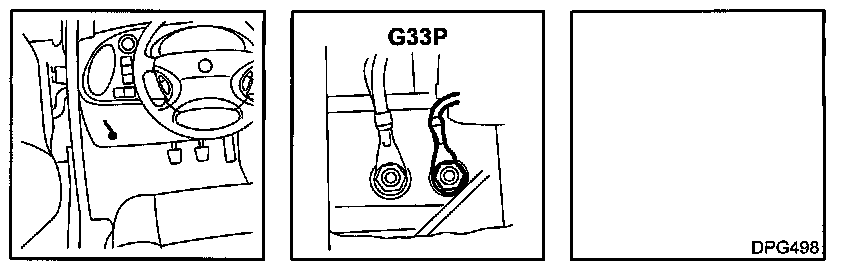

Location: in cabin below left A-pillar.

Cable marking: black adhesive tape.

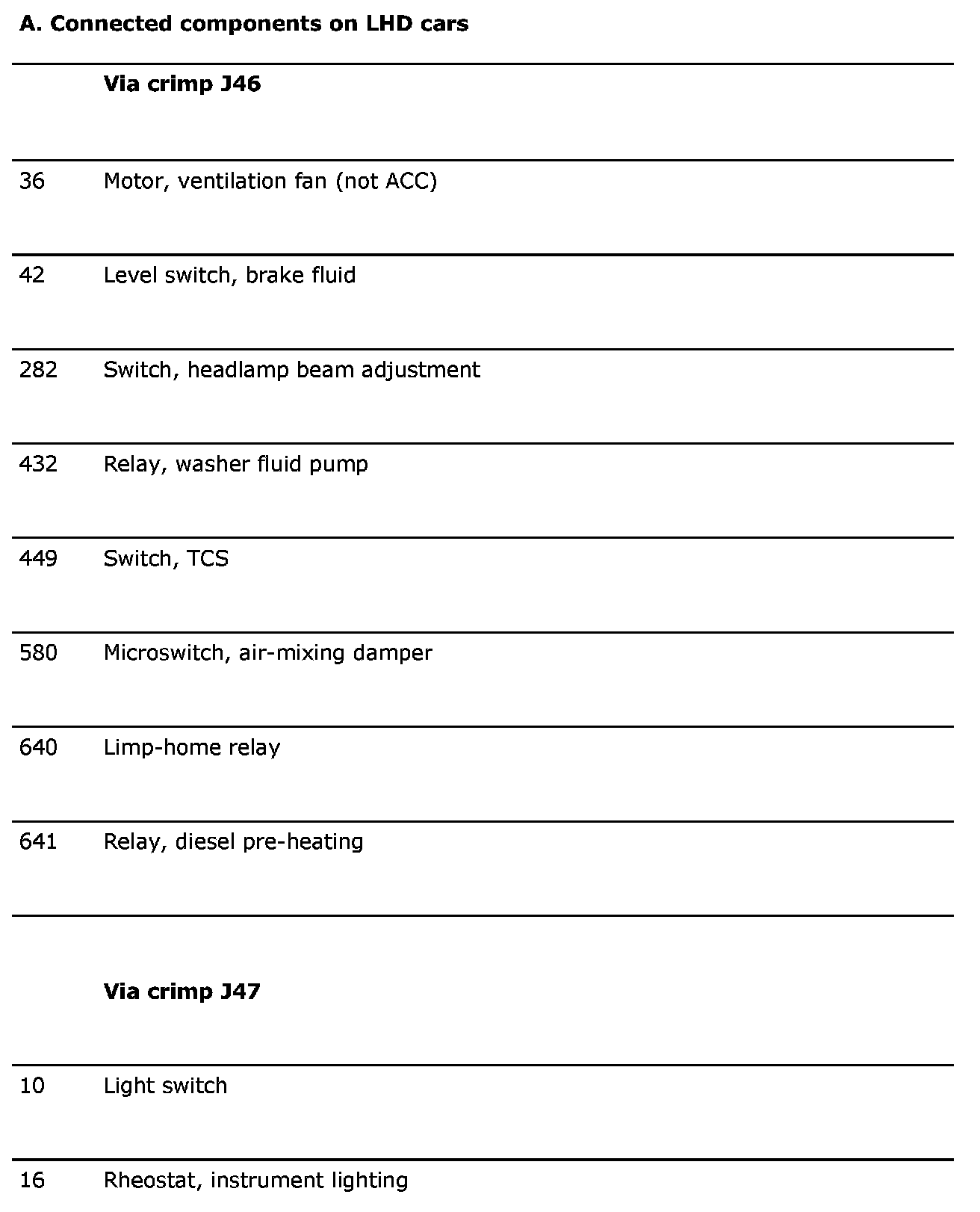

Connected Components Part 1:

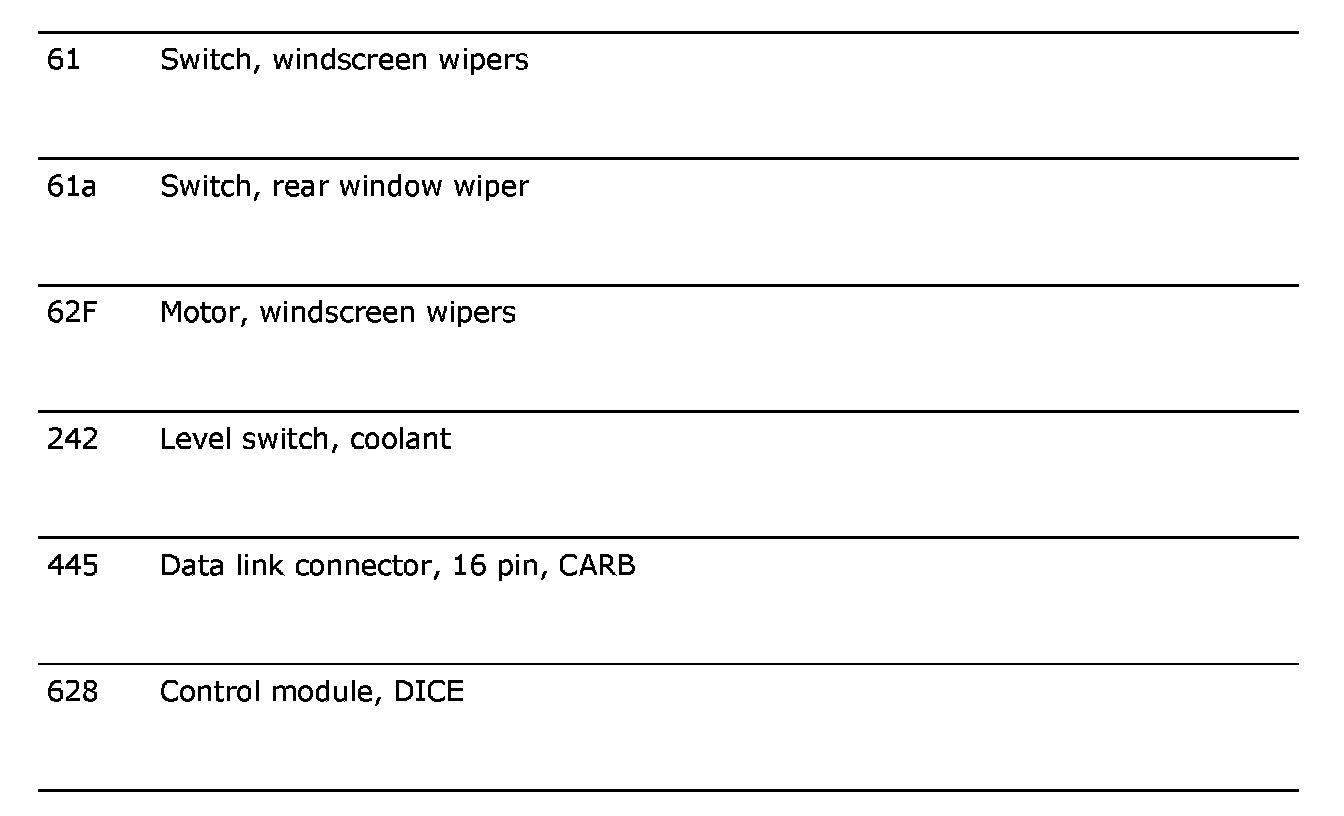

Connected Components Part 2:
