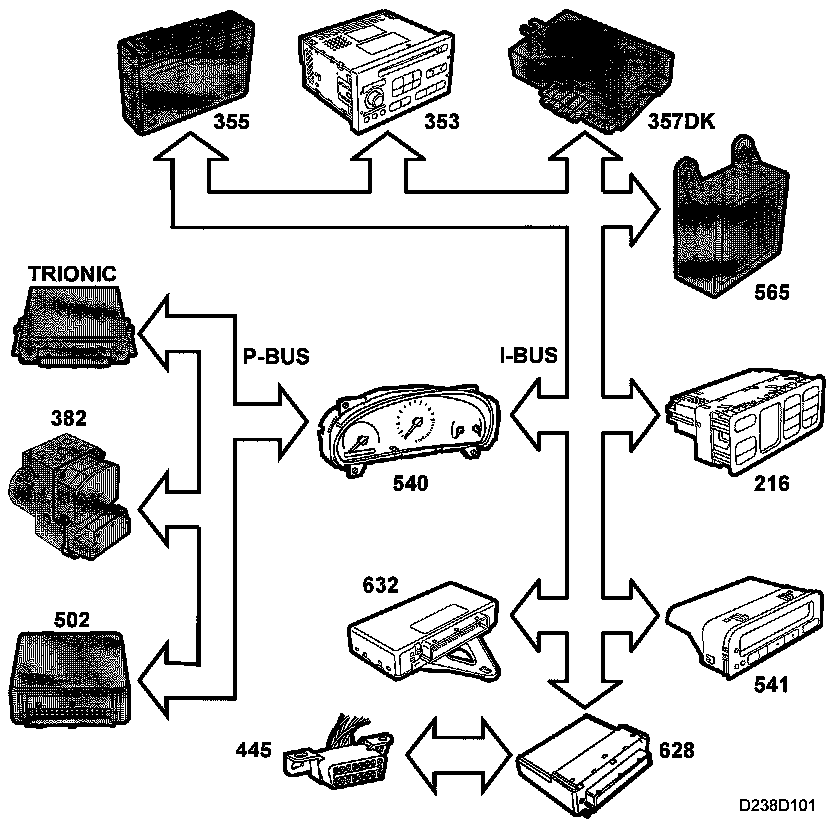

SID Unit Outputs, Bus

SID Unit Outputs, Bus







- Info Disp Lamp (ON/OFF) used by MIU (540).
- Unit (degree C/degree F) used by ACC (216).
- Language (Swedish, English, German, French, Italian, Spanish) used by ACC (216).
- Steering wheel controls used by Audio (353).
- Rheostat value (%) used by Audio (353), ACC (216), DICE (632), MIU (540).
- Night Panel (ON/OFF) used by Audio (353), ACC (216), DICE (632), MIU (540).
- Display lighting (%) used by ACC (216), MIU (540).
- Light intensity inside vehicle (Lux) used by MIU (540).
- Engine Off Time (Min) used by ACC (216).
- Outdoor temperature (degree C/degree F) used by ACC (216), TWICE (632), DICE (628).
- Glass breakage sensor (ON/OFF) used by TWICE (632).
- Diagnostics communication.
