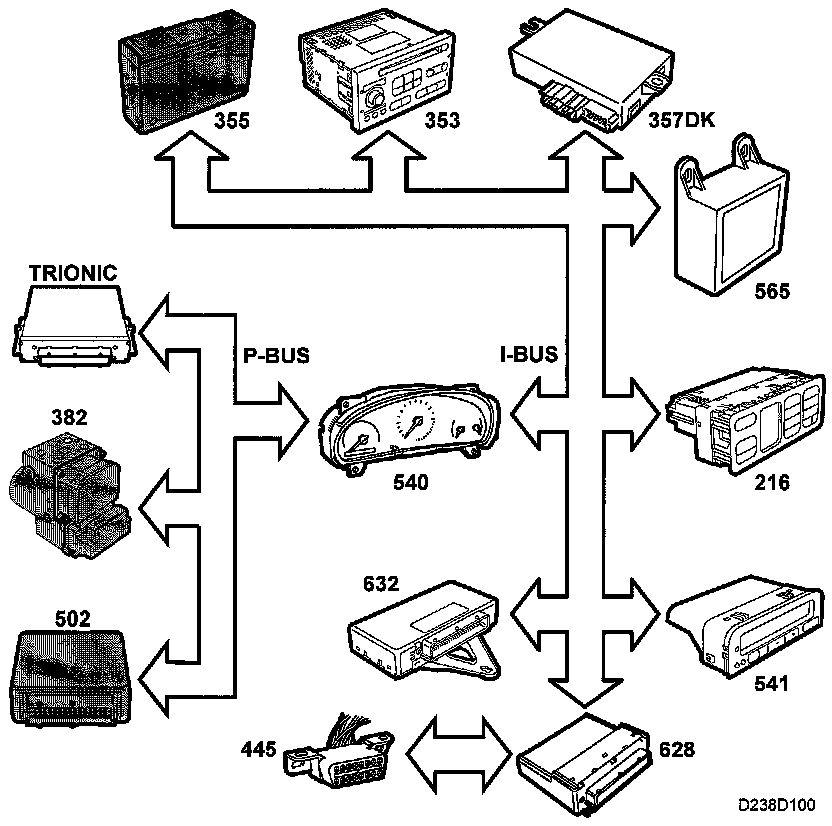

SID Unit Inputs, Bus

SID Unit Inputs, Bus







- Position lights (ON/OFF) from DICE (628)
- Rear Fog Light Broken (YES/NO) from DICE (628)
- Direction Indicators Left (ON/OFF) from DICE (628)
- Direction Indicators Right (ON/OFF) from DICE (628)
- Sound from DICE (628), TWICE (632), ACC (216), AUDIO (353), MIU (540), PSM (357dK), STC (565)
- Left Rear Light Broken (YES/NO) from TWICE (632)
- Right Rear Light Broken (YES/NO) from TWICE (632)
- Left Brake Light Broken (YES/NO) from TWICE (632)
- Right Brake Light Broken (YES/NO) from TWICE (632)
- High Level Brake Light Broken (YES/NO) from TWICE (632)
- Brake Lights (ON/OFF) from TWICE (632)
- Horn (ms) from TWICE (632)
- Text message from TWICE (632), ACC (216), AUDIO (353), MIU (540), STC (565), Trionic, PSG 16
- RDS time from AUDIO (353)
- RDS date from AUDIO (353)
- RDS month from AUDIO (353)
- Vehicle speed (km/h, mph) from MIU (540)
- Fuel level (litres) from MIU (540)
- Mileage (km, miles) from MIU (540)
- Engine Running (ON/OFF) from ACC (216)
- Diagnostics communication
