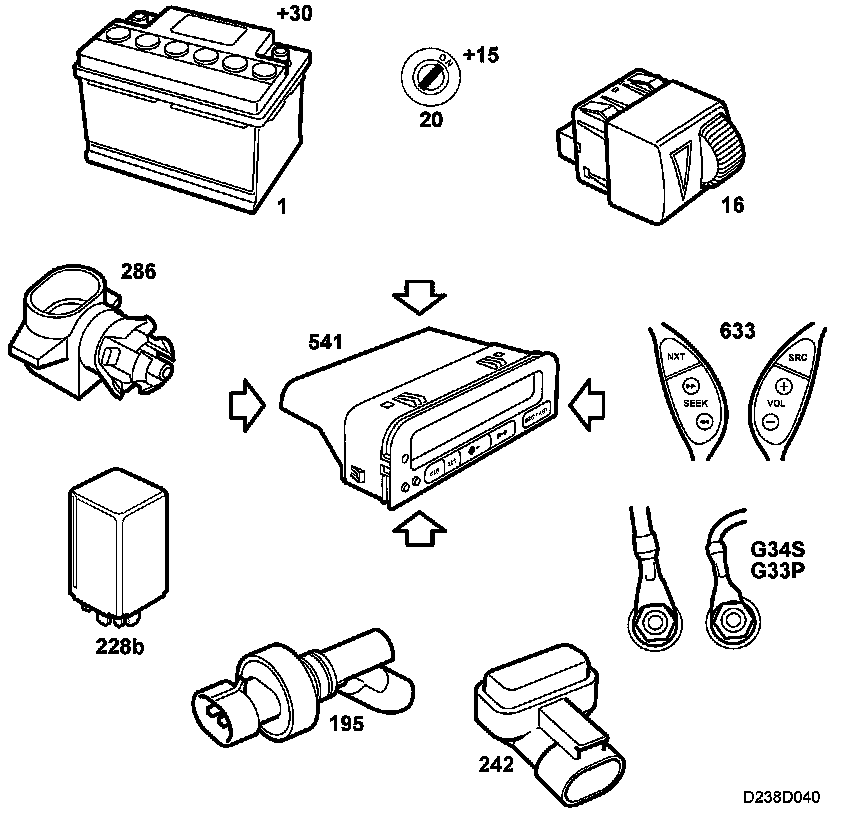

SID Unit Inputs

SID Unit Inputs







- Power supply (+30 circuit) (1)
- Power supply (+15 circuit) (20)
- Ground (G34S)
- Rheostat (16)
- Steering wheel controls (633)
- Engine coolant level (242)
- Washer fluid level (195)
- Filament monitor (228B)
- Temperature, outside air (286)
