SID Unit Ground



SID Unit Ground

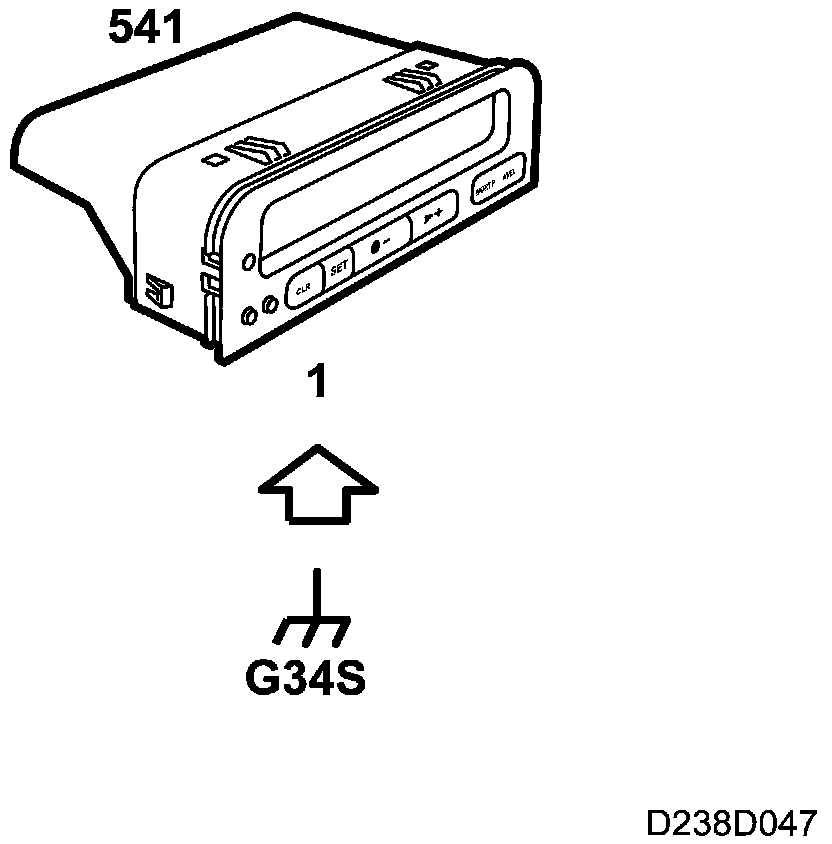

Ground connection
The SID unit is grounded via pin 1 at grounding point G34S.

Diagnostics
If there is no ground connection, the display will not be active and diagnostic communication will not be possible.

The SID unit will not generate a diagnostic trouble code if there is no ground connection.
