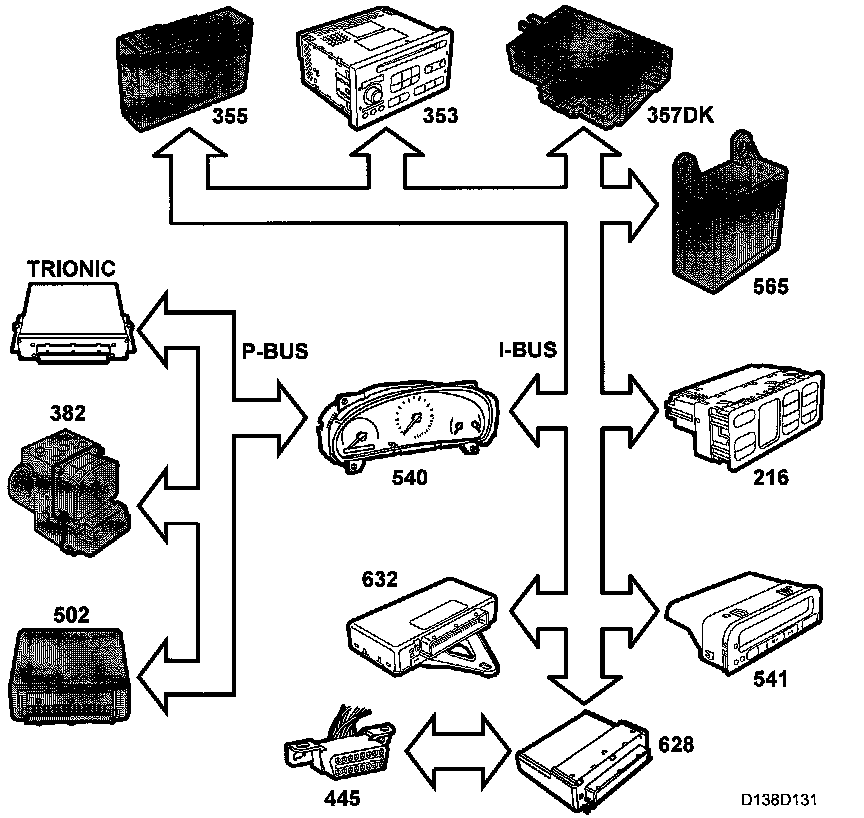

Control Module Outputs, Bus

Control Module Outputs, Bus

Cars with petrol engines







- Vehicle speed
- Sound is used by SID (541)
- Fuel consumed since start is used by SID (541).
- Fuel level is used by SID (541) and ECM
- Odometer reading is used by SID (541)
- Identification number is used by TWICE (632)
- Diagnostics communication (445)
