Ventilation Fan Not Functioning, ACC

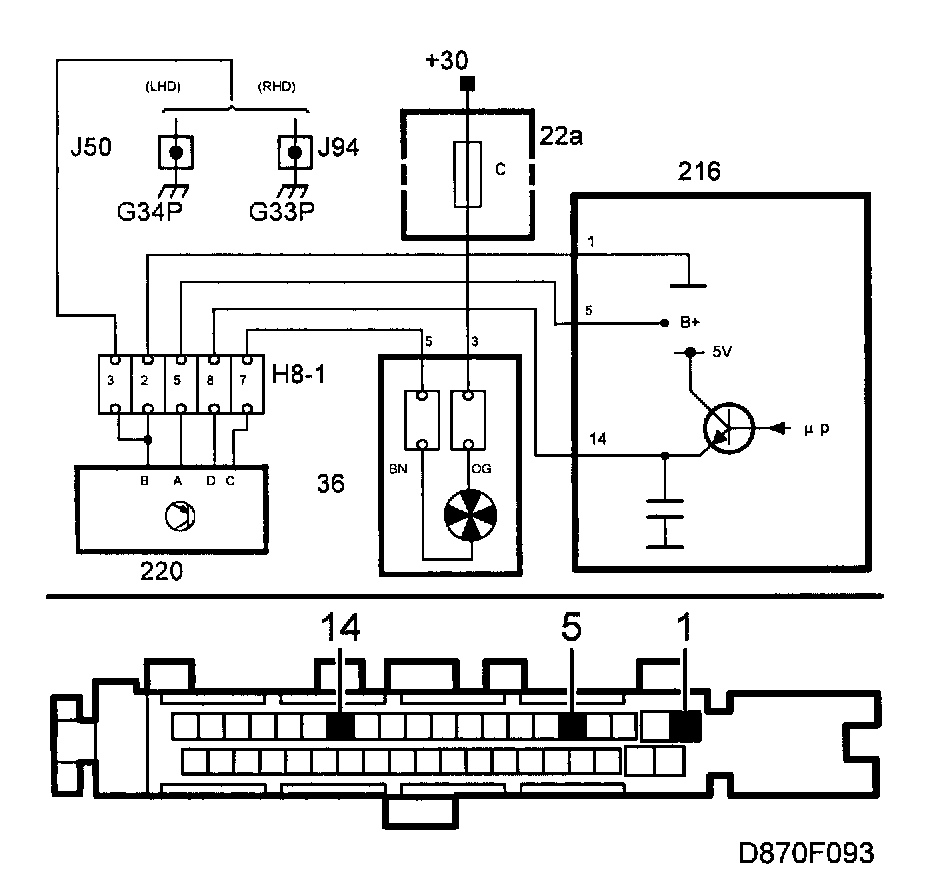

Ventilation Fan ACC Not Functioning

Fault symptom
Ventilation fan ACC not functioning

Diagnostic procedure
Ventilation fan shorted to ground.
Ventilation fan open circuit or shorted to B+.
