Scan Tool Testing and Procedures

Tech 2 Menu Structure

Diagnostic trouble codes (DTC)
Test Valves/Activate
Adjusting
Programming
Snapshot
System information

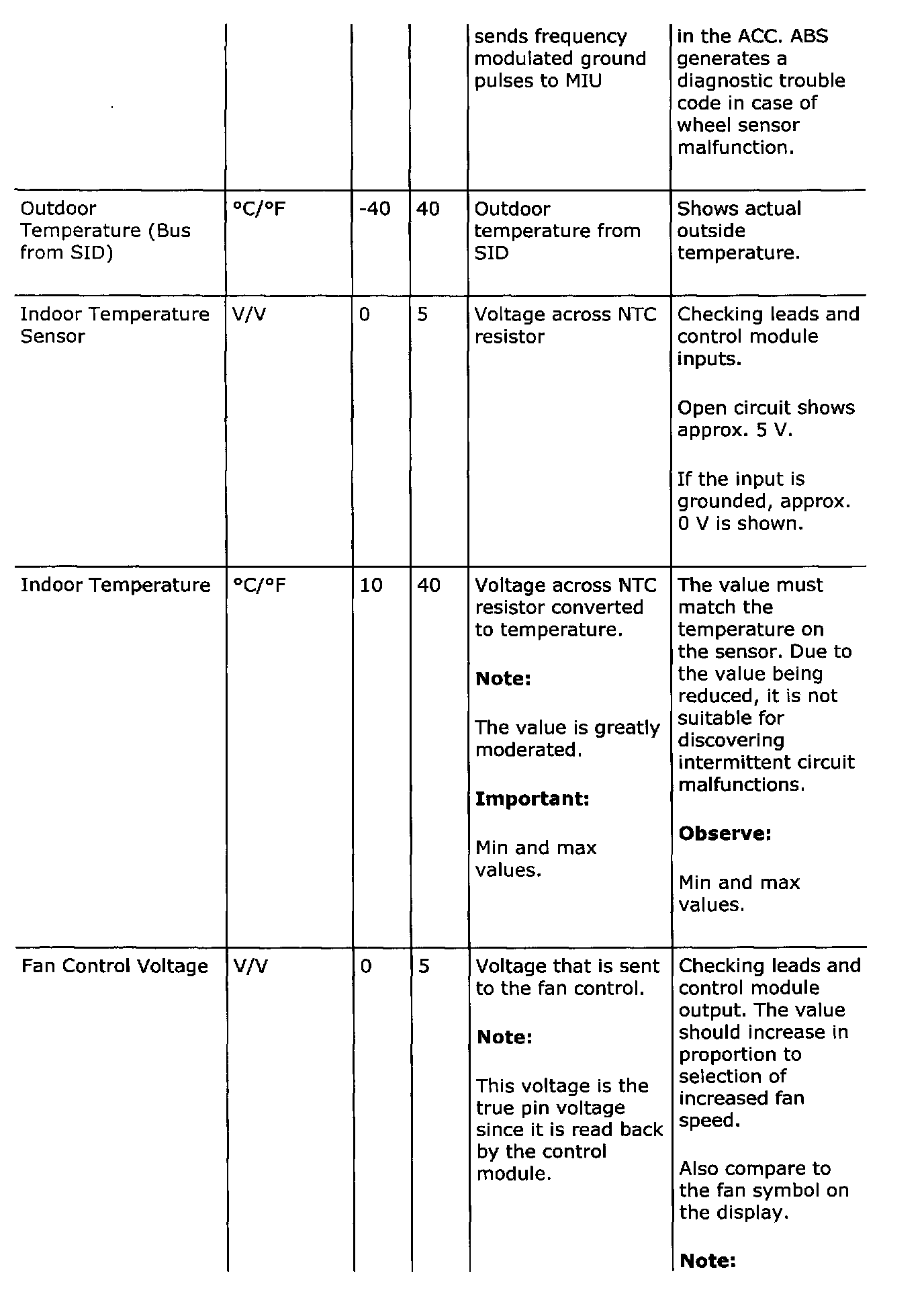

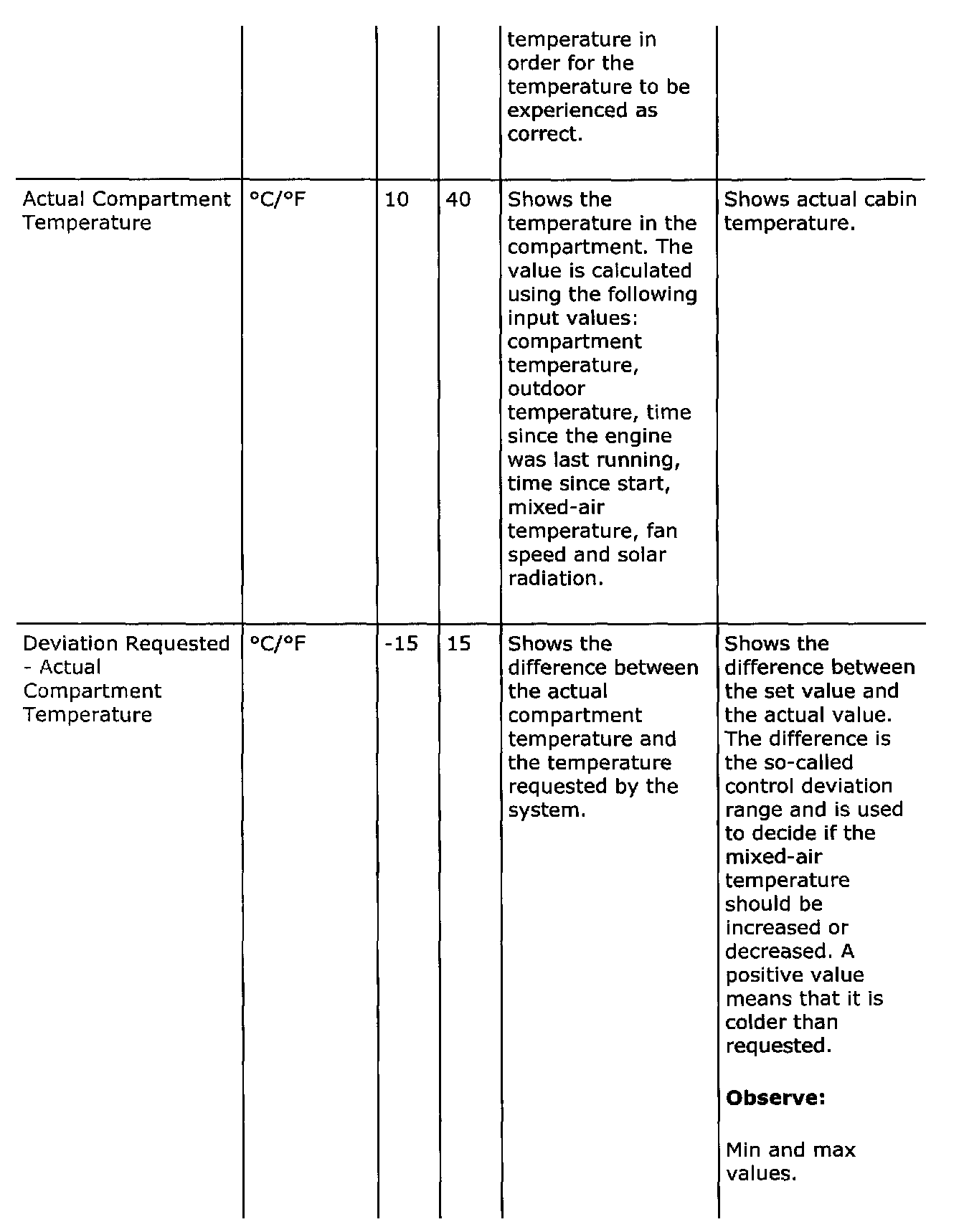

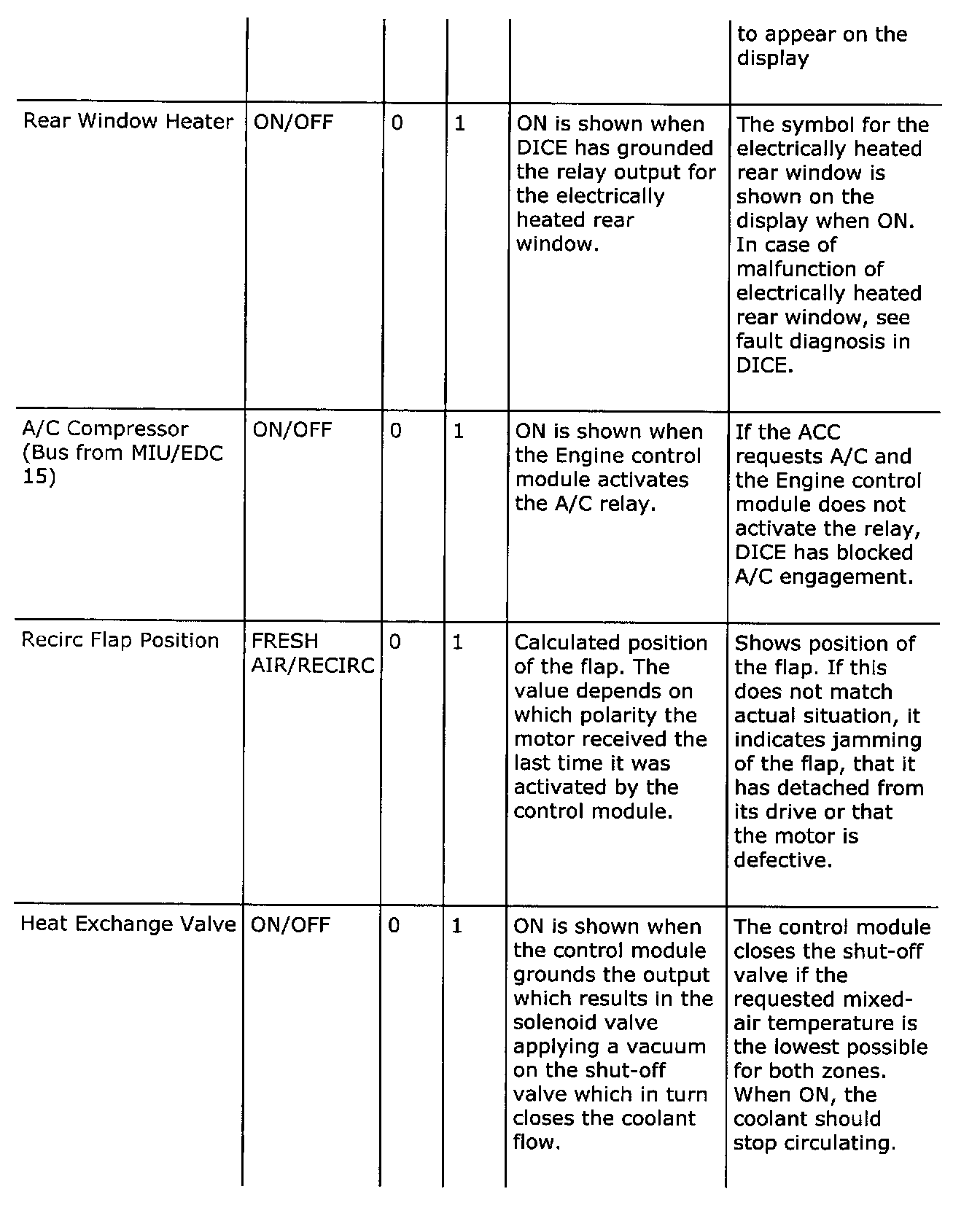

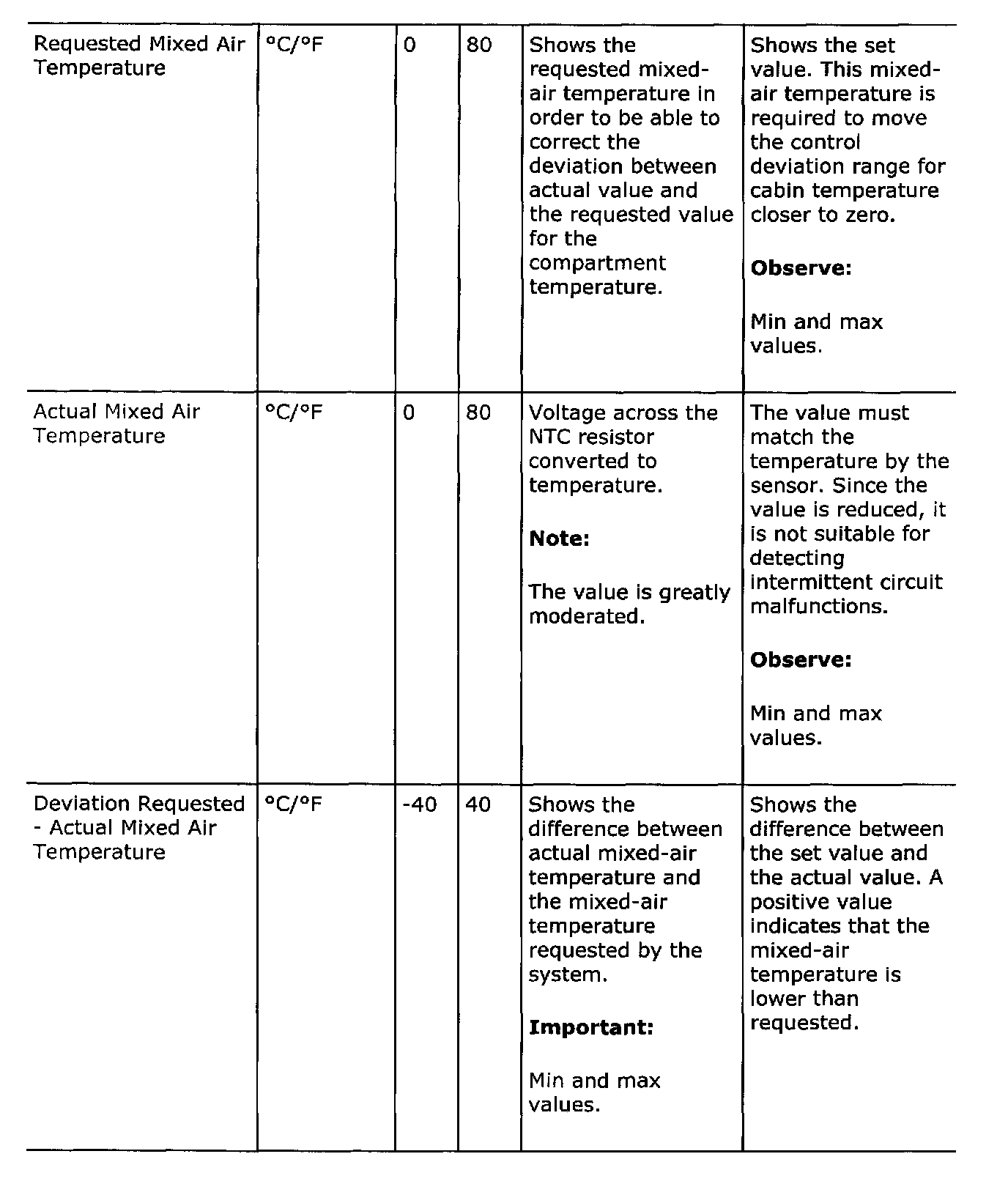

Menu "Test values"

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

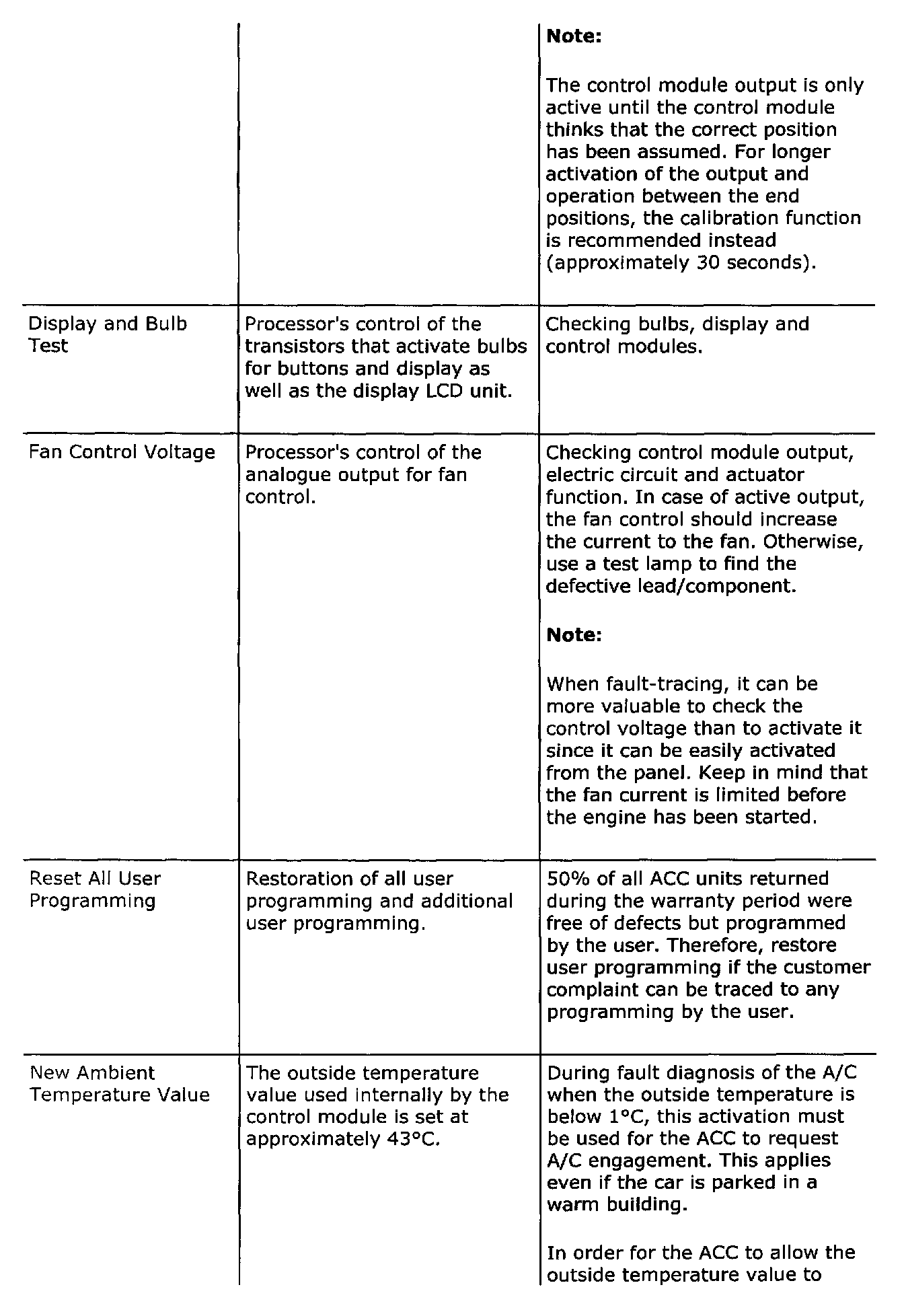

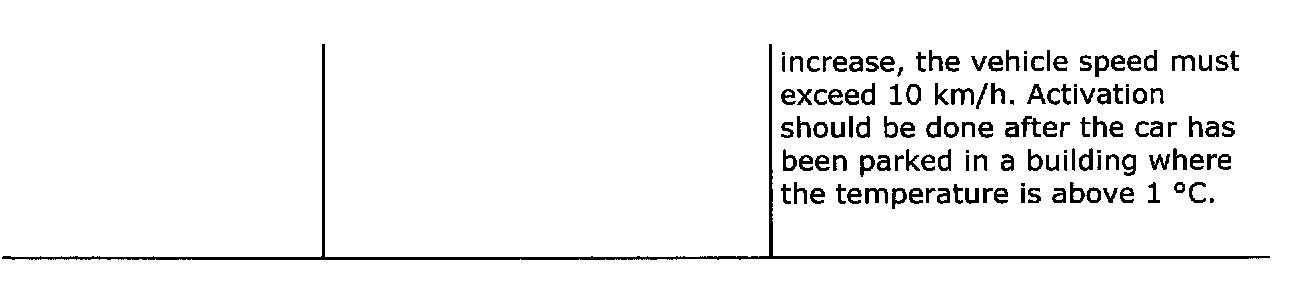

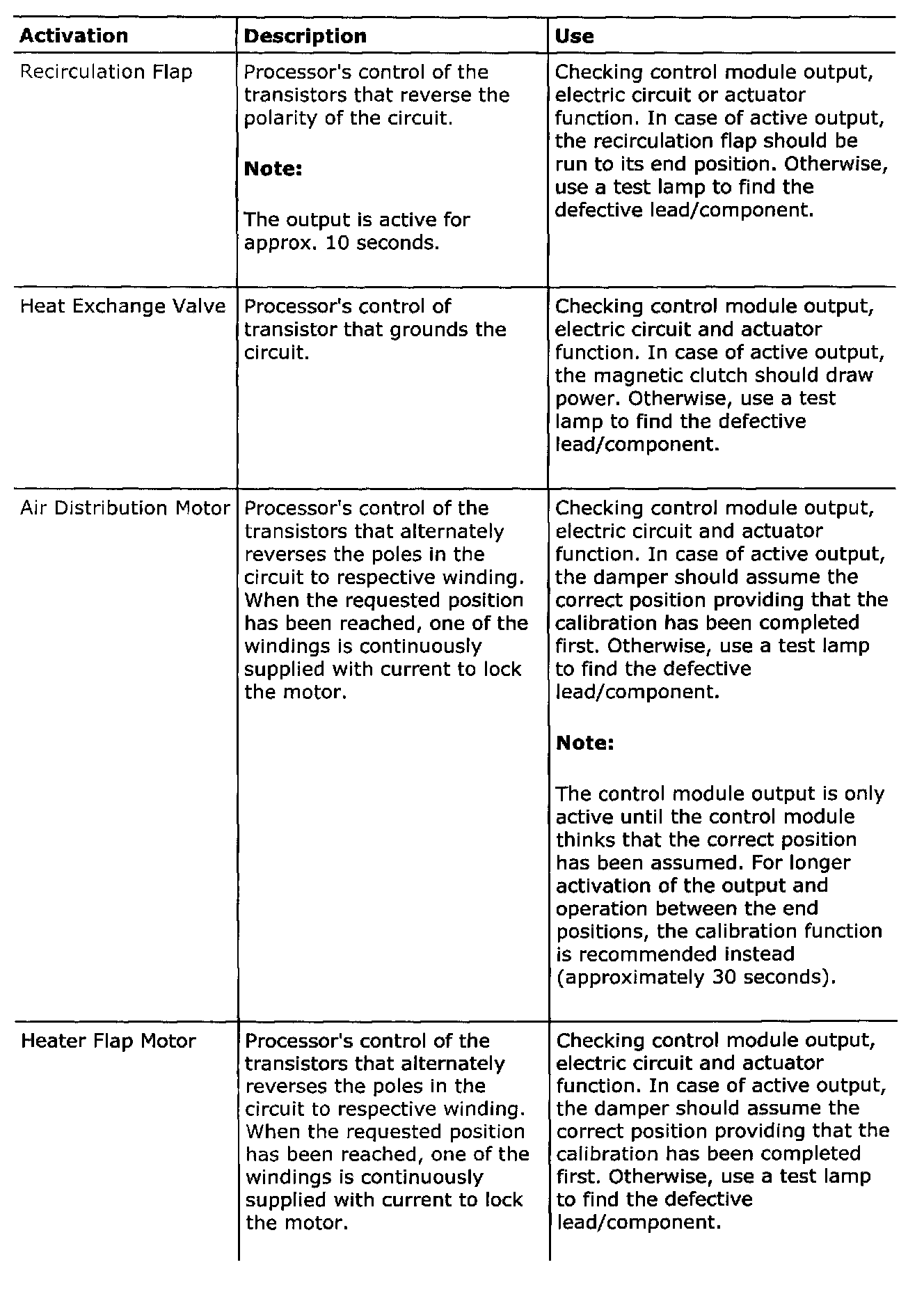

Menu "Activations"

Part 1:

Part 2:

Part 3:

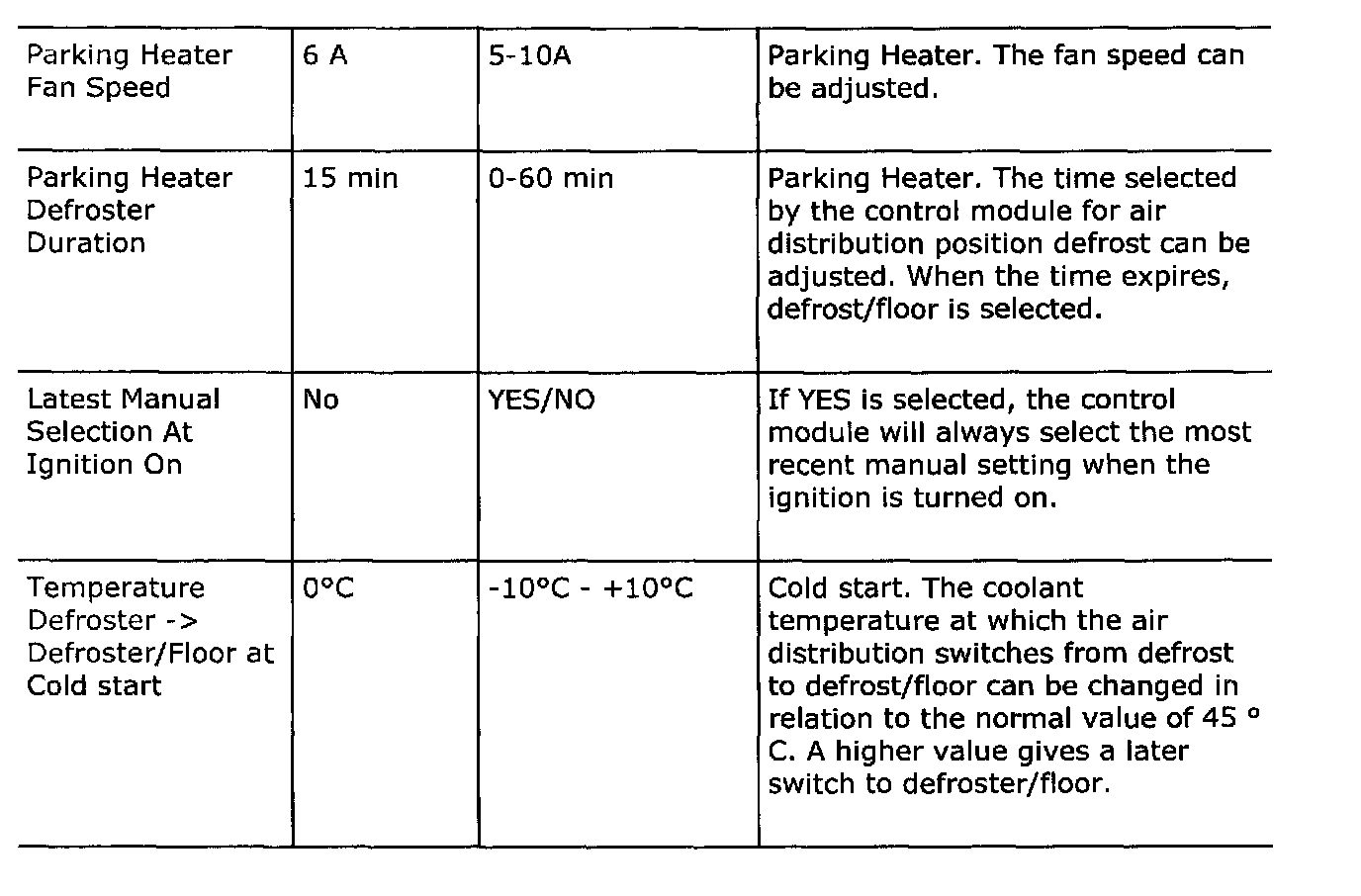

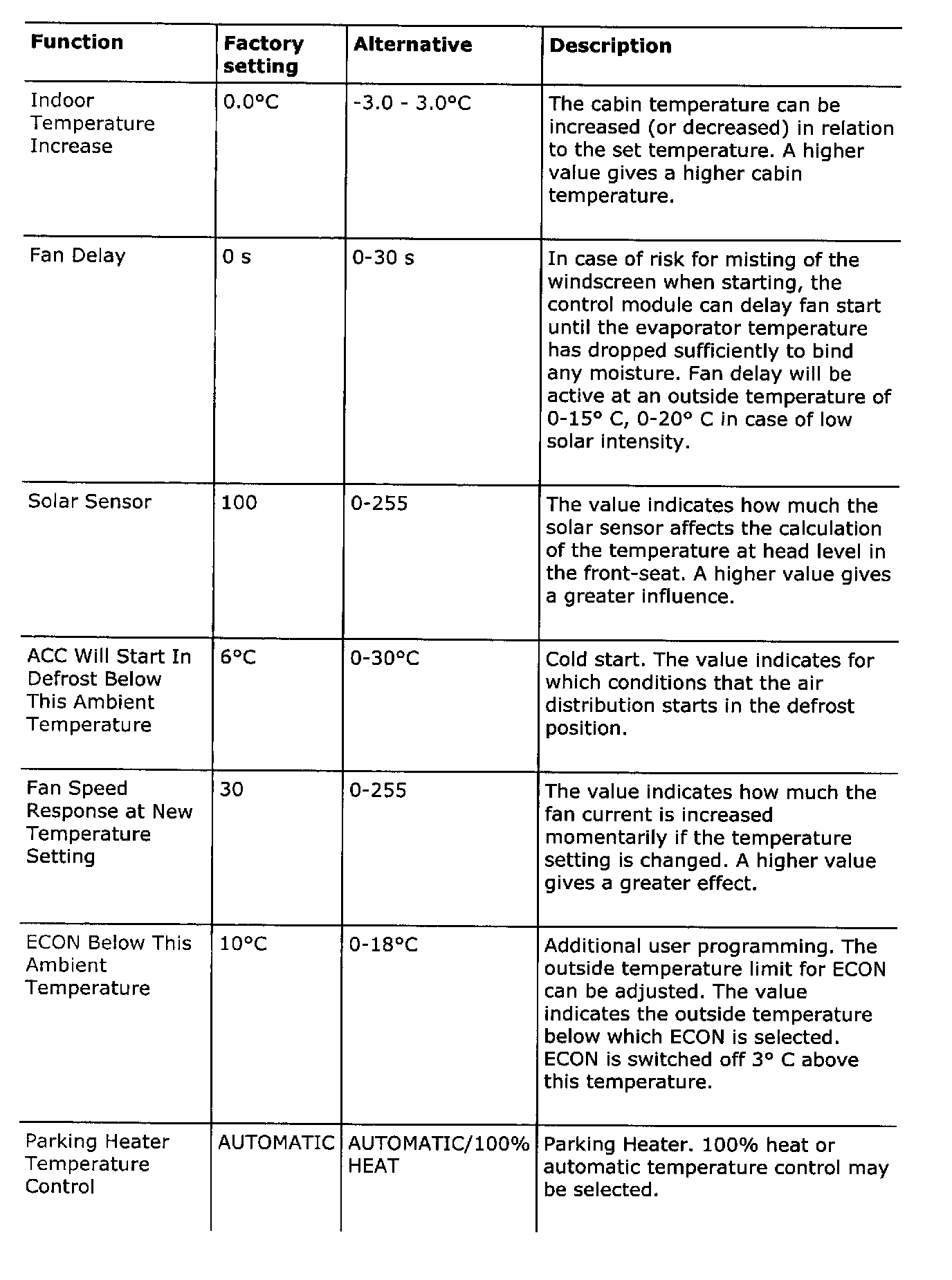

Menu "Adjustments"

Part 1:

Part 2:

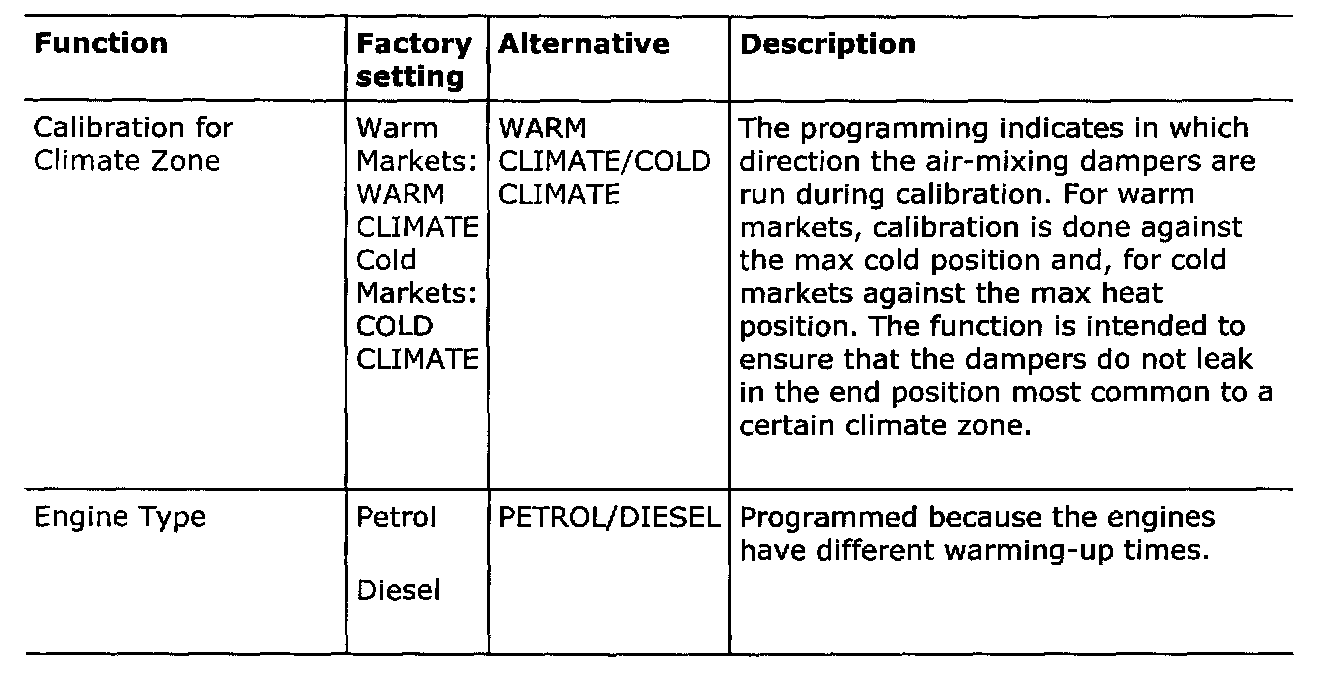

Menu "Programming"

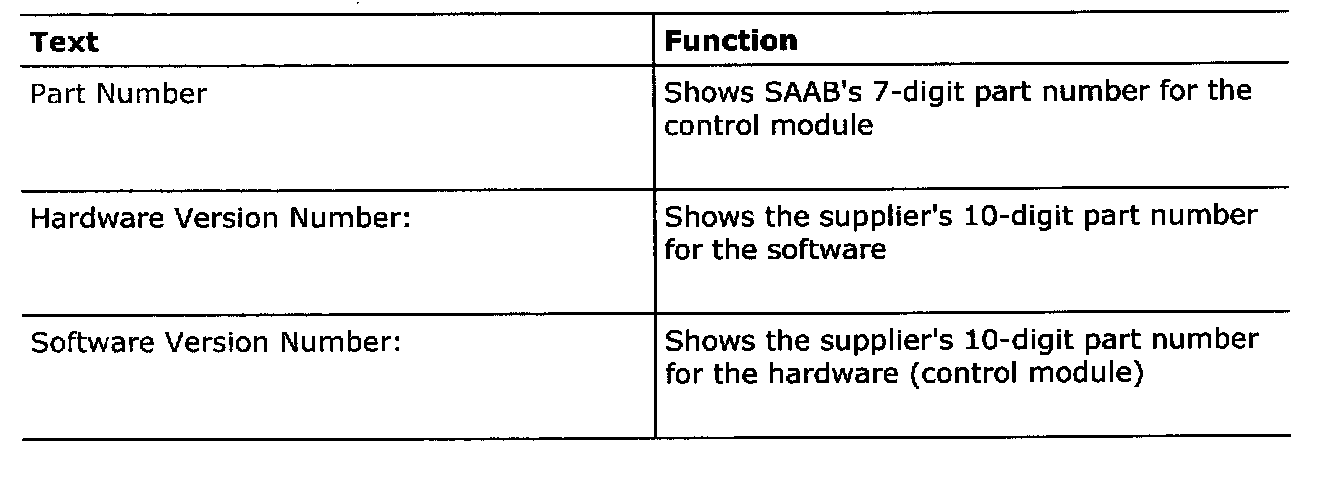

Menu 'System information"
