Stepping Motor, Air Distribution, ACC

Stepping Motor, Air Distribution Damper

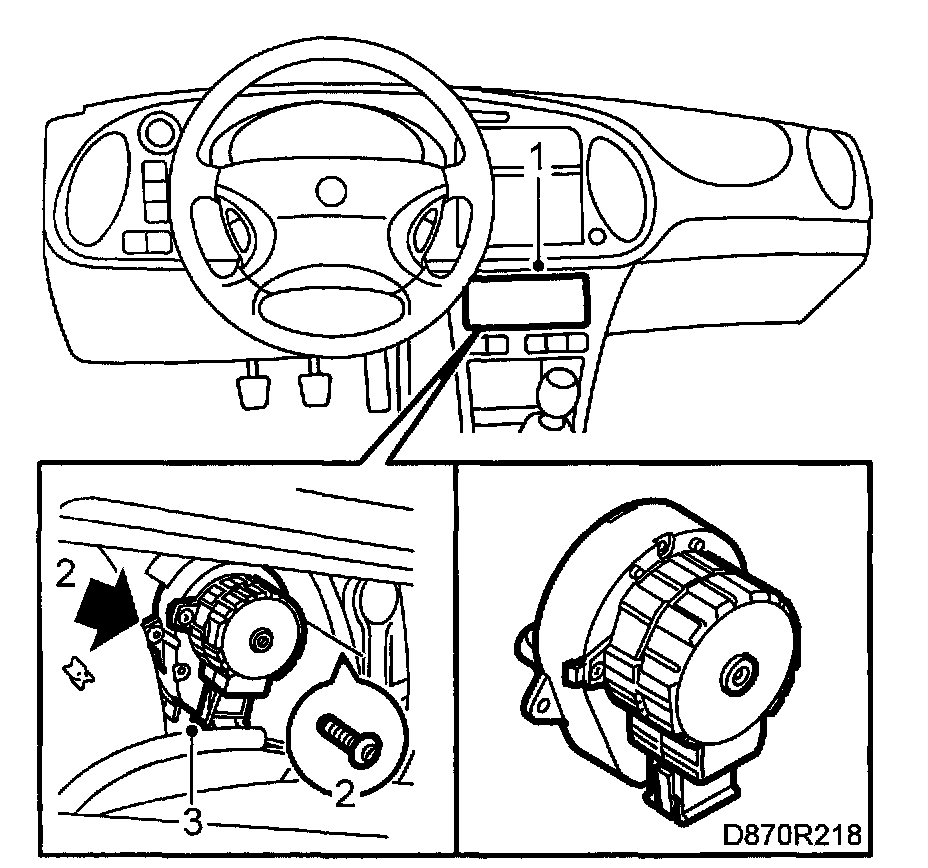

Removing
1. Remove the ACC unit.
2. Remove both retaining bolts from the stepping motor.
3. Unplug the connector.

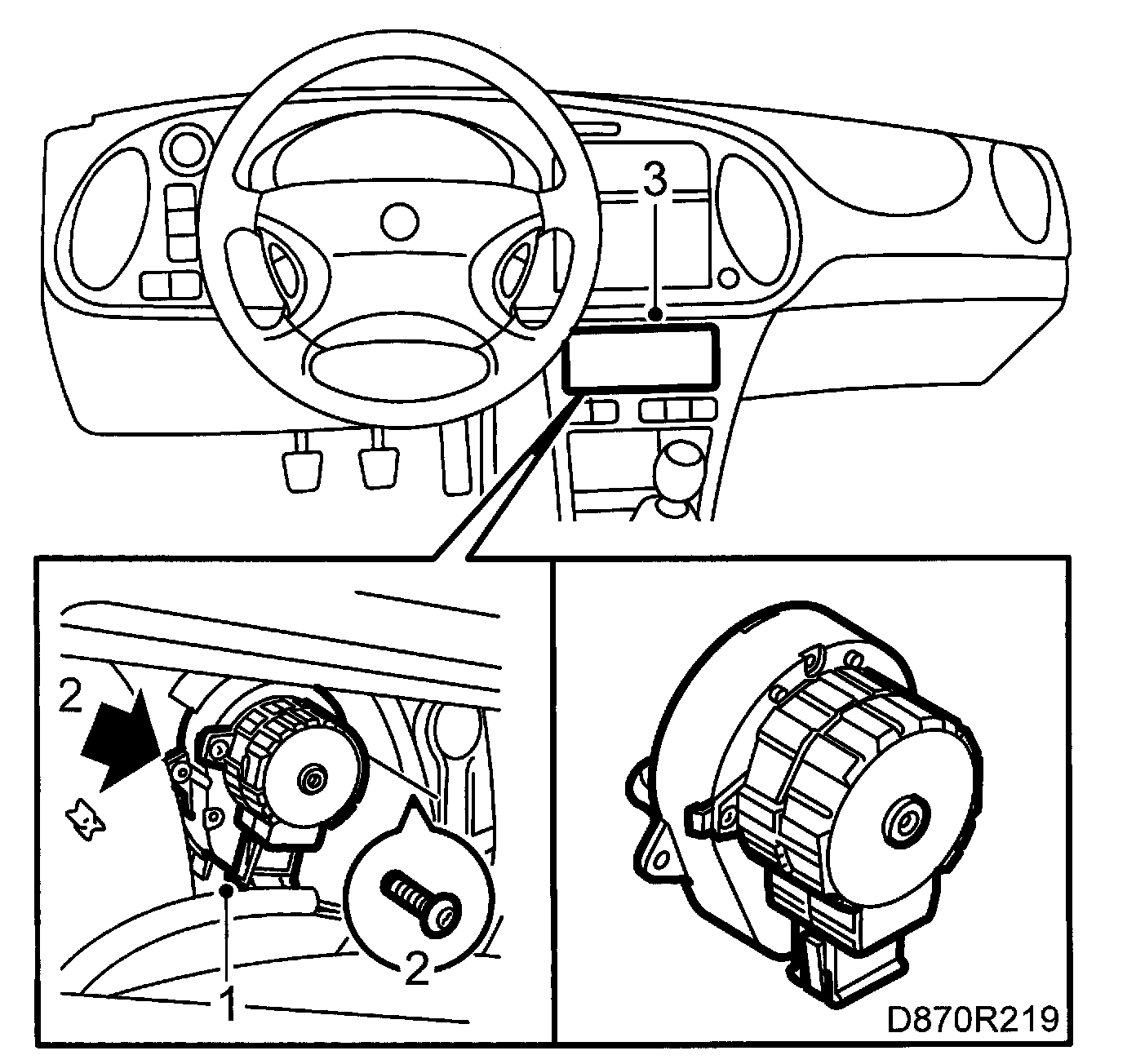

Fitting







1. Plug in the connector.
2. Fit the stepping motor and tighten the retaining bolts.
3. Put in place the ACC module.
4. Calibrate the ACC-system by simultaneously pressing the buttons "AUTO" and "OFF".

IMPORTANT: All previous diagnostic trouble codes are erased when calibrating. Obtain readouts of stored diagnostic trouble codes before calibrating.
