FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2003
>>
9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Grounding Point G7B
Grounding Point G7B

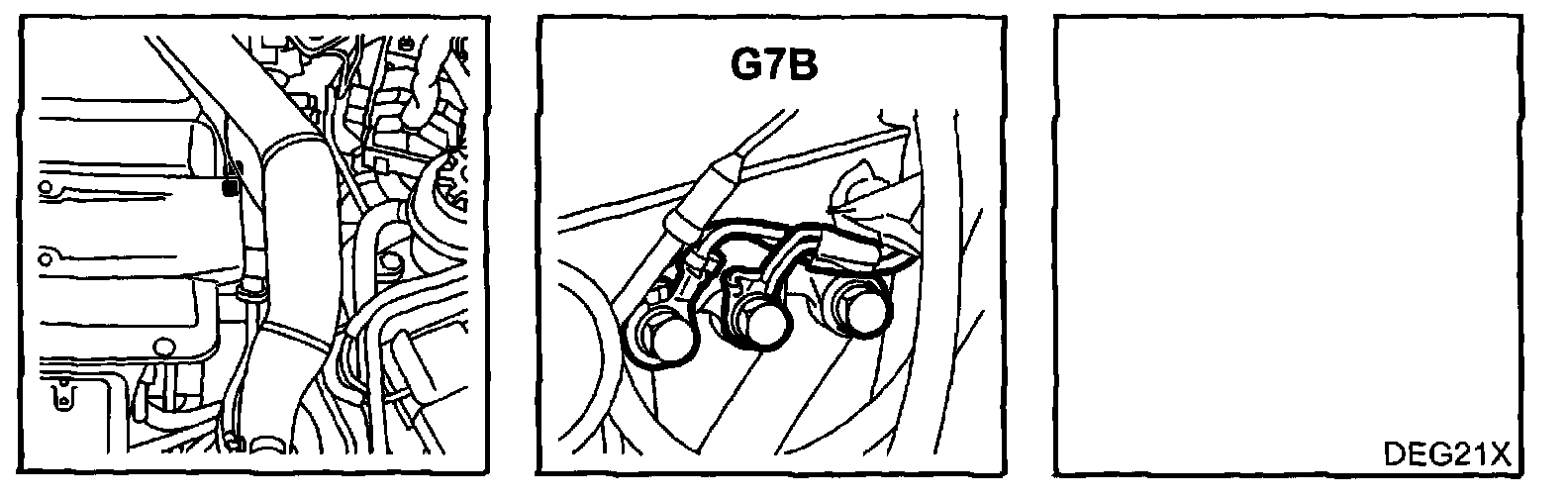

Location:
On side of intake manifold at cylinder 4.
Cable Marking: Black tape.
Grounding Point G7B:

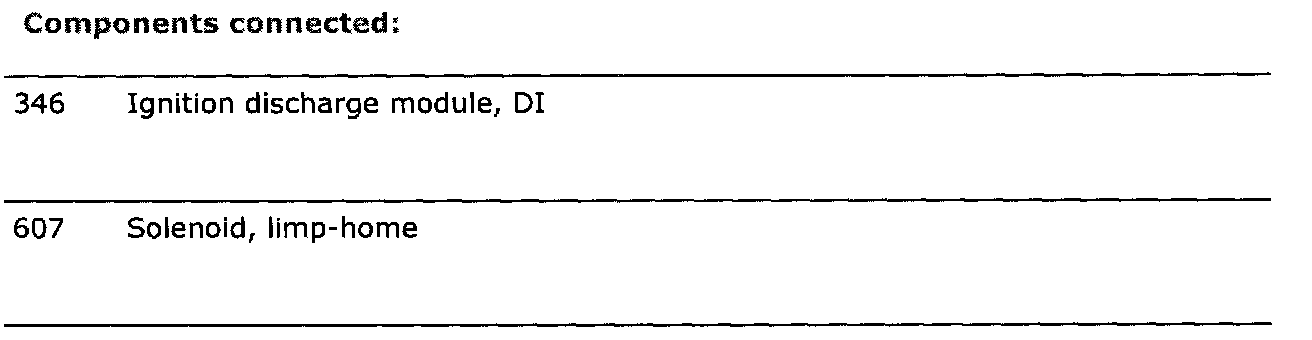

Connected Components:
