Home >> Saab >> 2003 >> 9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Diagrams >> Grounds >> Grounding Point G39

Grounding Point G39

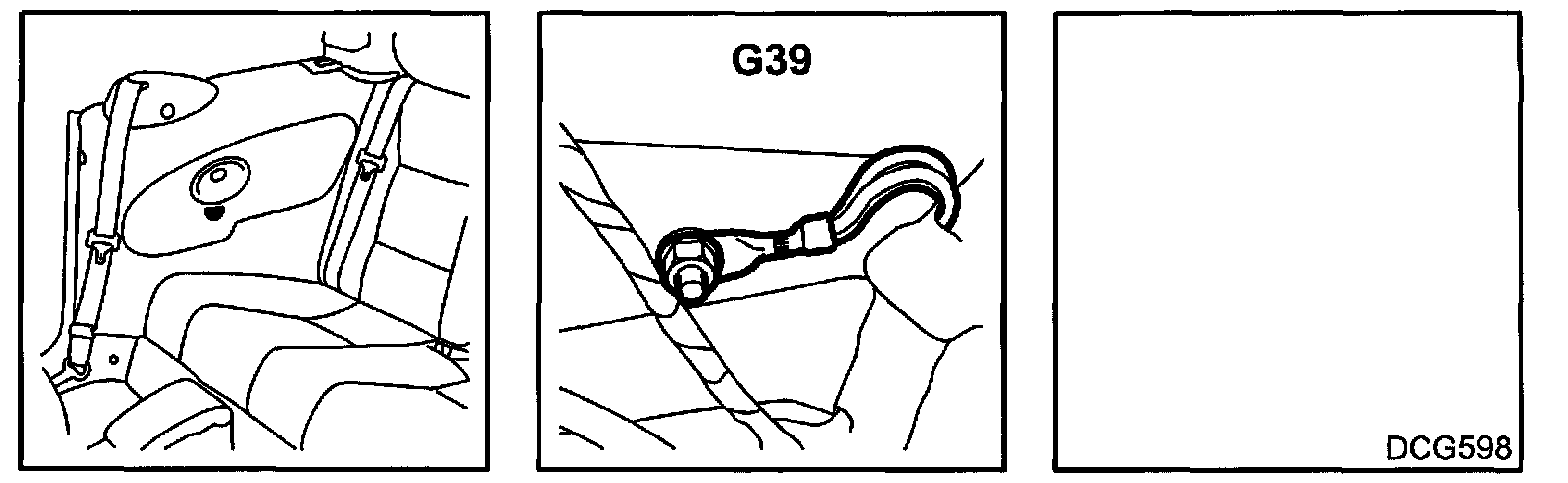

Location: Beneath RH rear-seat loudspeaker.


Grounding Point G39:

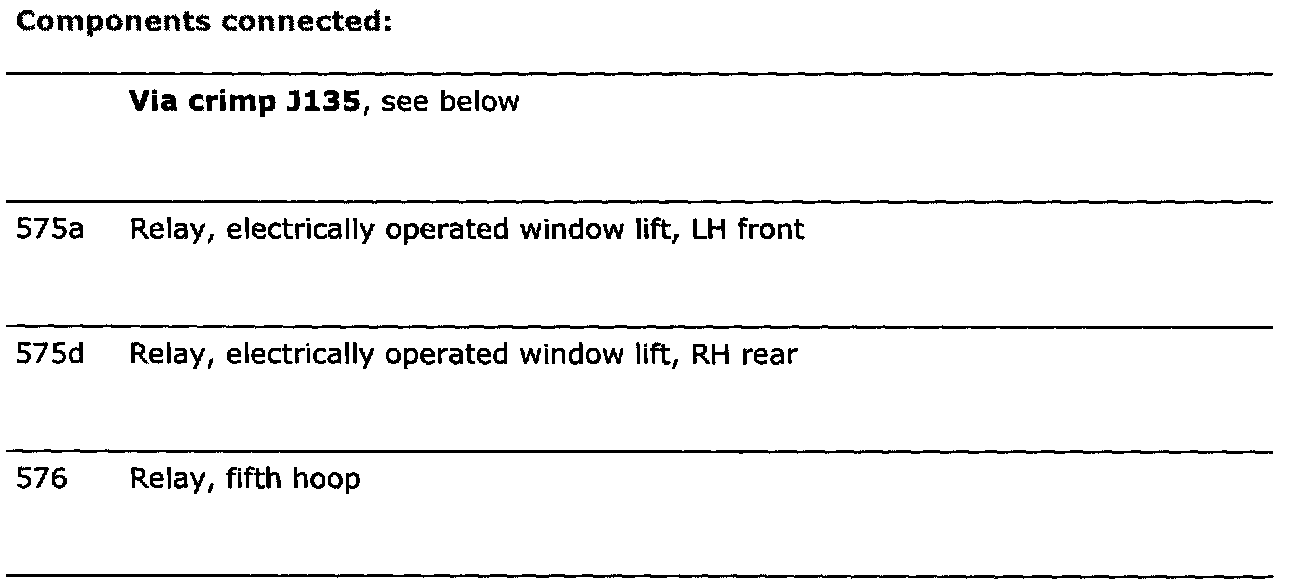

Connected Components:
