9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Grounding Point G30
Grounding Point G30
Location:
In engine bay on side panel in front of left-hand wheel housing.
Grounding Point G30:

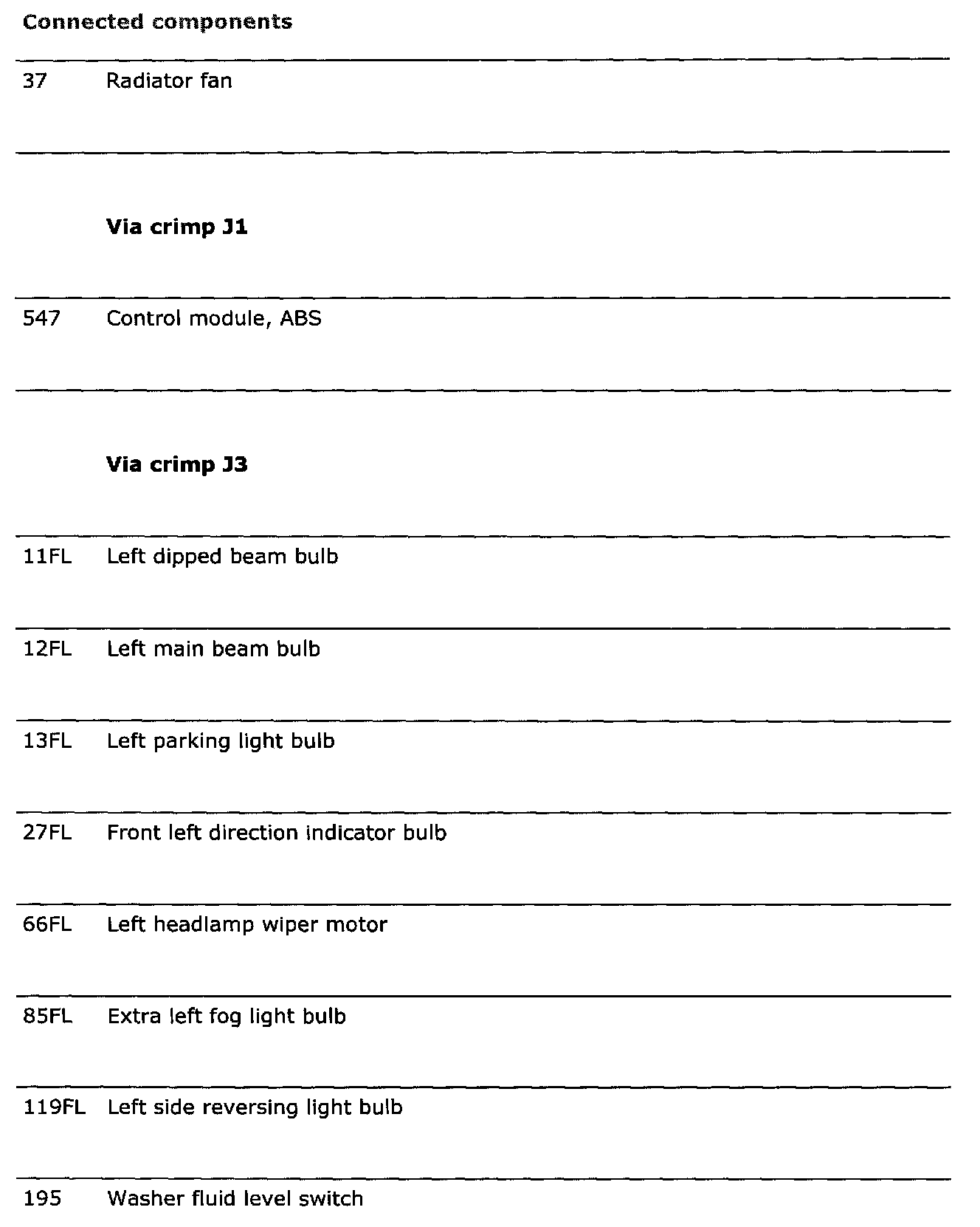

Connected Components Part 1:

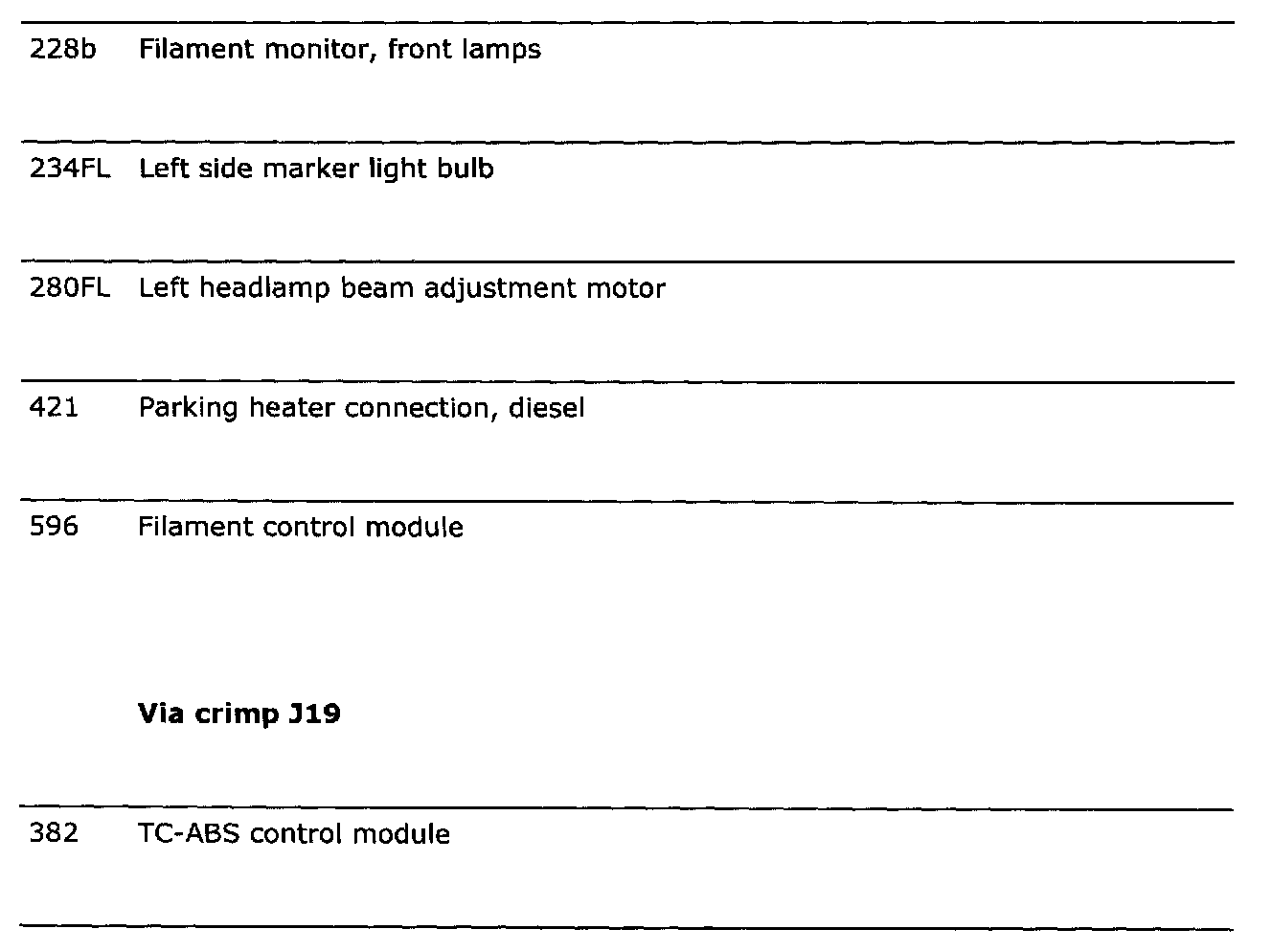

Connected Components Part 2:
