Home
>>
Saab
>>
2003
>>
9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Supply +30 (Part 2/2)
Power Supply +30 (Part 2/2)

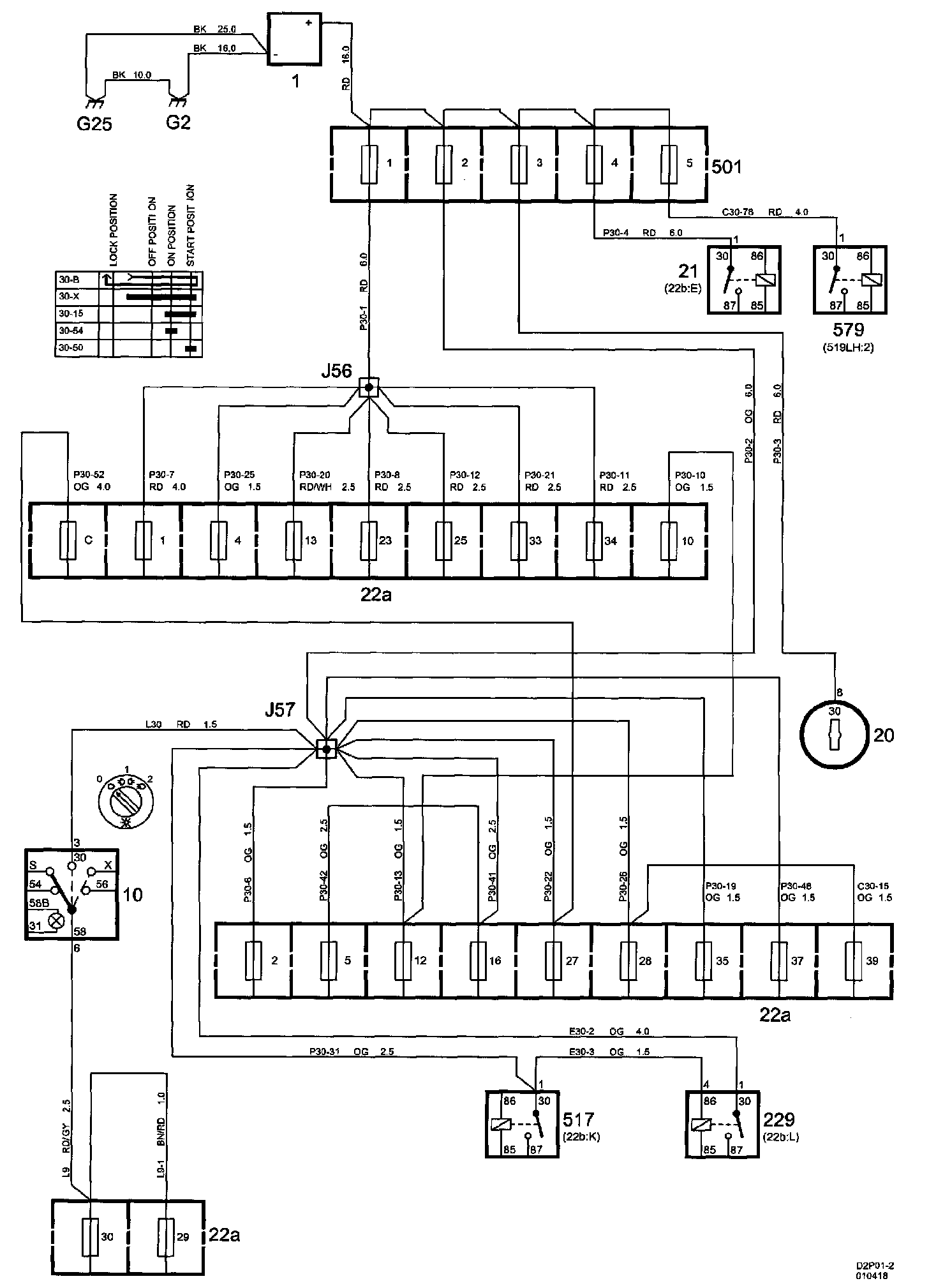

Power Supply +30 (Part 2/2):

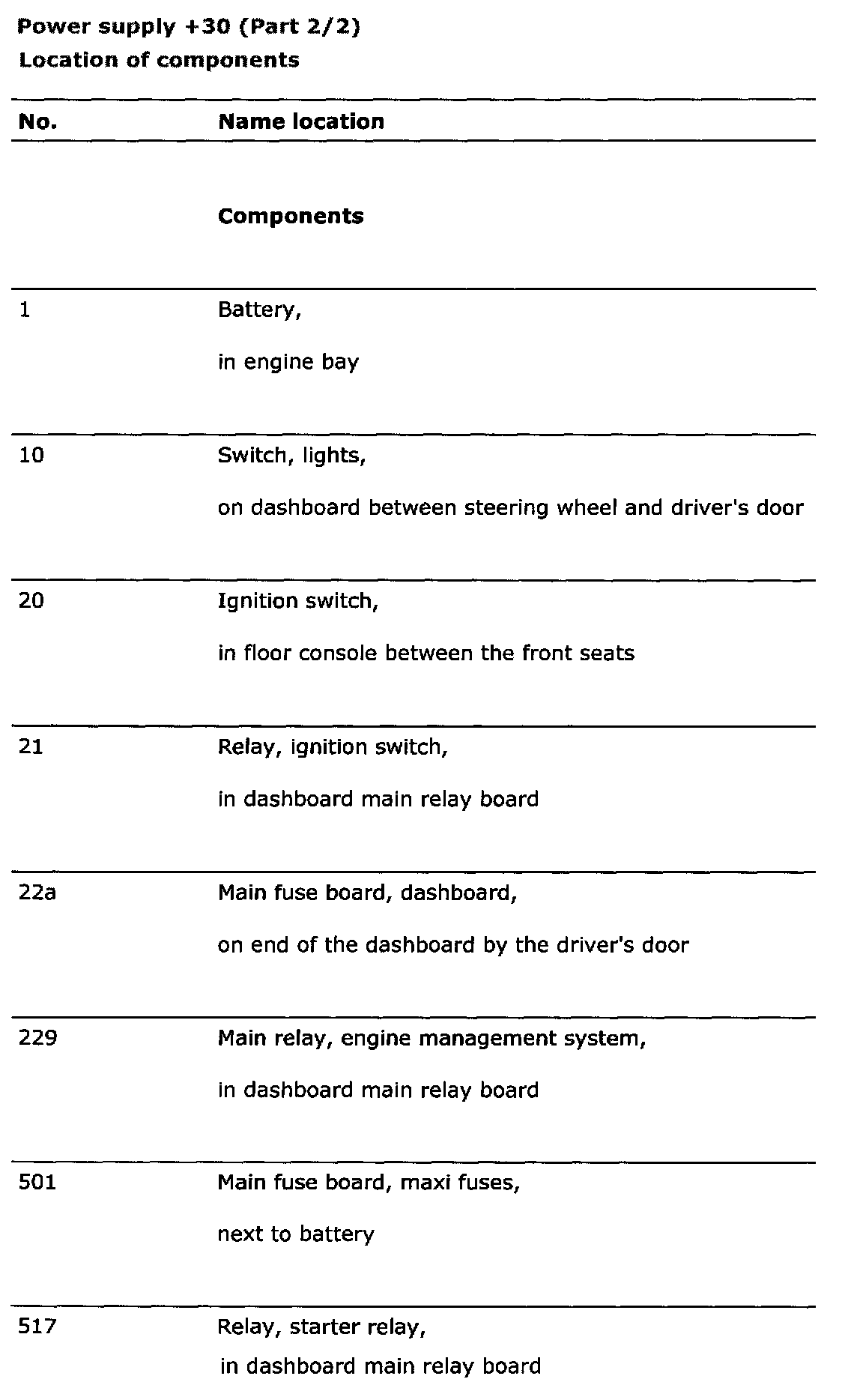

List Of Components (Part 1):

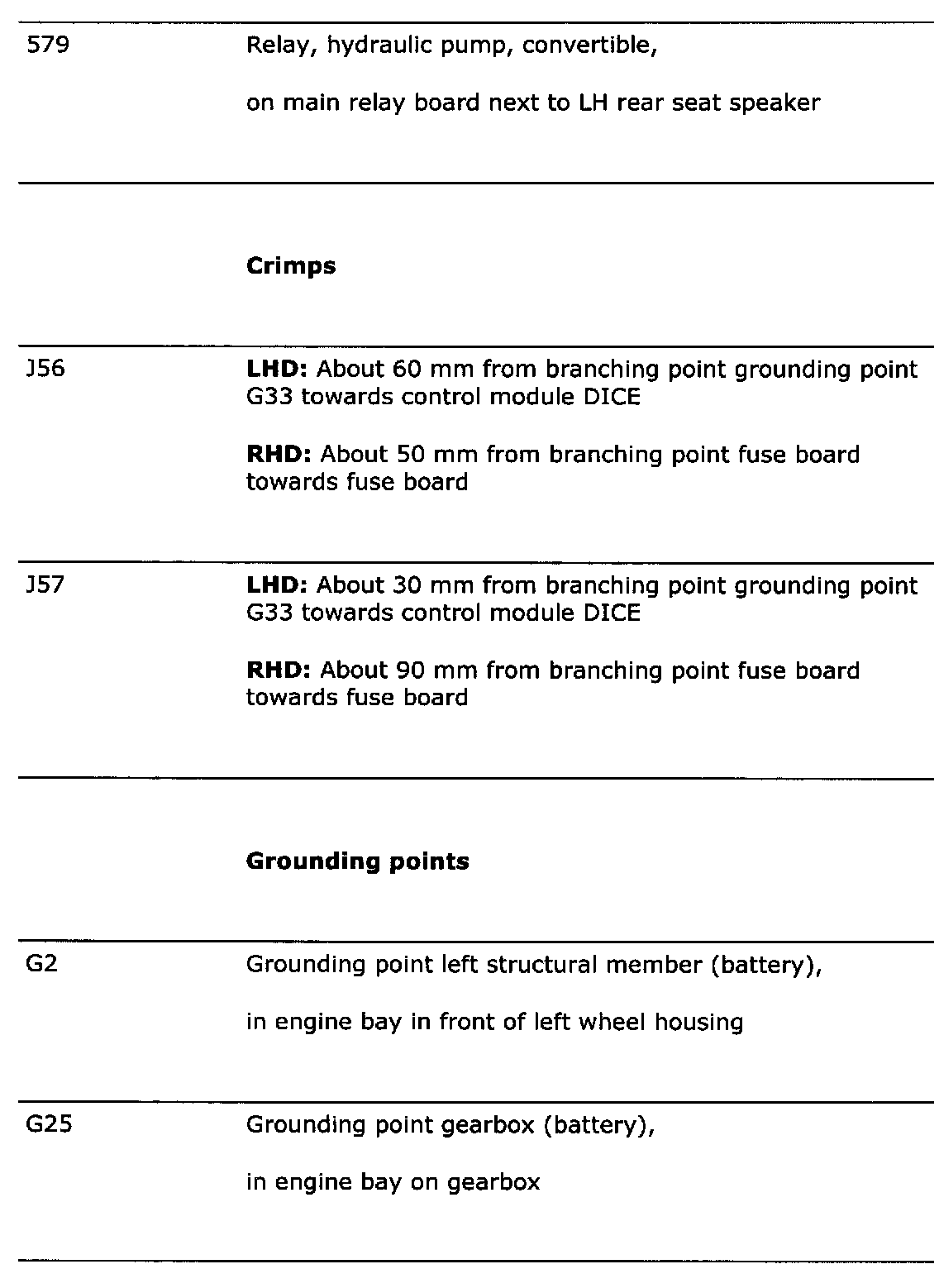

List Of Components (Part 2):
