Home >> Saab >> 2003 >> 9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Crimps (Splices) >> Crimp J124, Rear Harness

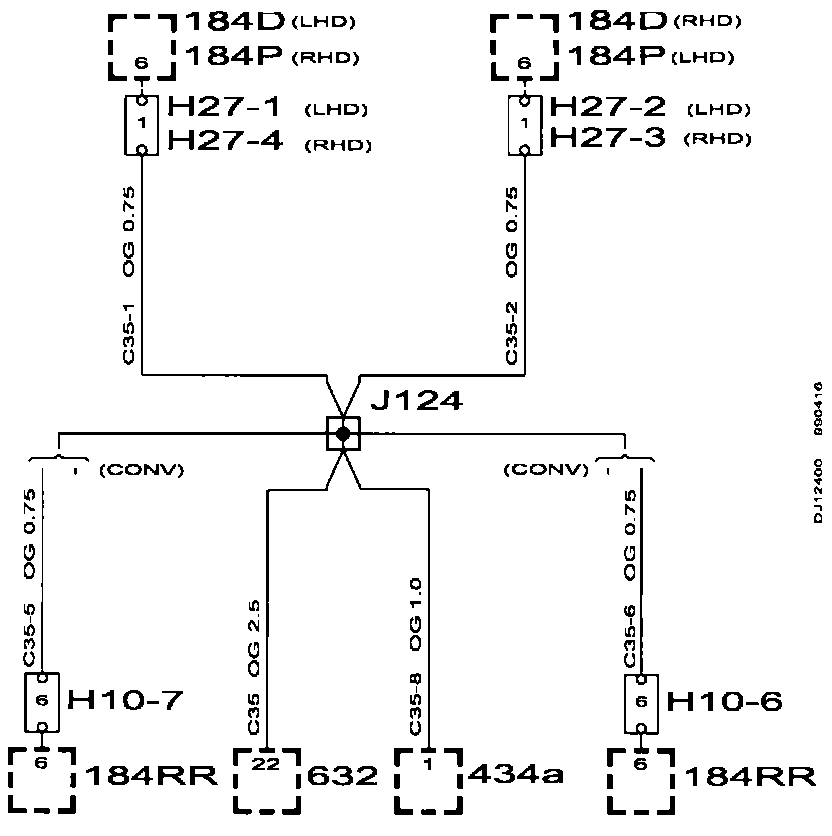

Crimp J124, Rear Harness

Crimp J124, Rear Harness:
