Home >> Saab >> 2003 >> 9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Crimps (Splices) >> Crimp Contact JH2, Dashboard Harness

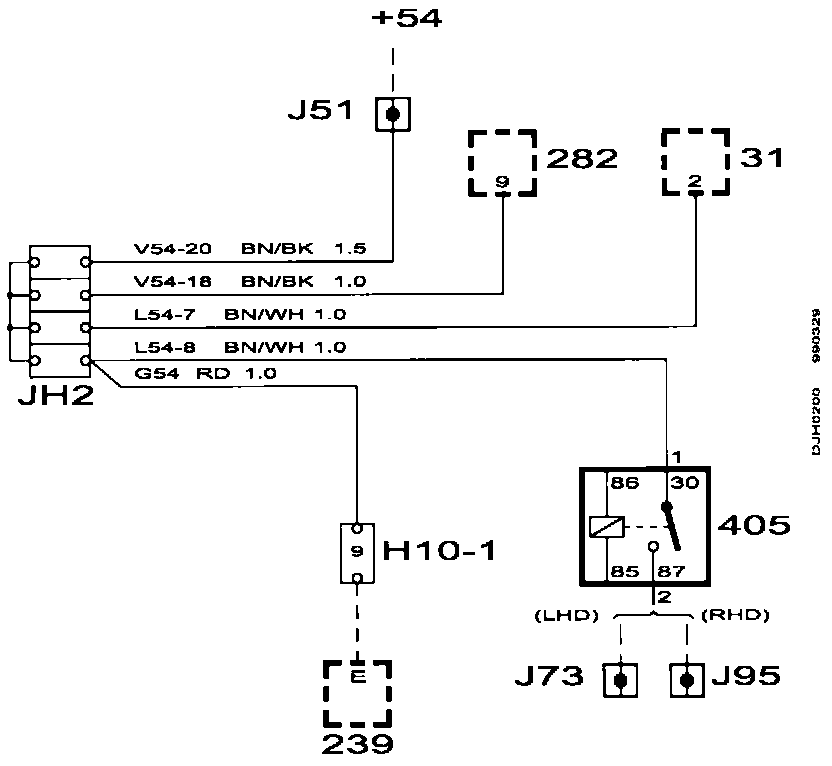

Crimp Contact JH2, Dashboard Harness

Crimp Contact JH2, Dashboard Harness:
