Main Instrument Unit (MIU)

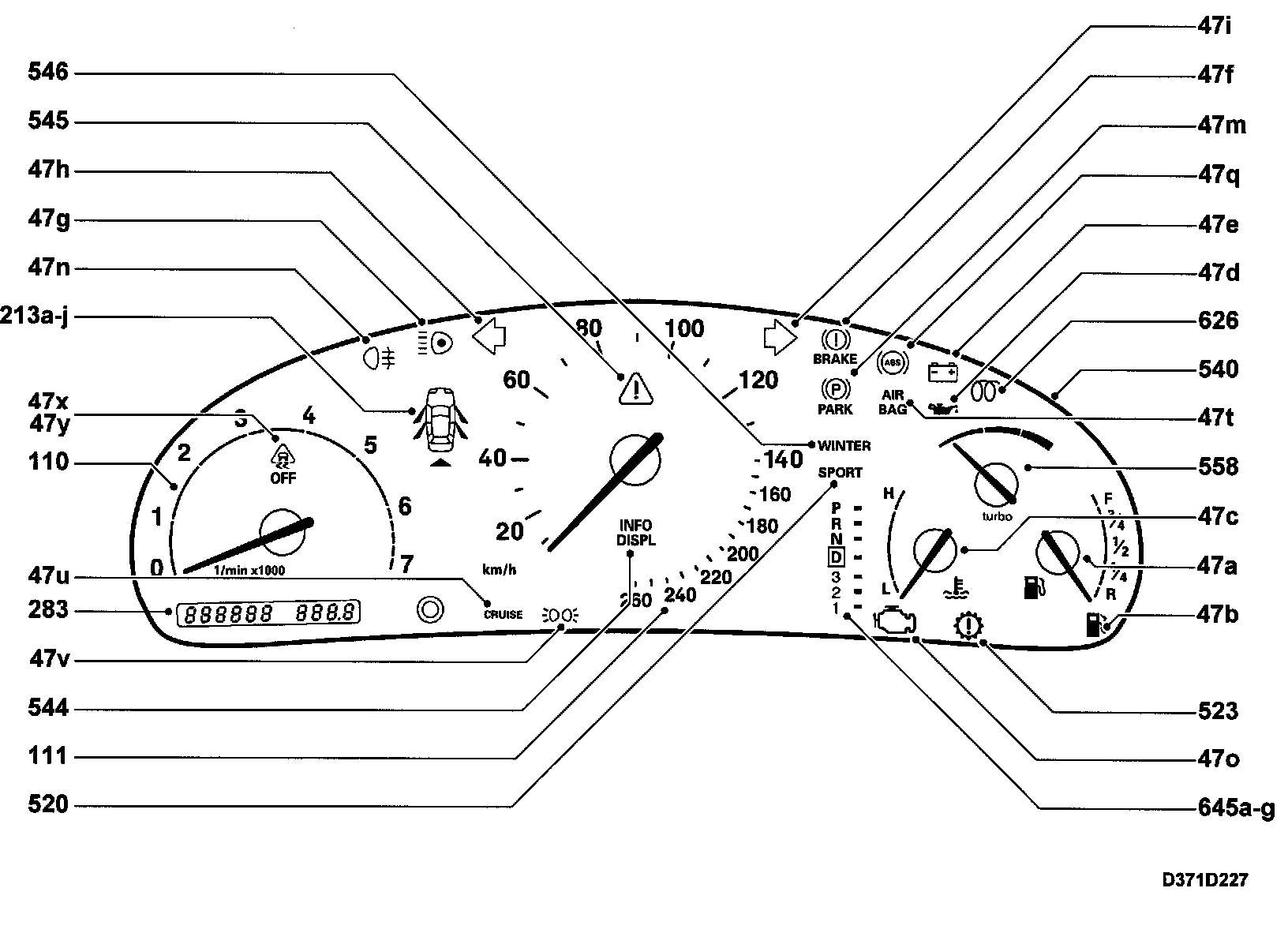

Main Instrument Unit (MIU):

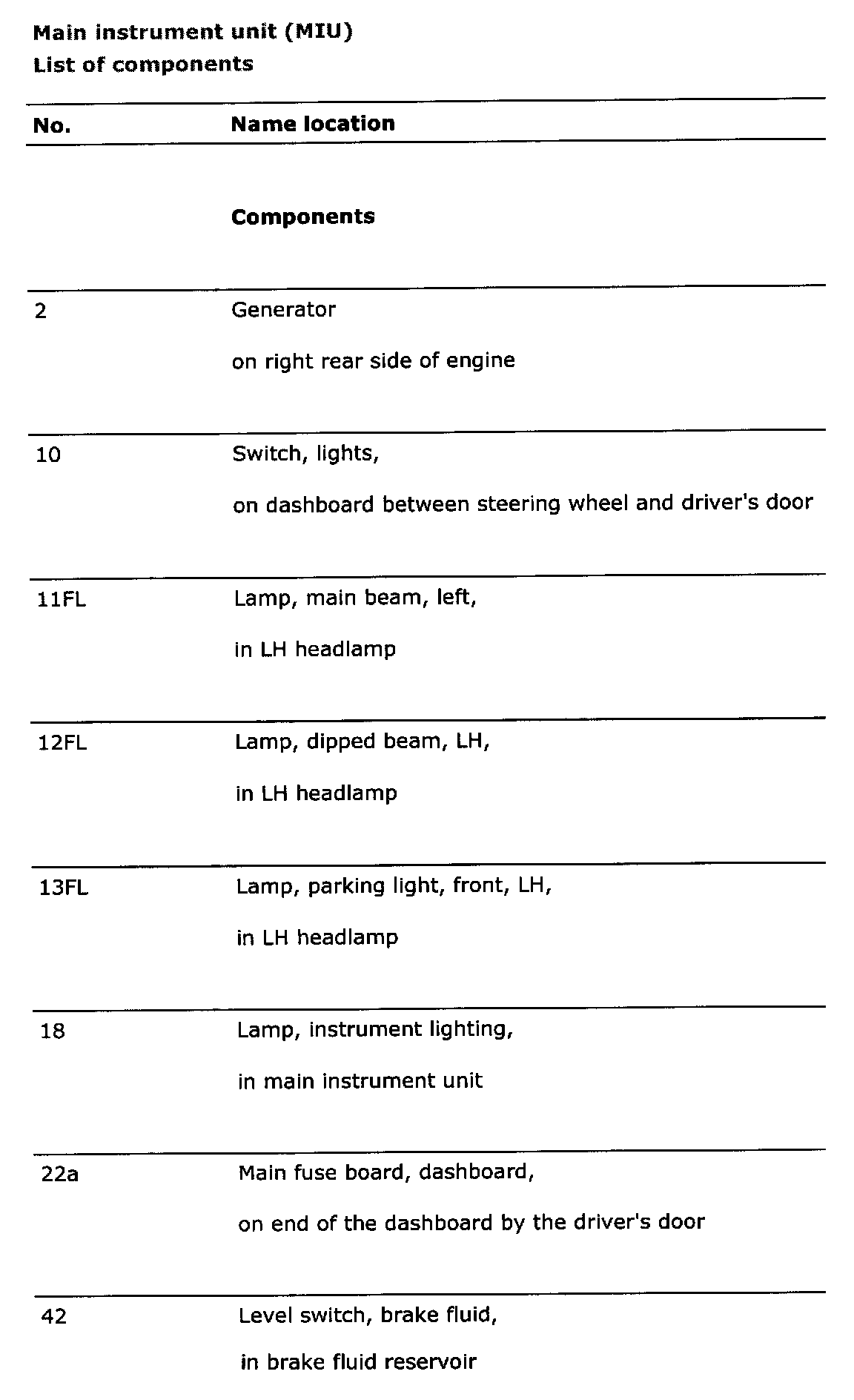

List Of Components (Part 1):

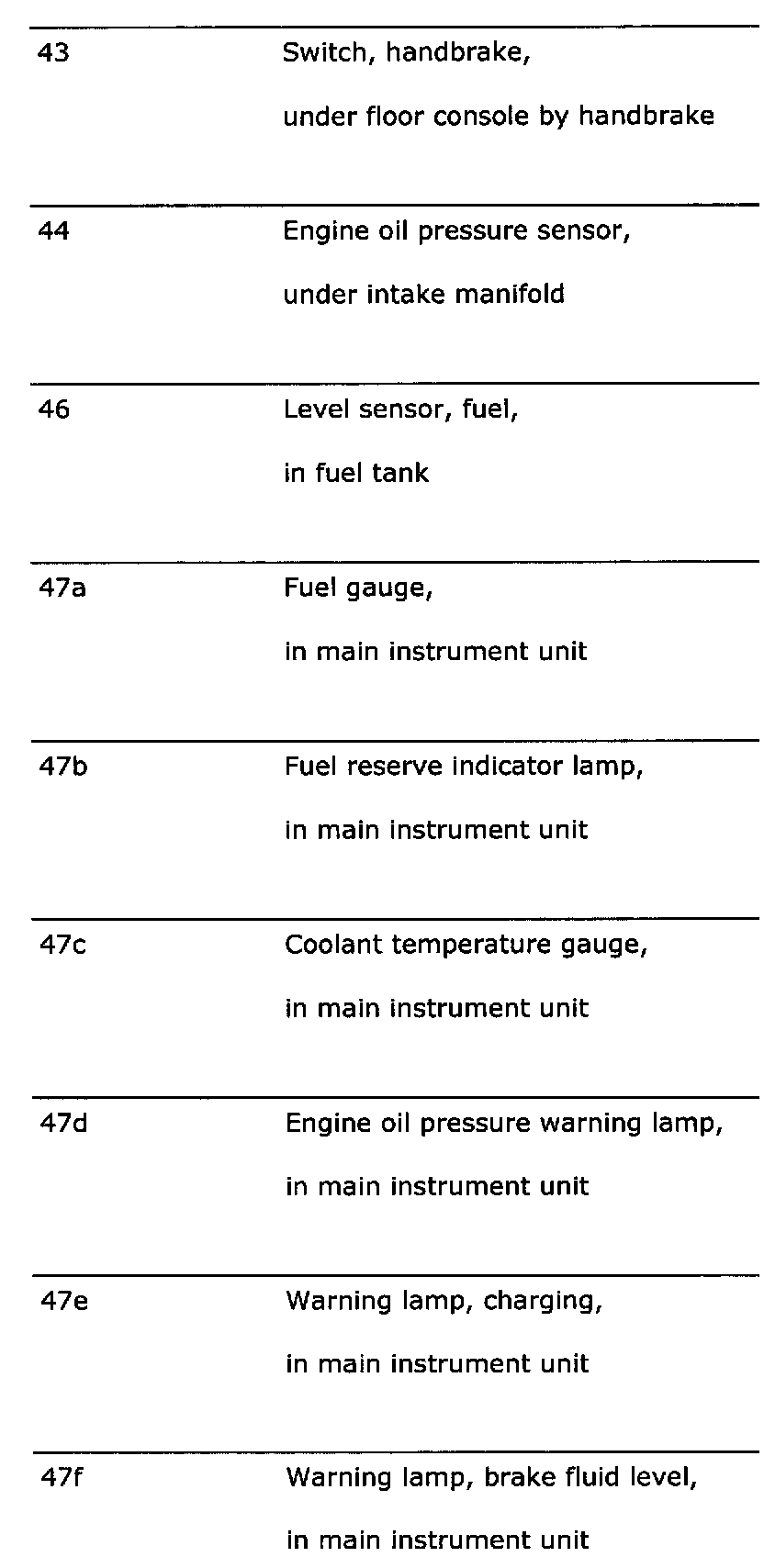

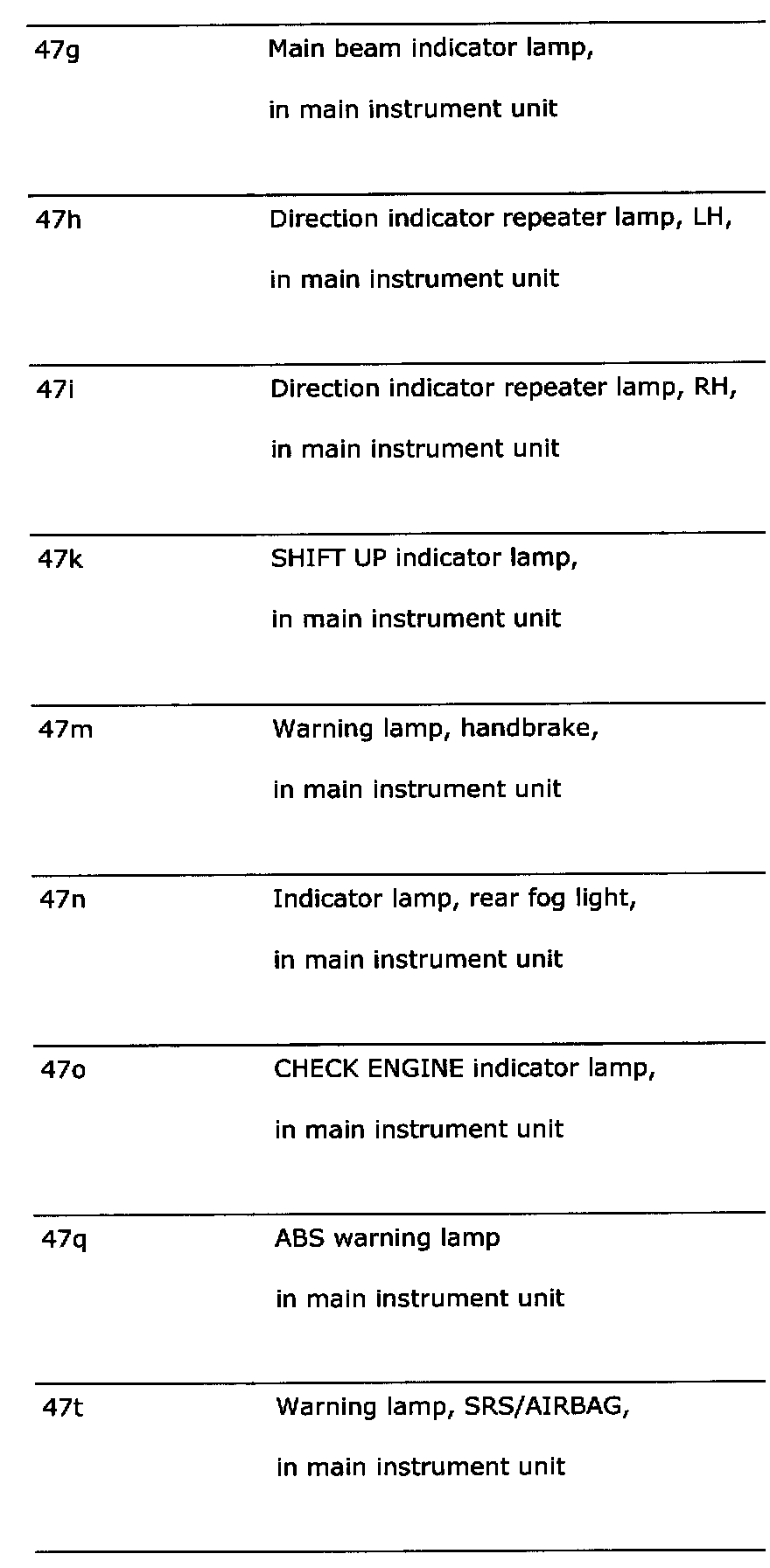

List Of Components (Part 2):

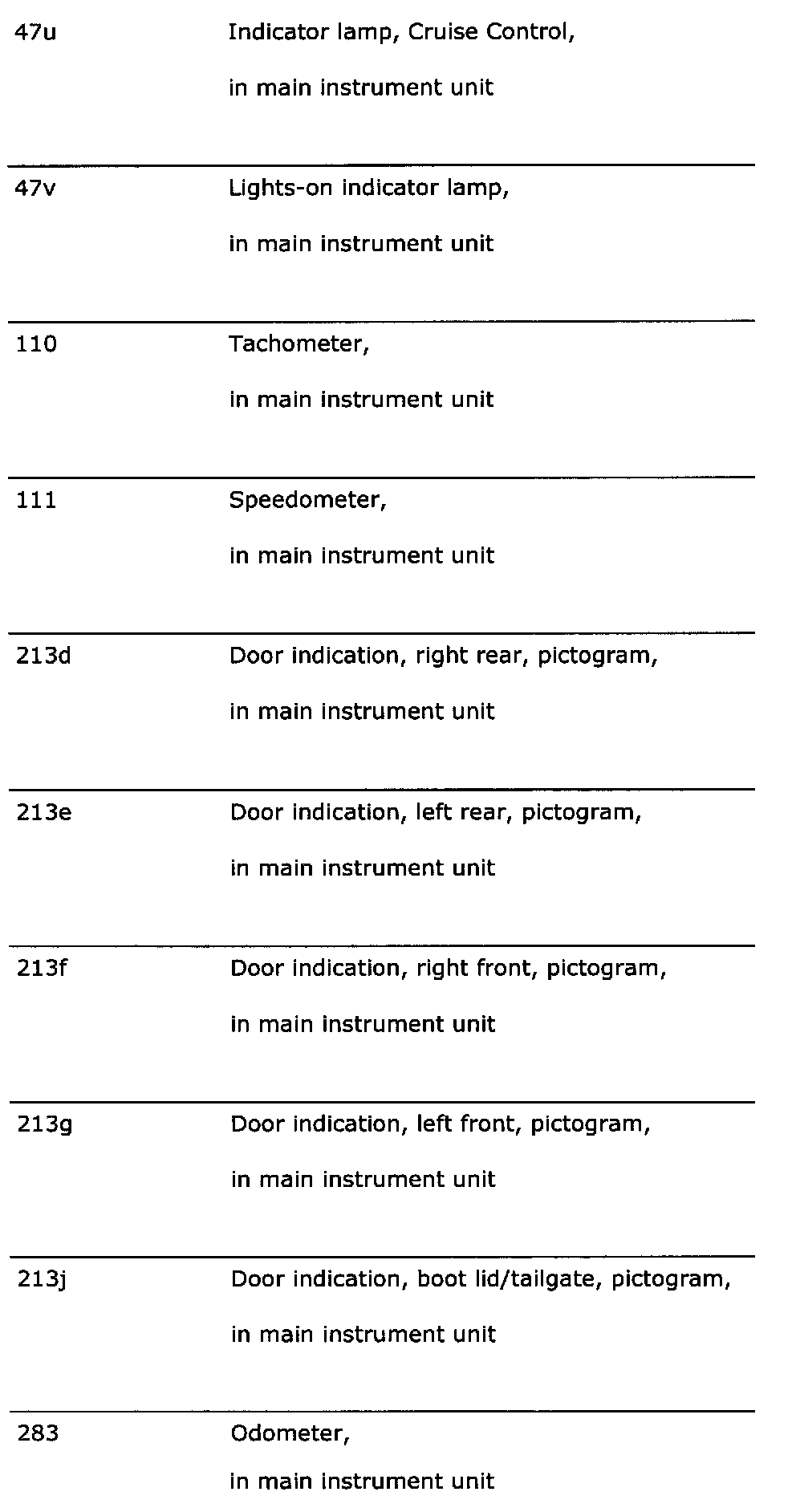

List Of Components (Part 3):

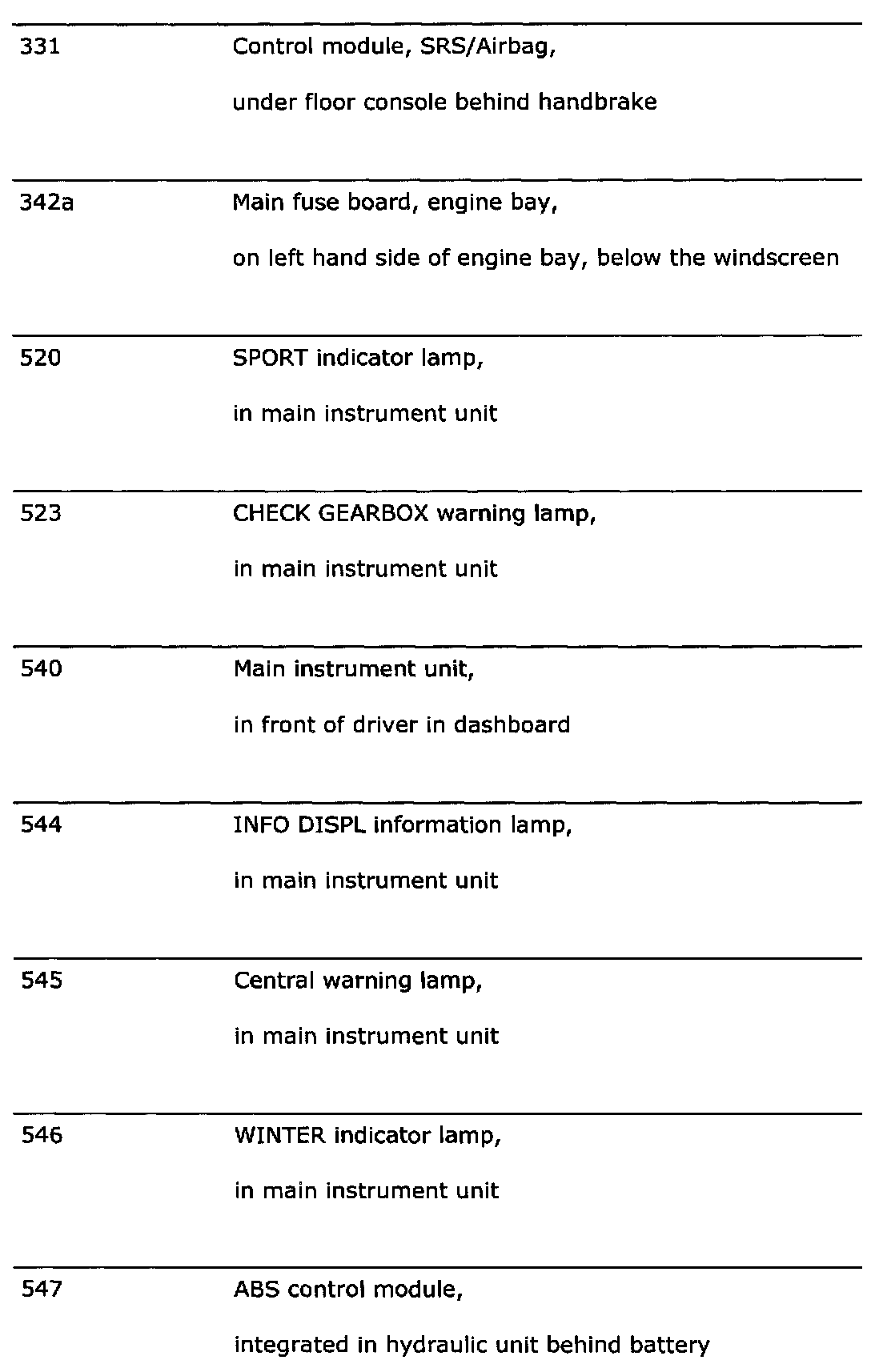

List Of Components (Part 4):

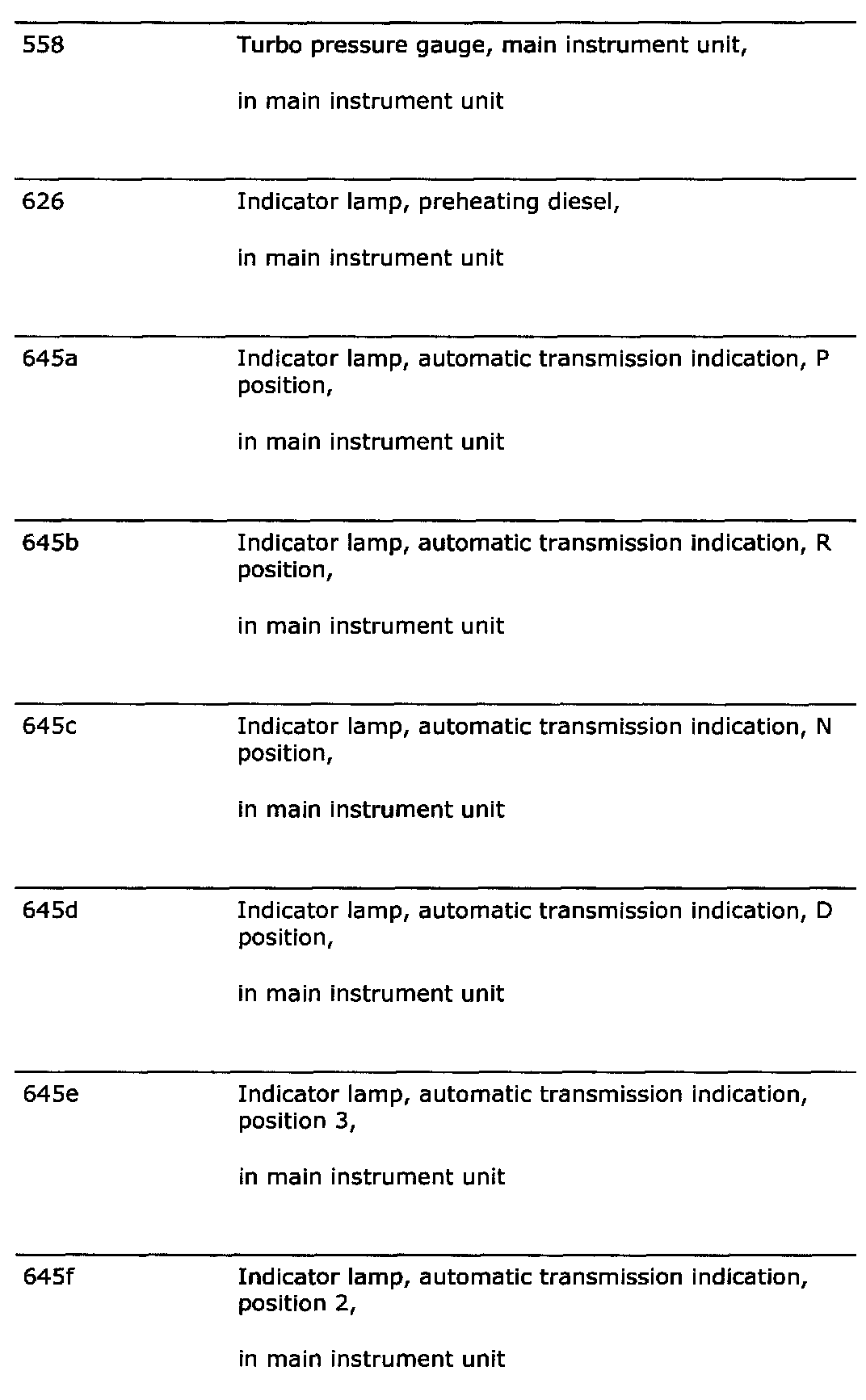

List Of Components (Part 5):

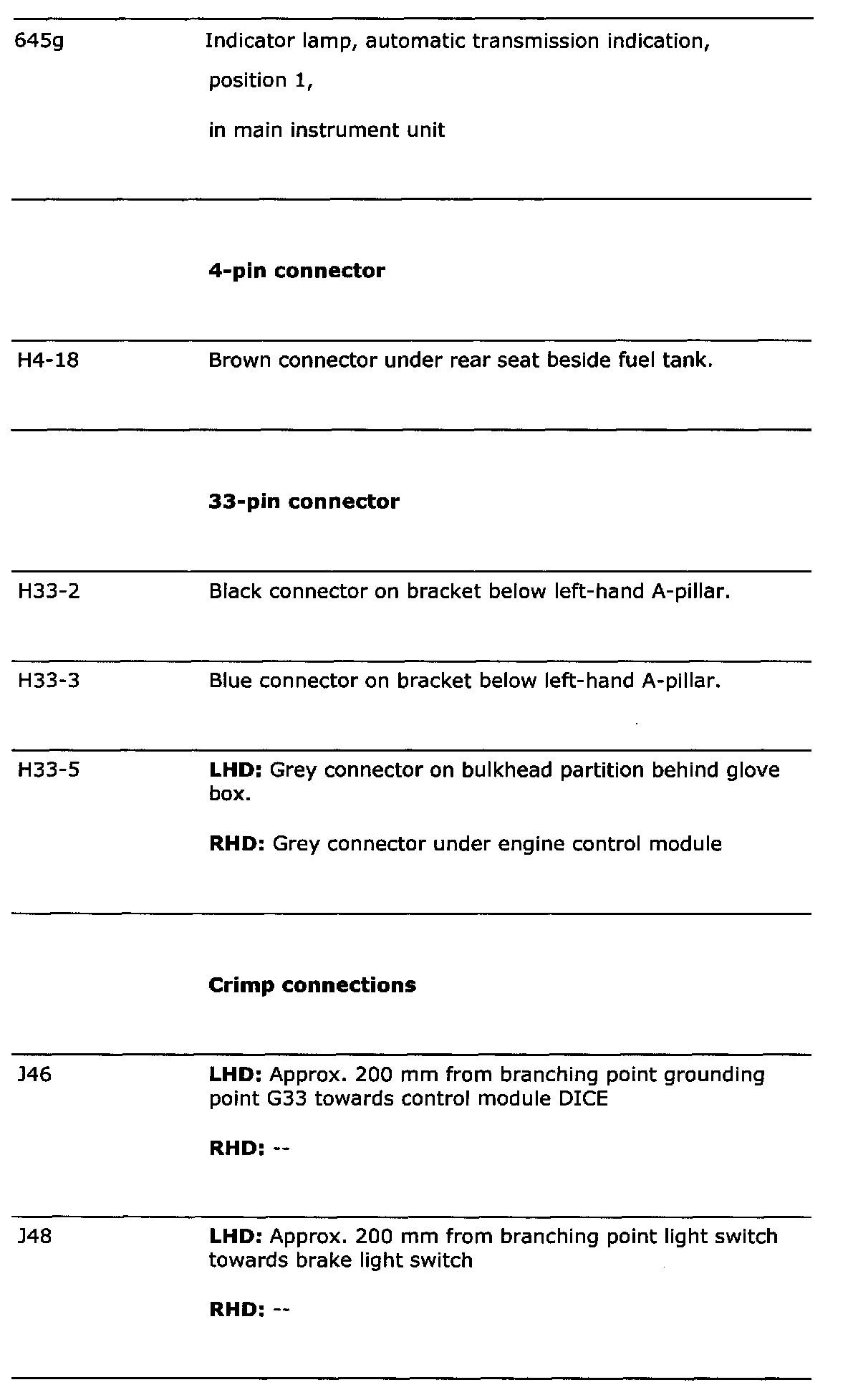

List Of Components (Part 6):

List Of Components (Part 7):

List Of Components (Part 8):

Wiring and Indicator Lamps







Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
