Home >> Saab >> 2003 >> 9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signal Lamp >> Lamp, Front Right Direction Indicator (27FR)

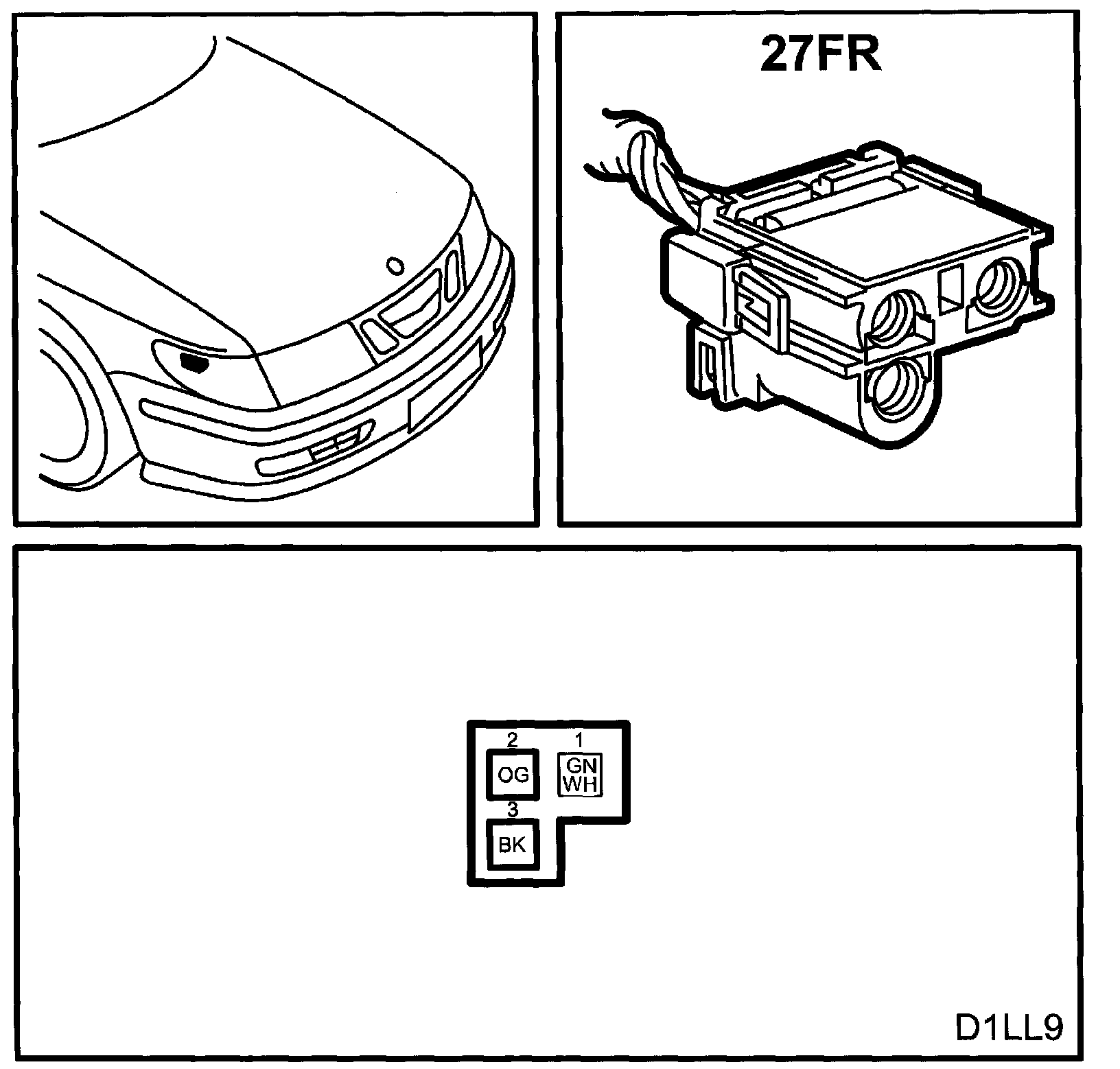

Lamp, Front Right Direction Indicator (27FR)

Lamp, Front Right Direction Indictor (27FR):
