FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2003
>>
9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
>>
Heating Element, Oxygen Sensor (271)
Heating Element, Oxygen Sensor (271)
Heating Element, Oxygen Sensor (271)

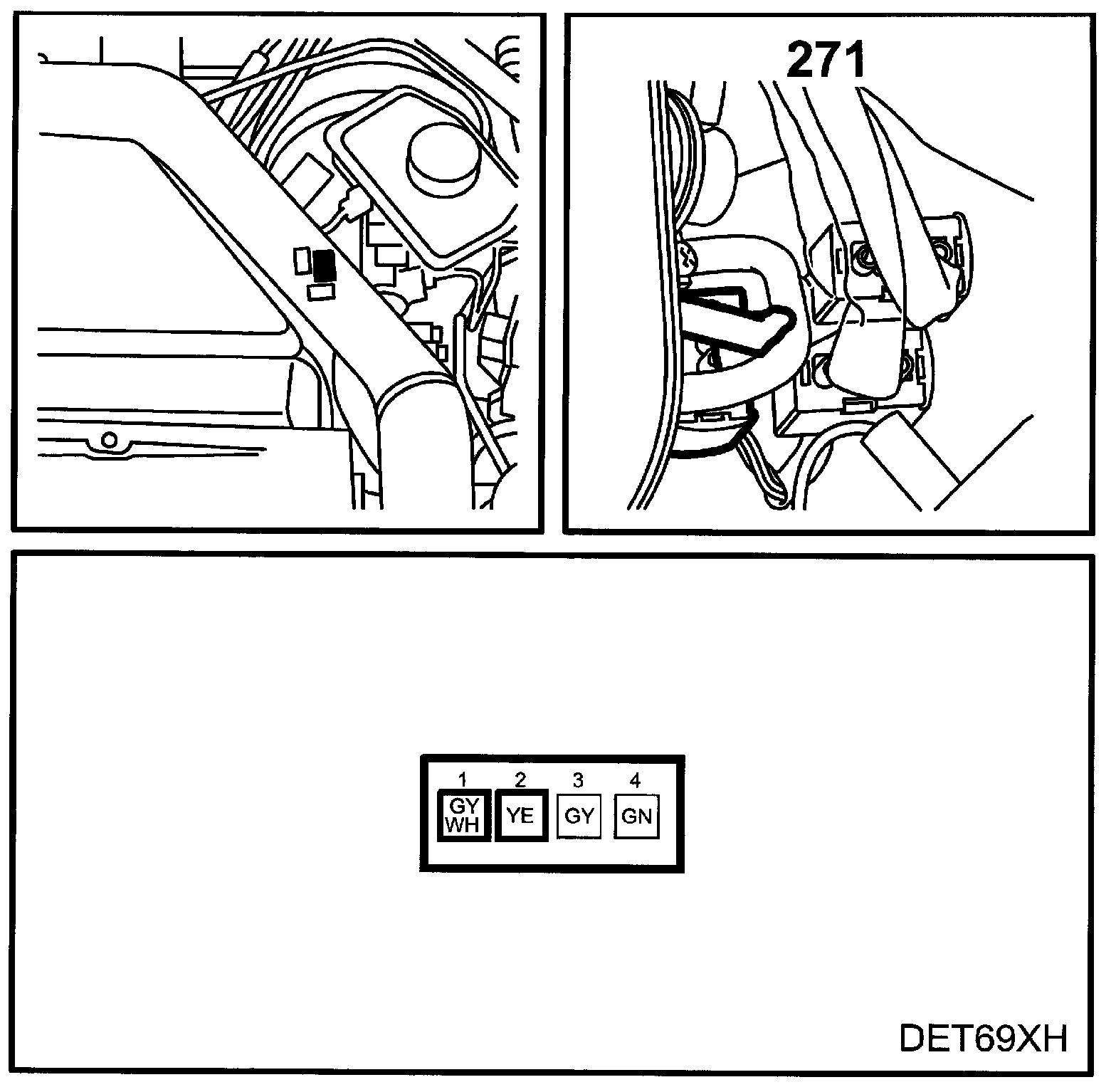

Front

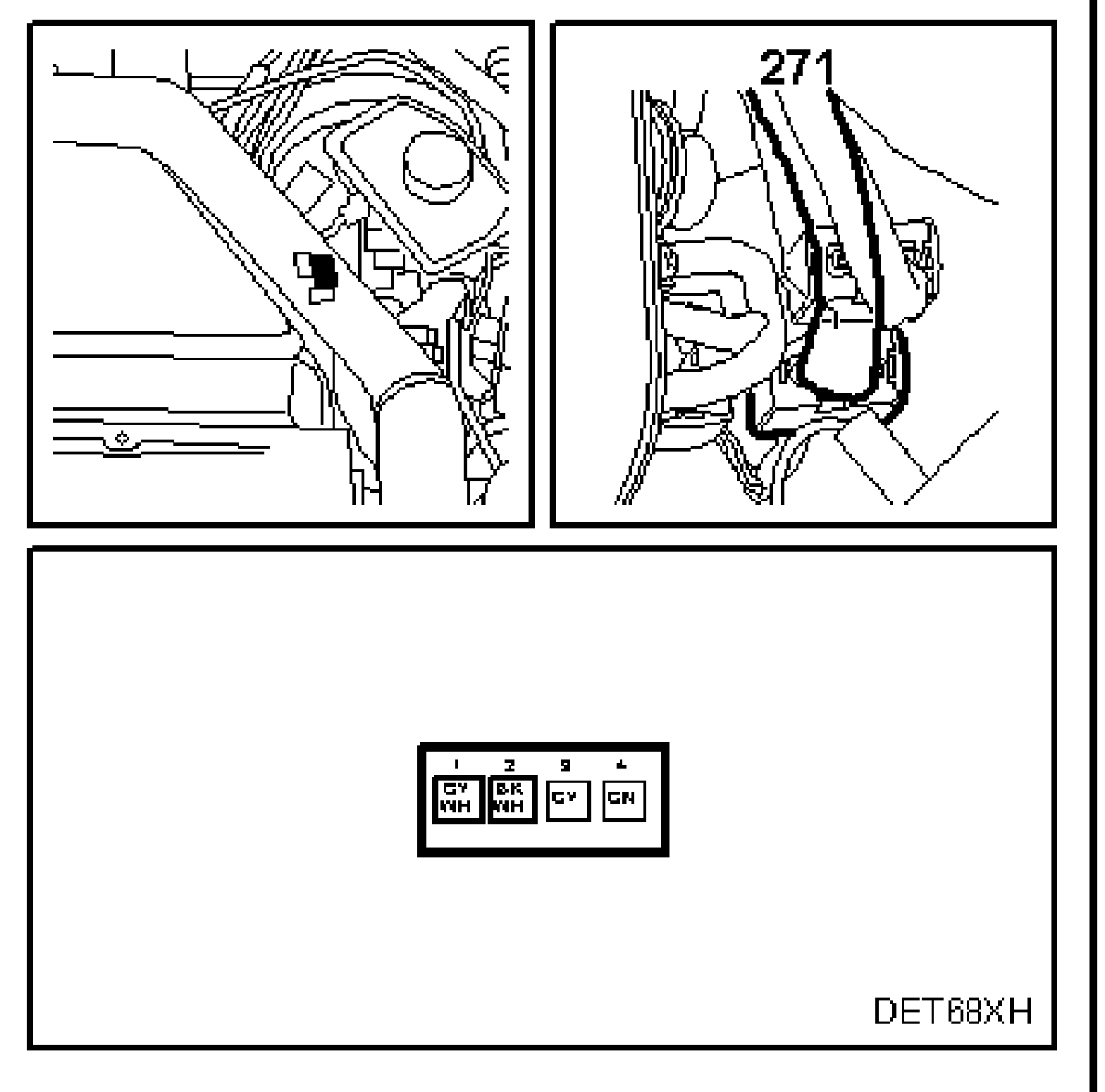

Rear
