Home >> Saab >> 2003 >> 9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Global Positioning System >> System Diagram >> Connection, Digital, Onstar (466hb)

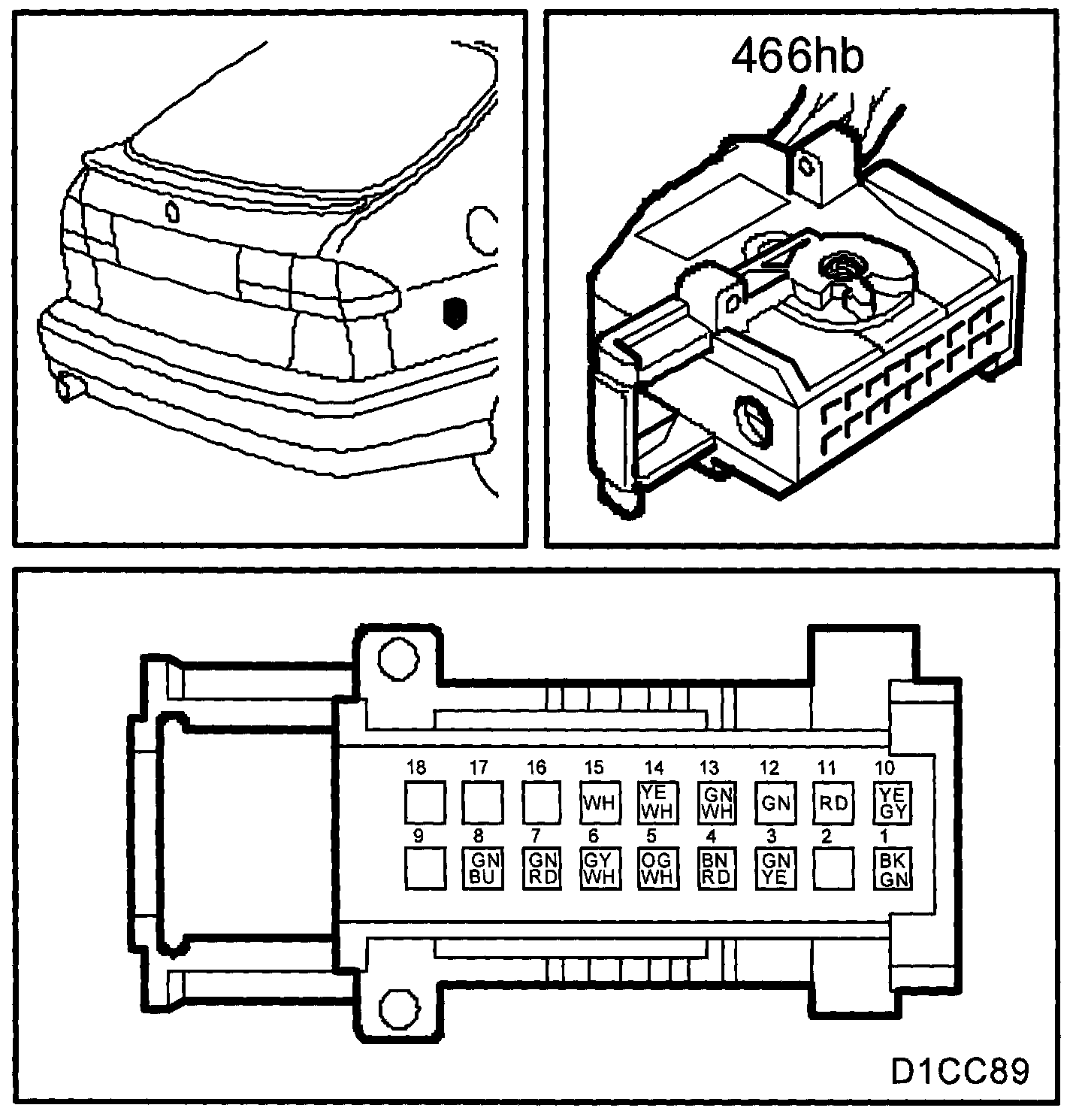

Connection, Digital, Onstar (466hb)

Connection, Digital, Onstar (466hb):
