Vacuum Pipe With Vacuum Boost

Vacuum pipe with vacuum boost
Removing





1. Remove the engine cover.

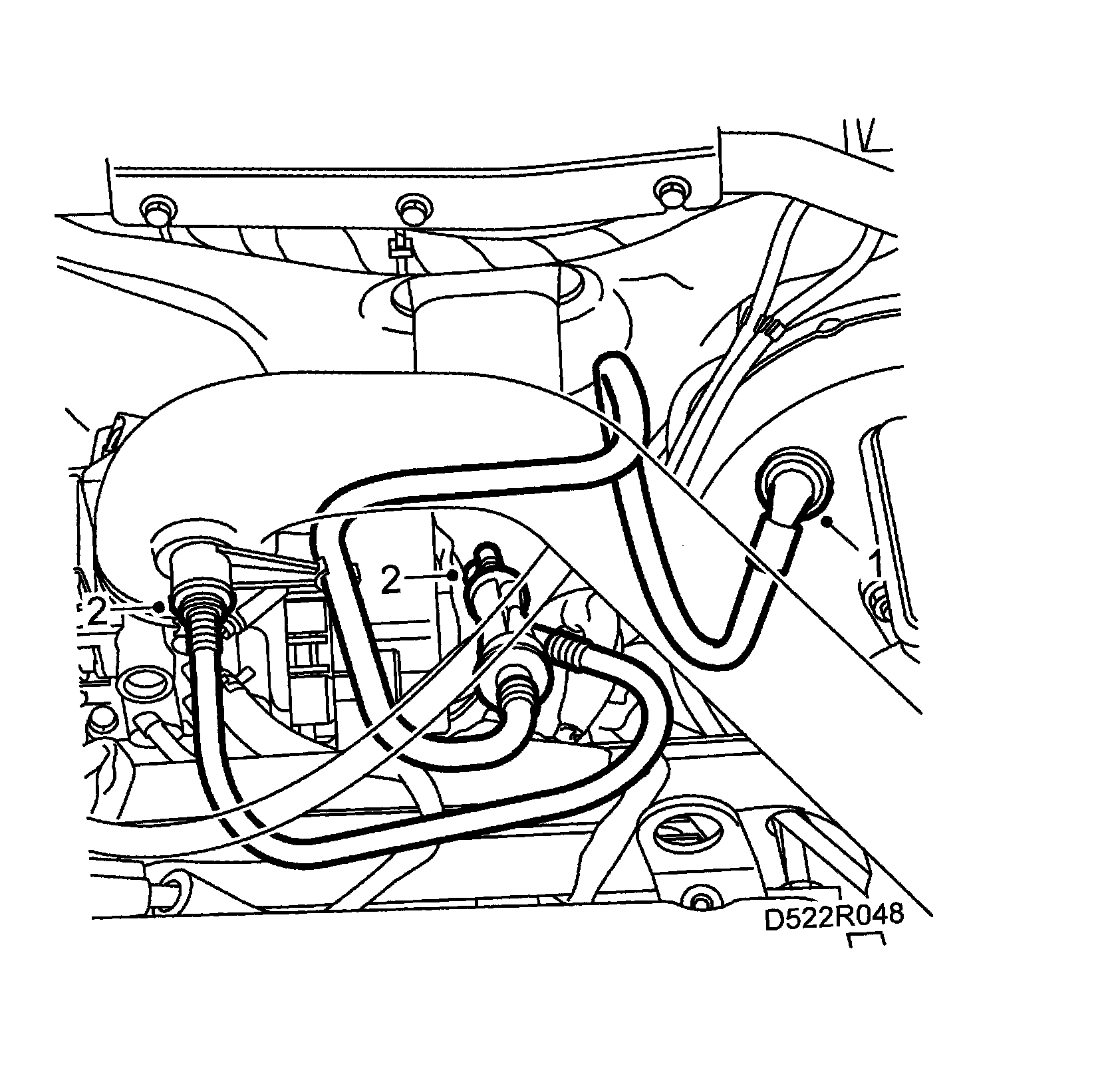

2. Remove the hose from the charge air pipe. Press in the red ring and pull out the hose.
Remove the hose from the intake manifold. Press in the red ring and pull out the hose.
3. Remove the hose from the vacuum unit.

To fit





1. Fit the hose to the vacuum unit.
2. Fit the hose to the intake manifold.
Fit the hose to the intake manifold.
