Brake Servo





The brake servo unit boosts the pressure on the brake pedal exerted by the driver when the brakes are applied. The extra power supplied by the servo unit is obtained from the vacuum formed in the engine intake manifold or vacuum pump and amounts to about a five-fold increase in pedal power. To achieve this servo assistance in a compact design, the servo unit has dual operating chambers.
The servo unit is connected to the intake pipe by a hose.
The servo unit consists of a metal casing, valve unit and two diaphragms mounted between the brake pedal and master cylinder and connected to them by pushrods. If the supply of vacuum to the servo unit fails, the two pushrods acts as a single pushrod. The brakes will then be applied mechanically without servo assistance but much more pedal force will be required.

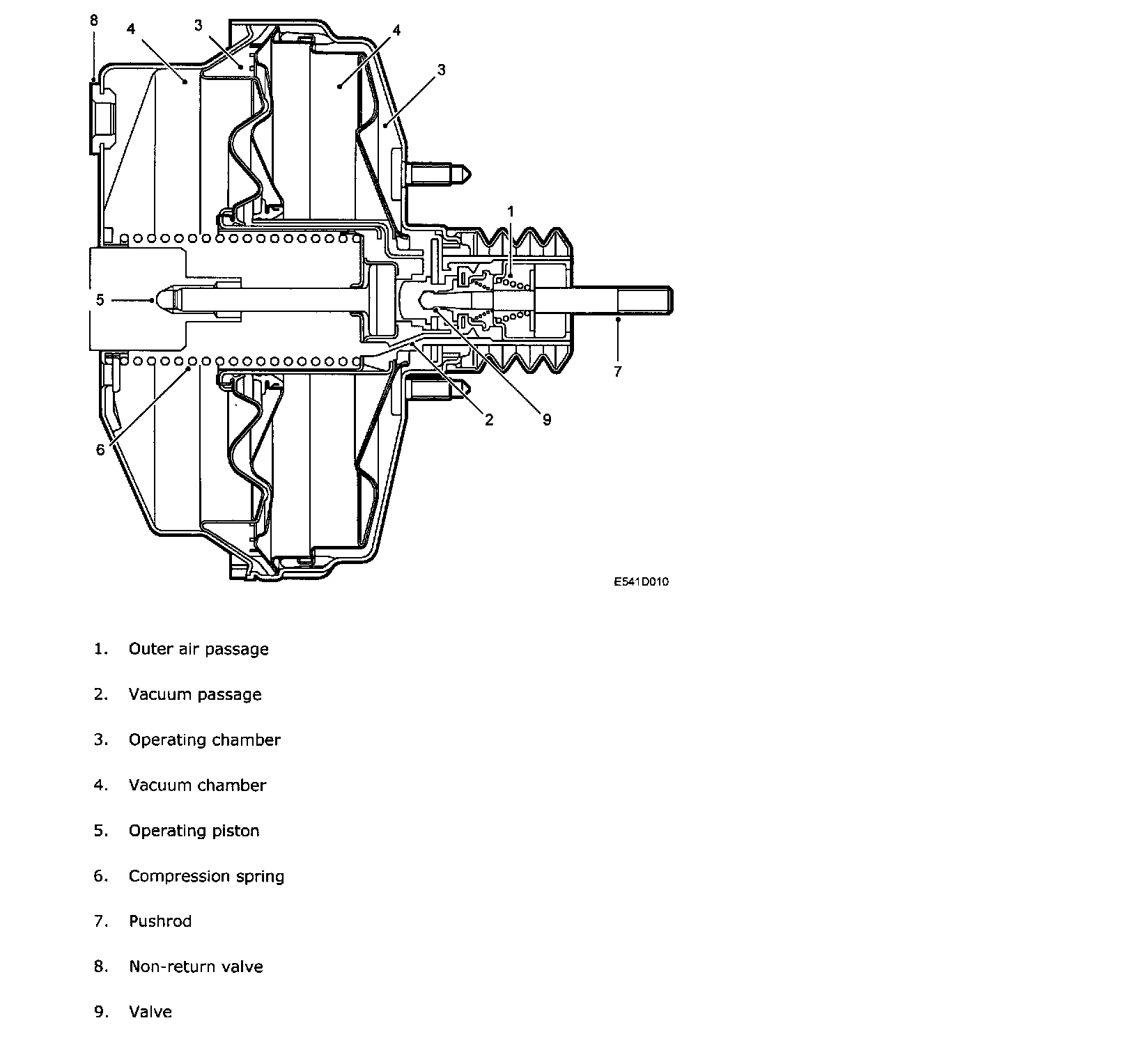

Rest (brakes off) position





In the rest position the outer air passage (1) is closed while the vacuum passage (2) is open.
Equal vacuum is present in both the operating chambers (3) and the vacuum chambers (4). The operating piston (5) is kept in its right-hand rest position by the compression spring (6).

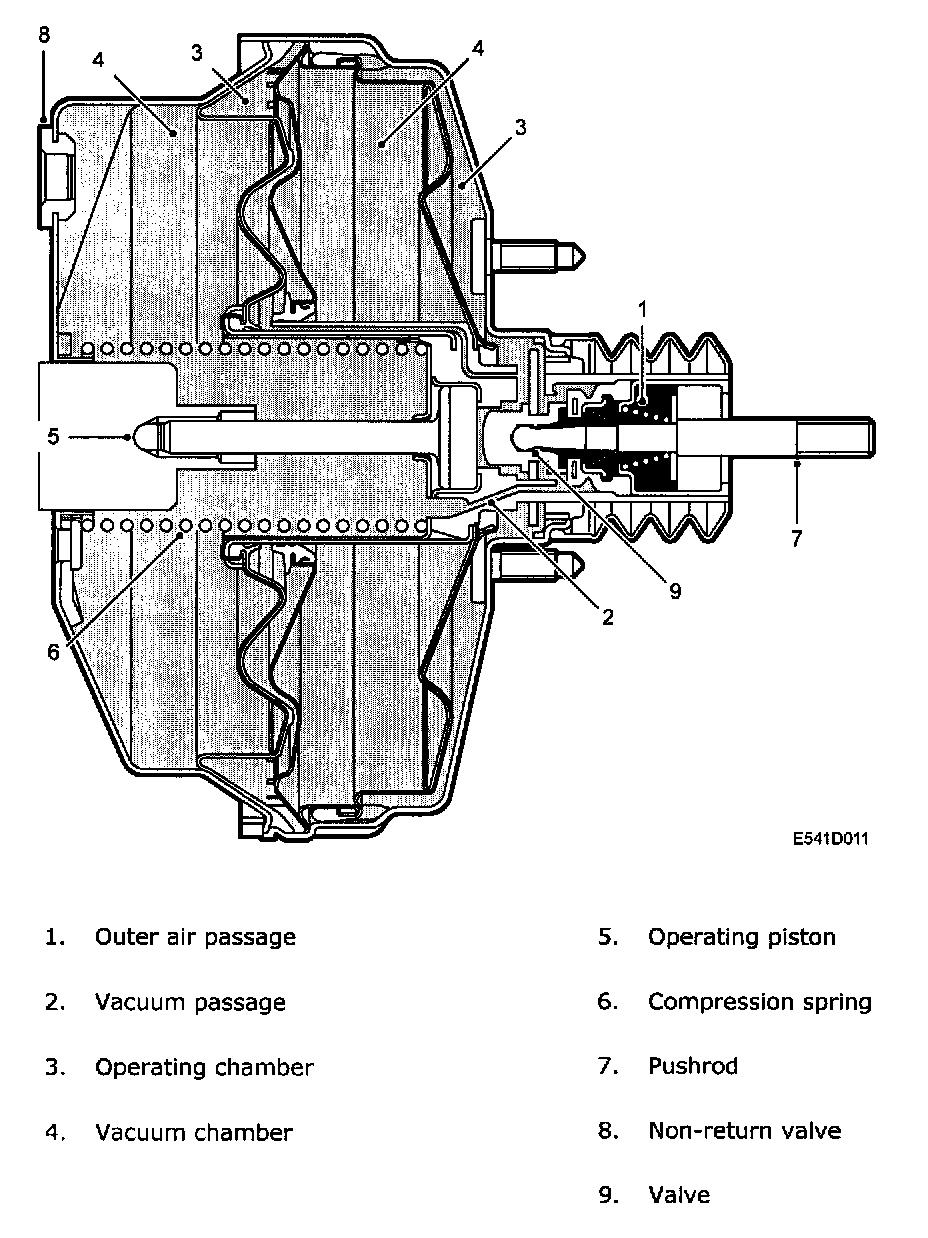

Brakes partially applied





When the brake pedal is depressed, the vacuum passage (2) first closes and the outer air passage (1) opens. Air is then evacuated from the two vacuum chambers (4) while the two operating chambers (3) are filled with air at normal barometric pressure. The difference in pressure forces the two diaphragms to move in the same direction as the operating piston (5) and boosts the effort applied by the driver. When even pressure is applied to the brake pedal, the brake servo and master cylinder are in a state of equilibrium and the mechanism is stationary, the pressure increase in the operating chambers stops as the outer air passage closes. A state of readiness is now achieved where every change in pedal pressure results in an increase or decrease of the pressure difference between vacuum chamber and operating chamber and so to an increase or decrease of braking power. A decrease in the pressure occurs when the brake pedal is released and the vacuum passage opens and outside air is admitted to the intake manifold until a state of equilibrium is again achieved and the vacuum passage closes.

Brakes applied





In the brakes fully applied position the vacuum passage (2) is closed and the outer air passage (1) continuously open. The highest possible pressure difference then obtains between the chambers (3, 4) and with it the greatest possible brake servo assistance. Increasing the force on the master cylinder additionally is possible only by increasing the force applied to the brake pedal.
