Replacing Brake Hoses

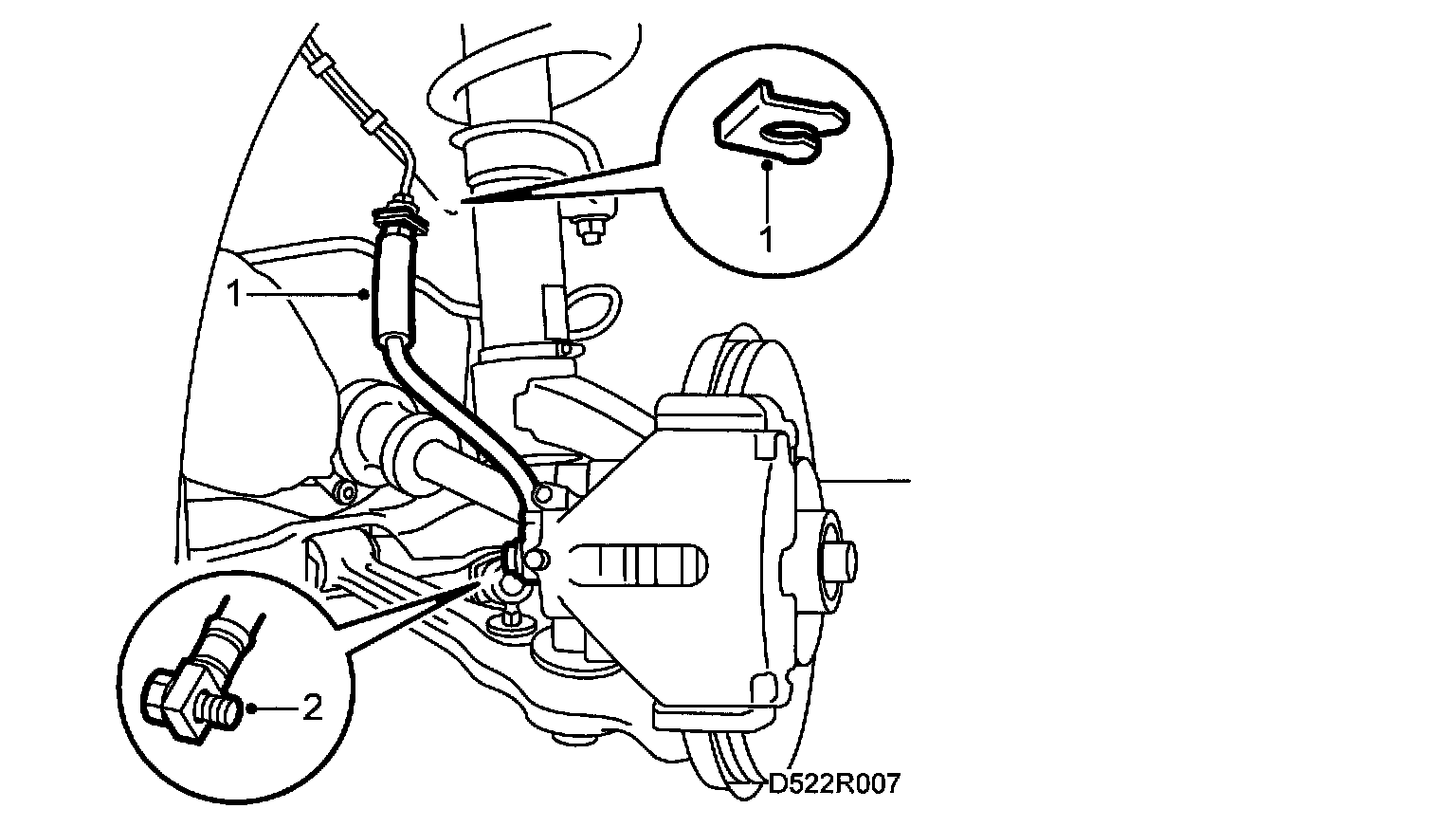

Replacing brake hoses
To remove





1. Depress the brake pedal with a brake pedal clamp.
2. Lift the car and remove the wheel on the side on which the hose is to be replaced.
3. Undo the connection on the brake caliper and separate the connection between the brake pipe and the brake hose. Plug the brake pipe.
4. Release the clip and remove the hose.


To fit





1. Connect the new brake hose to the brake line and fit the clip.
2. Fit the hose to the brake caliper. Make sure the hose is turned correctly.
3. Bleed the brake system.
4. Fit the wheel.
Tightening torque 110 Nm (81 ft. lbs.)
5. Check the brake hose connections for leakage.
