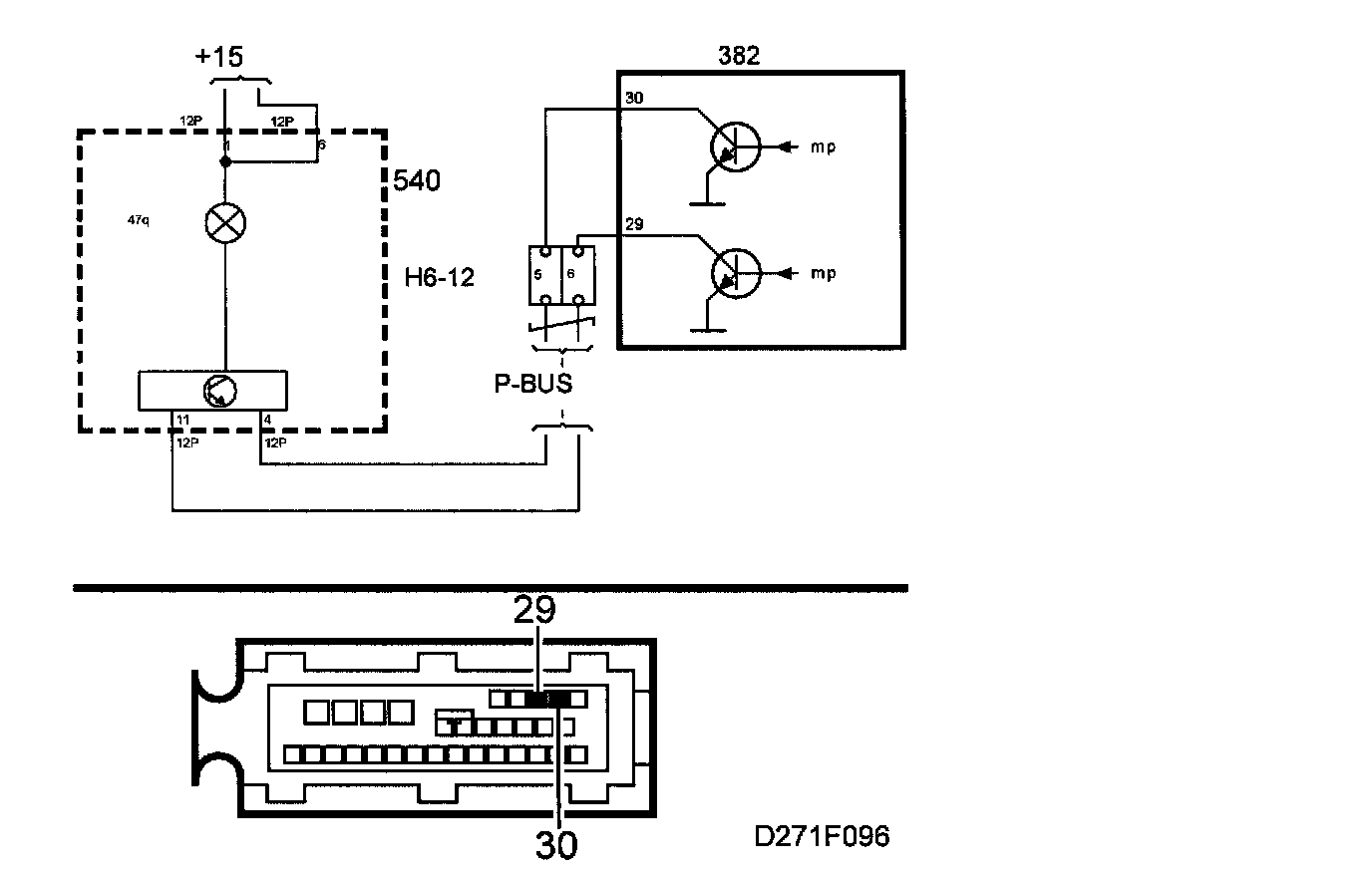

ABS Warning Lamp Does Not Come On

ABS Warning Lamp Does Not Come On






Fault symptoms
Lamp test is conducted when ignition turned on. ABS warning lamp should be on for about 3 seconds. ABS warning lamp does not come on.

Conditions
Bus communication must be in working order. See System overview, refer to Powertrain Management.

Diagnostic help
The ABS warning lamp can be activated with the diagnostic tool.
- Select "Activate"
- Select "ABS lamp"
