Grounding Point G2


Grounding point G2

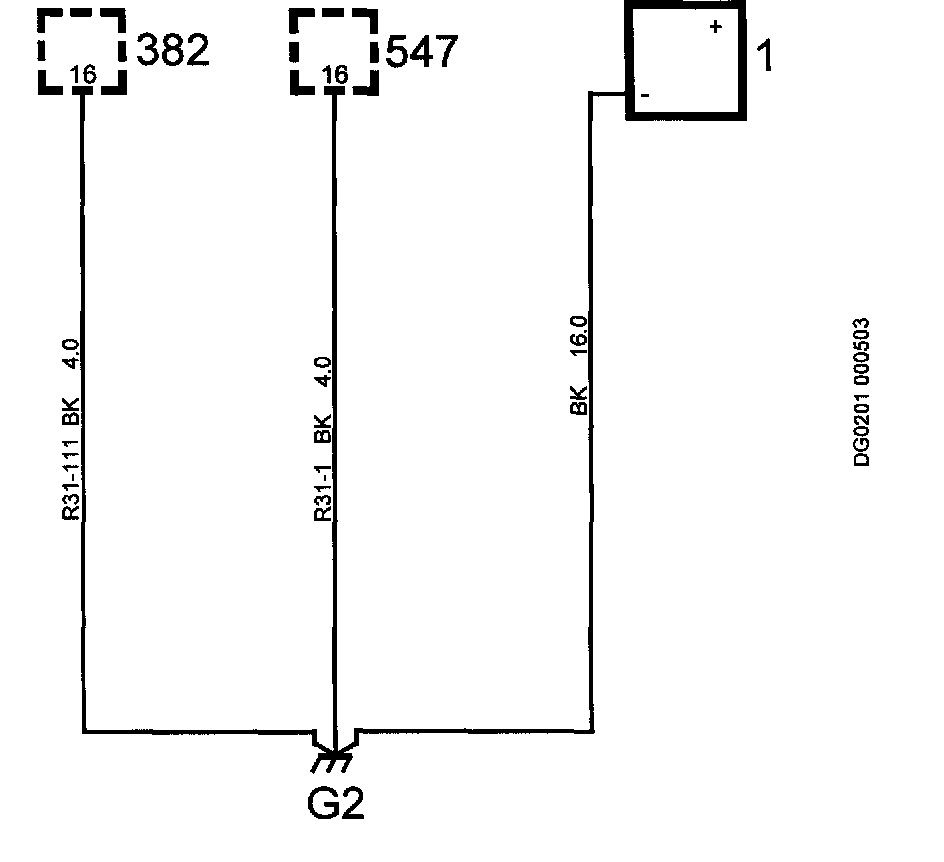

Part 1 Of 2:




Part 2 Of 2:

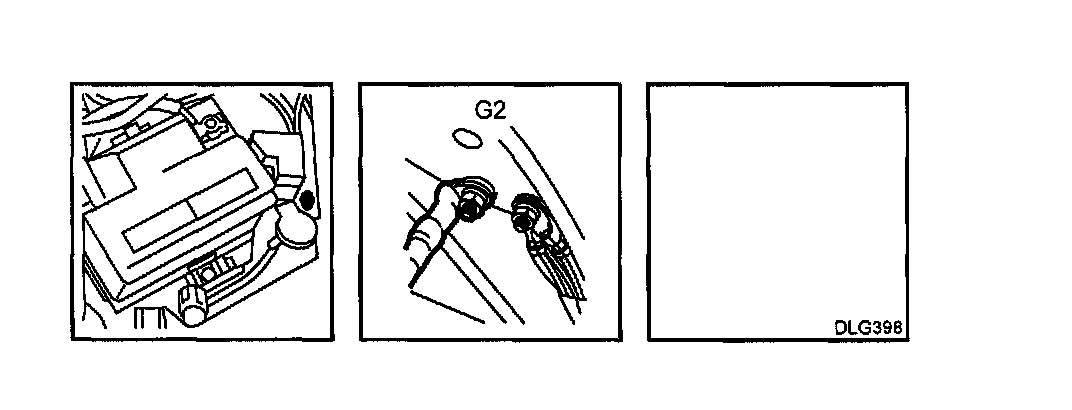

Location: in engine bay on side panel in front of left-hand wheel housing.

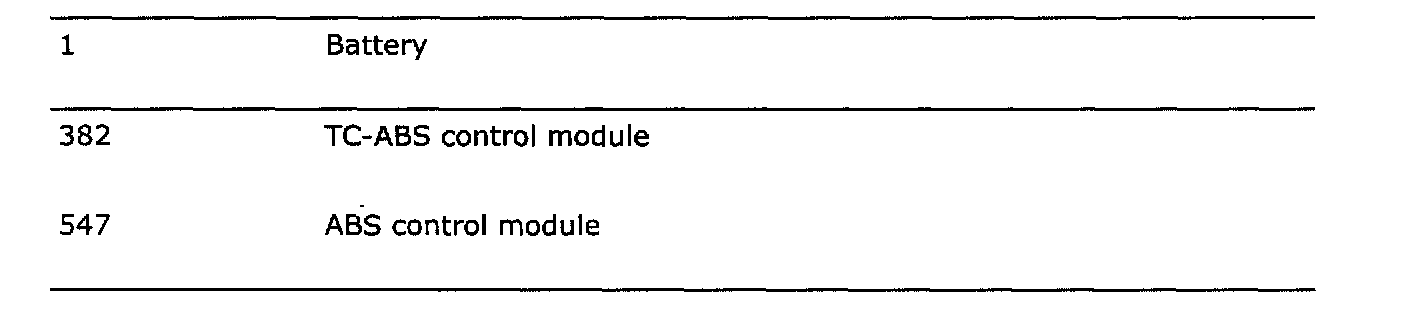

Connected components





The battery is also connected to the gearbox grounding point G2S.
