Grounding Point G33S


Grounding point G33S

sa0193_5fb-150a:





Location: in cabin below left A-pillar.
Cable marking: yellow tape.

Connected components

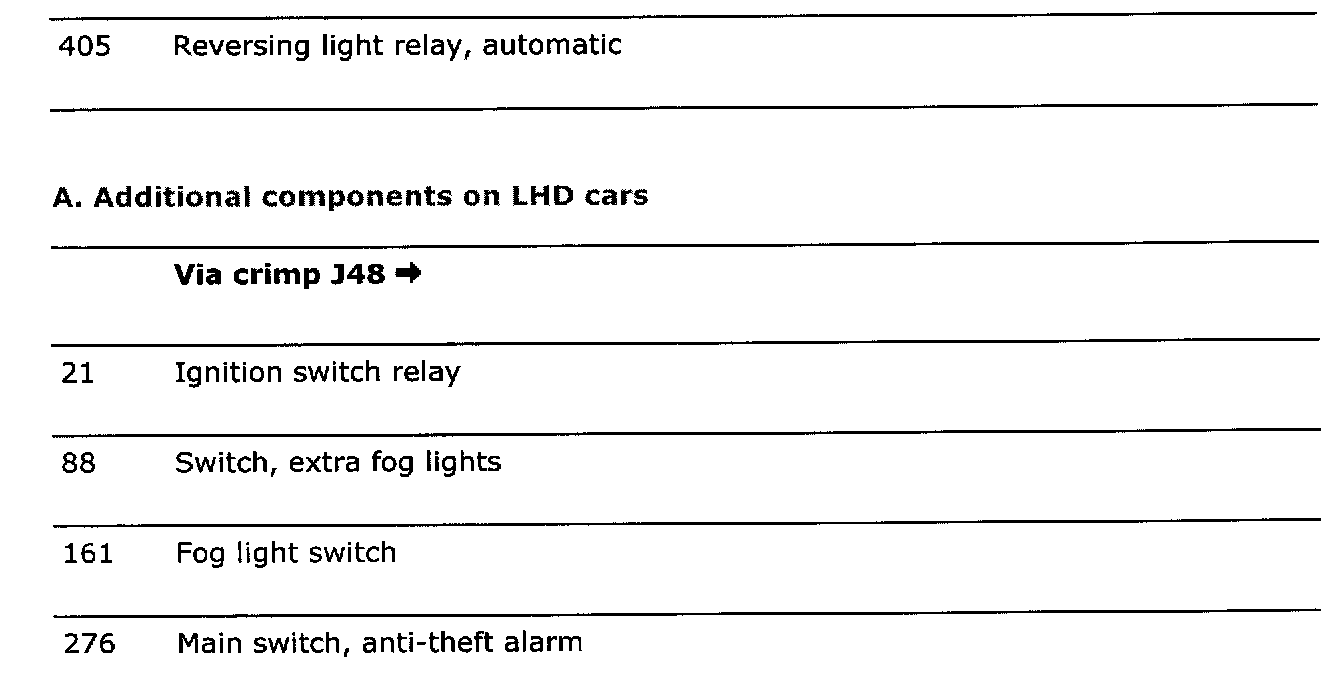

Connections Table (Part 1 Of 2):

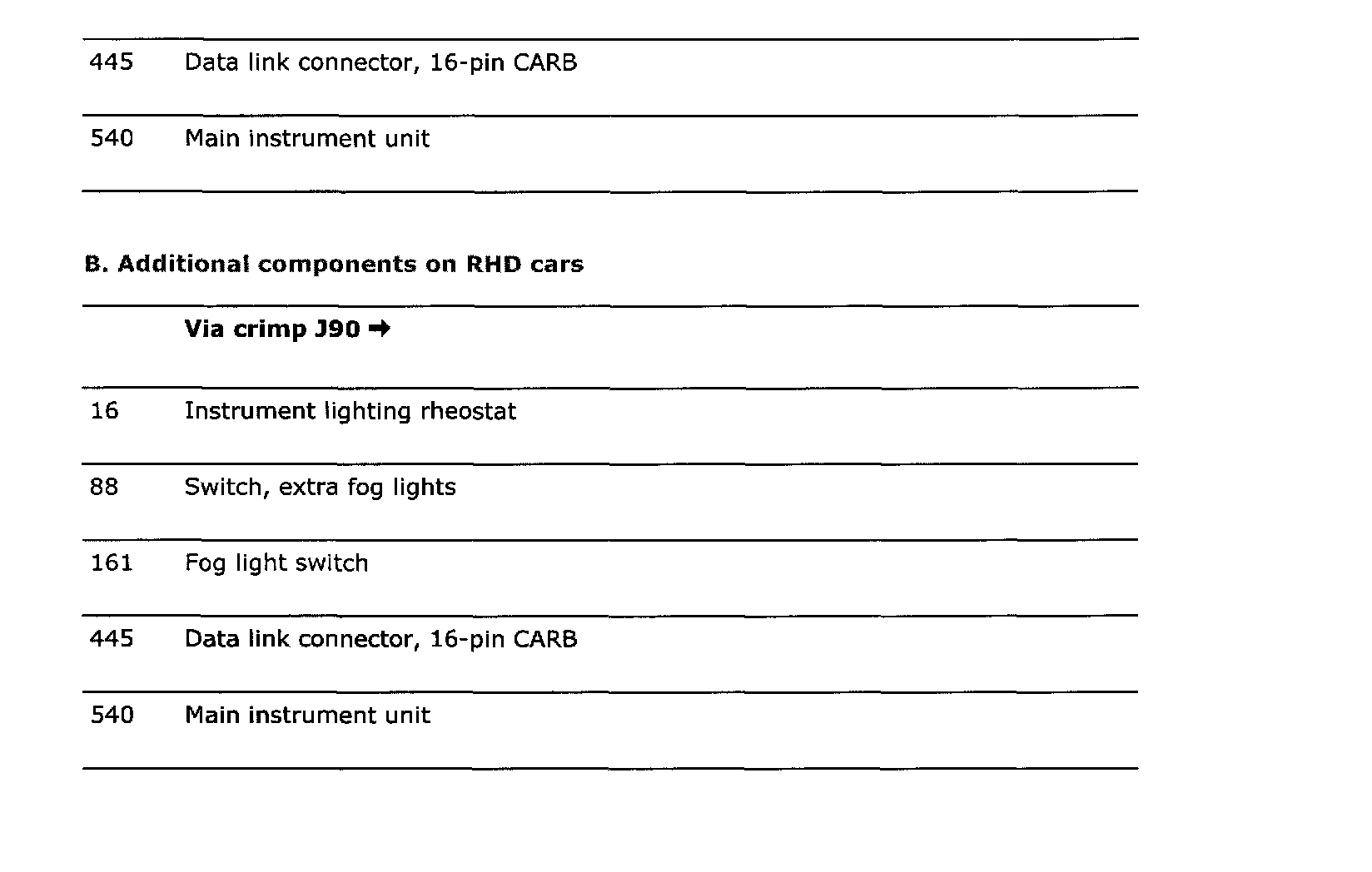

Connections Table (Part 2 Of 2):
