ABS 5.4: System overview

ABS 5.4: System Overview:

^ Wheel sensors, rear (298R)
^ Wheel sensors, front (298F)
^ Hydraulic unit, complete with control module, valve block and return pump (547)
^ Control module, Saab Trionic (430)
^ Control module, Saab Motronic 2.10.3 (505)
^ Control module, EDC 15 (595)
^ Cruise control unit (508)
^ Control module, Sensonic (509)
^ Main instrument unit, MIU (540)
^ Data link (445)


Main components

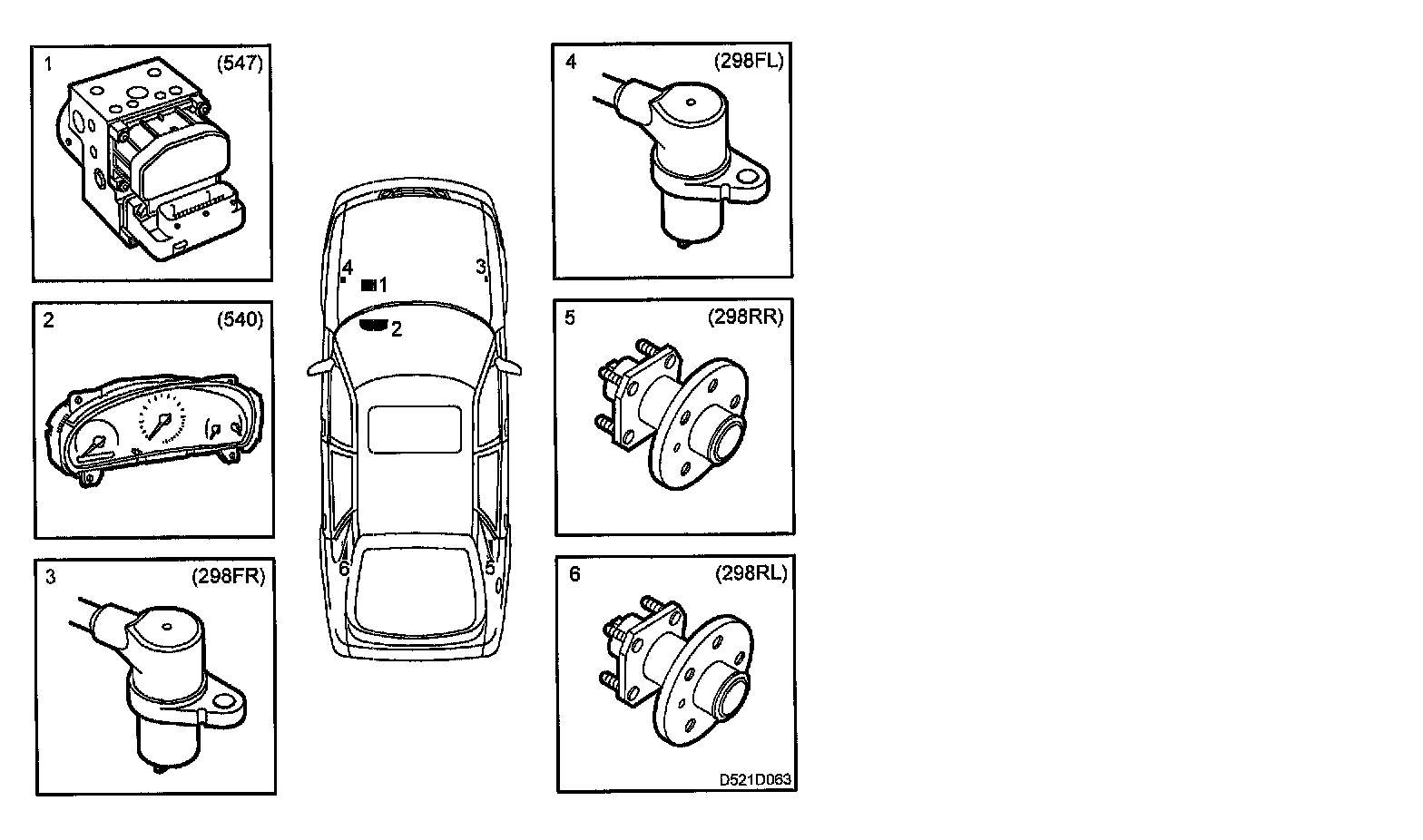

ABS 5.4 Main Components:

1. Hydraulic unit, complete with control module, valve block and return pump (547)
2. ABS warning lamp on MIU (540)
3. Wheel sensor, FR (29SFL)
4. Wheel sensor, FL (298FR)
5. Wheel sensor, RR (298RR)
6. Wheel sensor RL (298RL)
