Switch, TCS ON/Off

Switch, TSC ON/OFF

Component Diagram:

The TCS function can be turned ON/OFF by means of a spring-loaded switch on the dashboard to the right of the steering wheel. turning the TCS function off causes the TCS OFF lamp on the main instrument unit to light up.

The switch is connected to the TC/ABS control module pin 31 and to grounding point G33P (LHD) or G34S (RHD). The TCS/ABS control module supplies B+ from pin 31 and when the disengaged depending on the current state.

the switch can be used to disengage the TCS function at speeds below 60 km/h (37.5 mph) or to engage it at an optional speed. The TCS function is always engaged with the ignition is turned ON.

The TCS OFF lamp is turned on via a bus message to MIU when TCS is disengaged.

Diagnostics

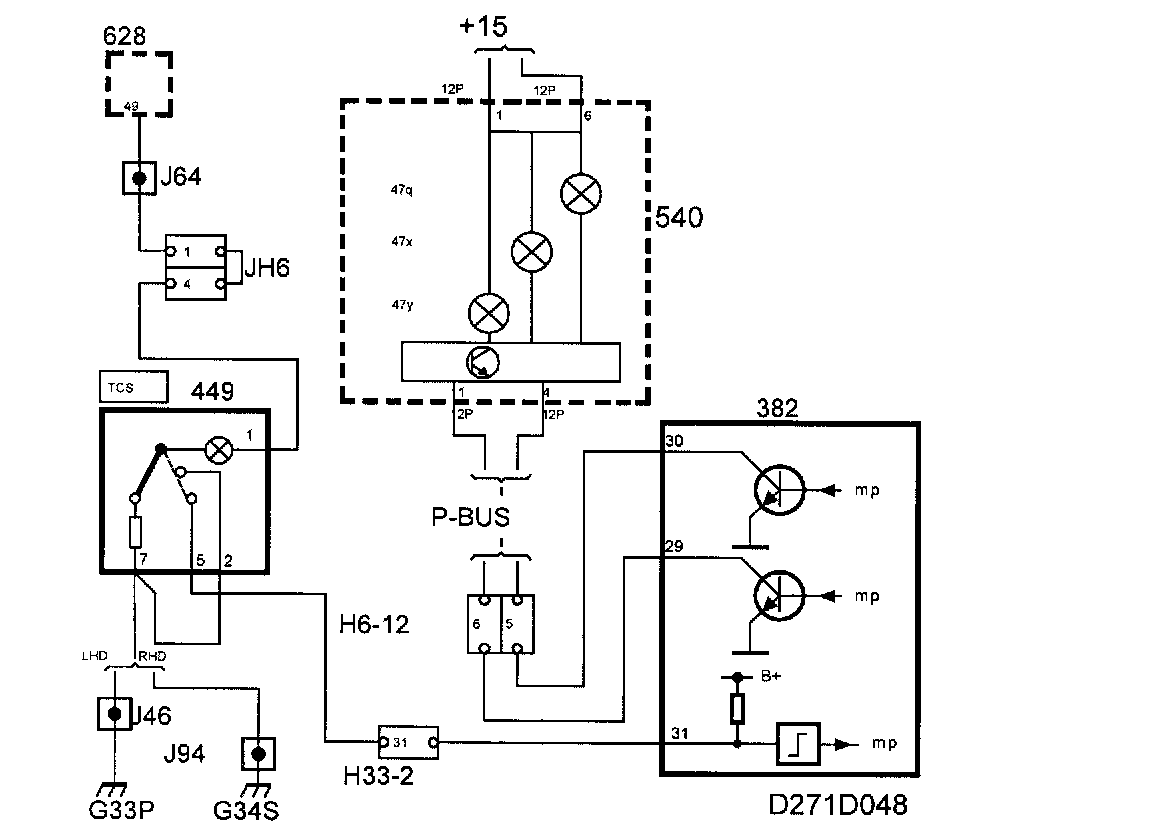

Circuit Diagram:

If the button is held in for longer than 10 seconds, the TC/ABS control module will engage the TCS function and it will then not be possible to turn off the function without first turning off the ignition and then turning it on again. This will not generate a DTC.
