Engine RPM

Engine rpm

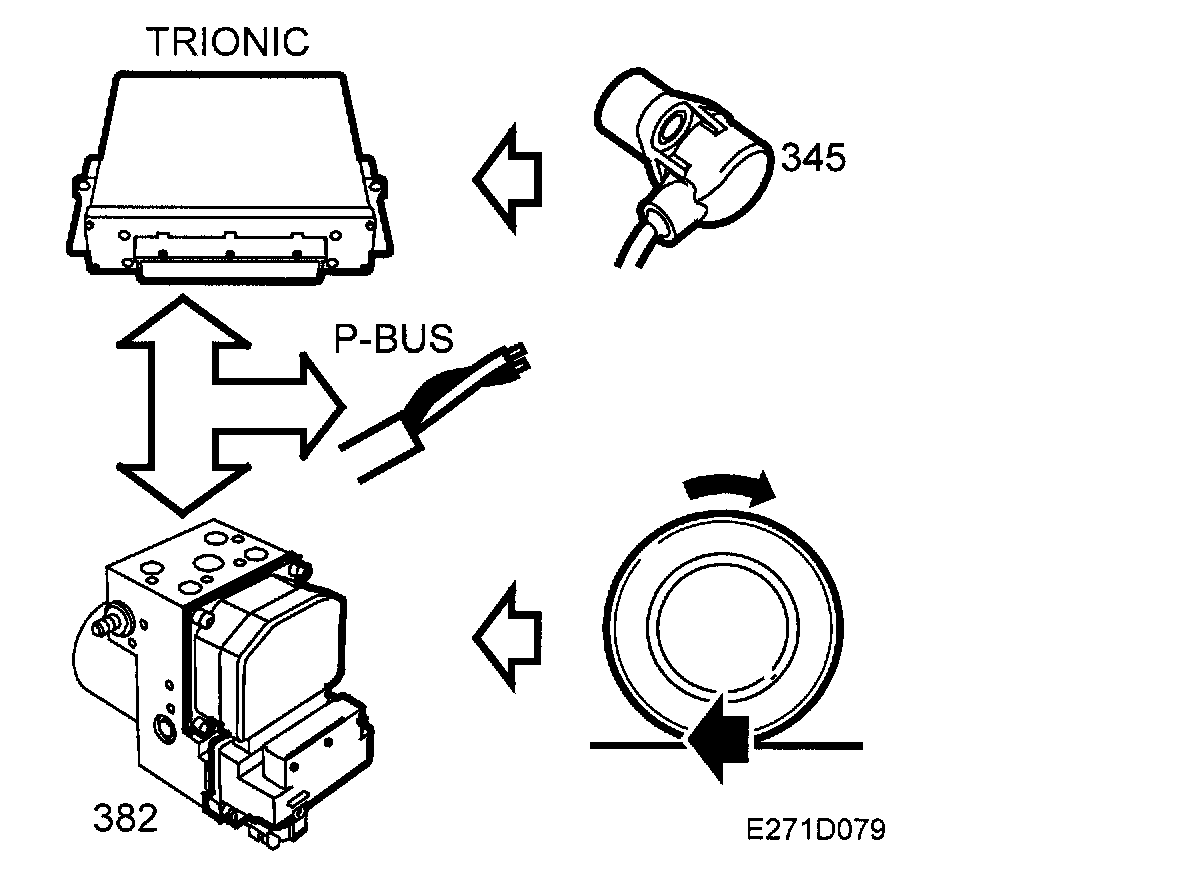

Component Diagram:

The TC/ABS control module receives information about current engine speed from the engine management system via the P bus. The control module uses this information when calculating the current drive wheel torque.

When engine torque and the current ratio are known, the control module can calculate the drive wheel torque. Drive wheel torque is used to calculate the magnitude of brake/engine torque limitation during TCS modulation.


Diagnostics

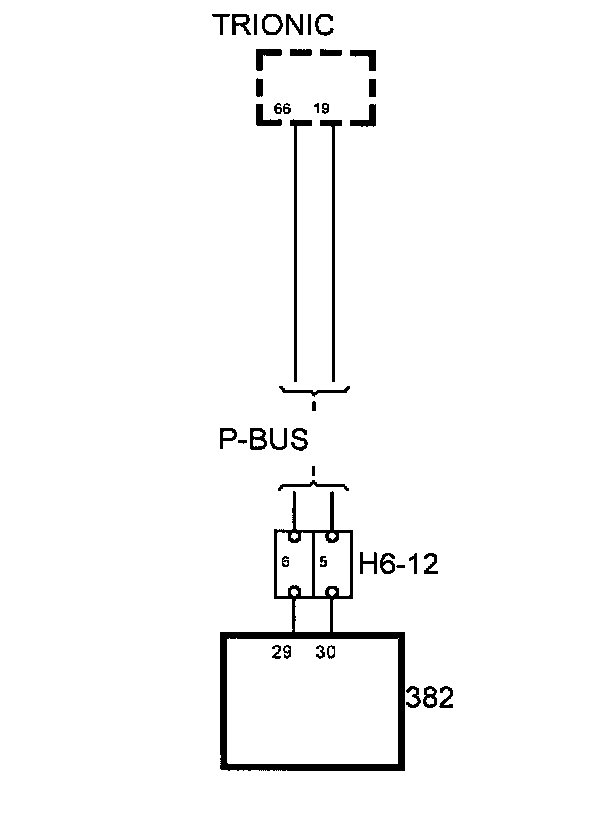

Circuit Diagram:

If the engine speed data from the Trionic is erroneous when the engine is running, diagnostic trouble code C1927is generated, the TCS function is disengaged and the TCS warning lamp lights.
