Radiator Fan System

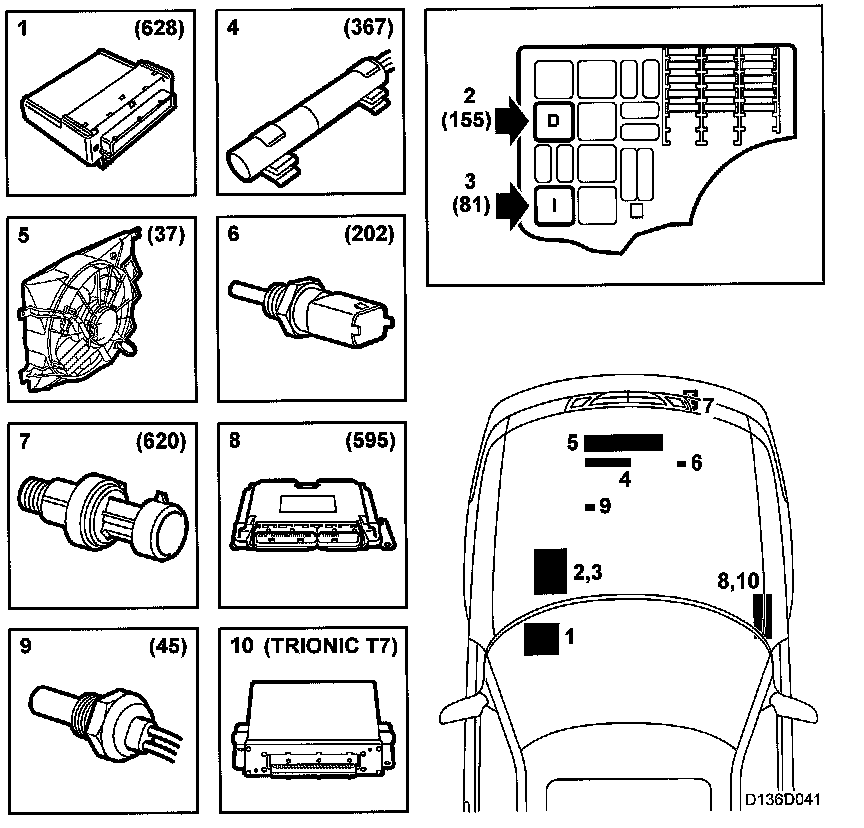

Main components, radiator fan system







1. Control module, DICE (628)
2. Relay, 2-speed radiator fan, low speed (155)
3. Relay, 2-speed radiator fan, high-speed (81)
4. Resistor, 2-speed radiator fan (367)
5. Motor, radiator fan (37)
6. Engine coolant temperature sensor (202)
7. Pressure sensor, A/C (620)
8. Engine management system, diesel (595)
9. Engine coolant temperature sensor (45)
10. Engine management system, petrol (Trionic T7)
