A/C Function

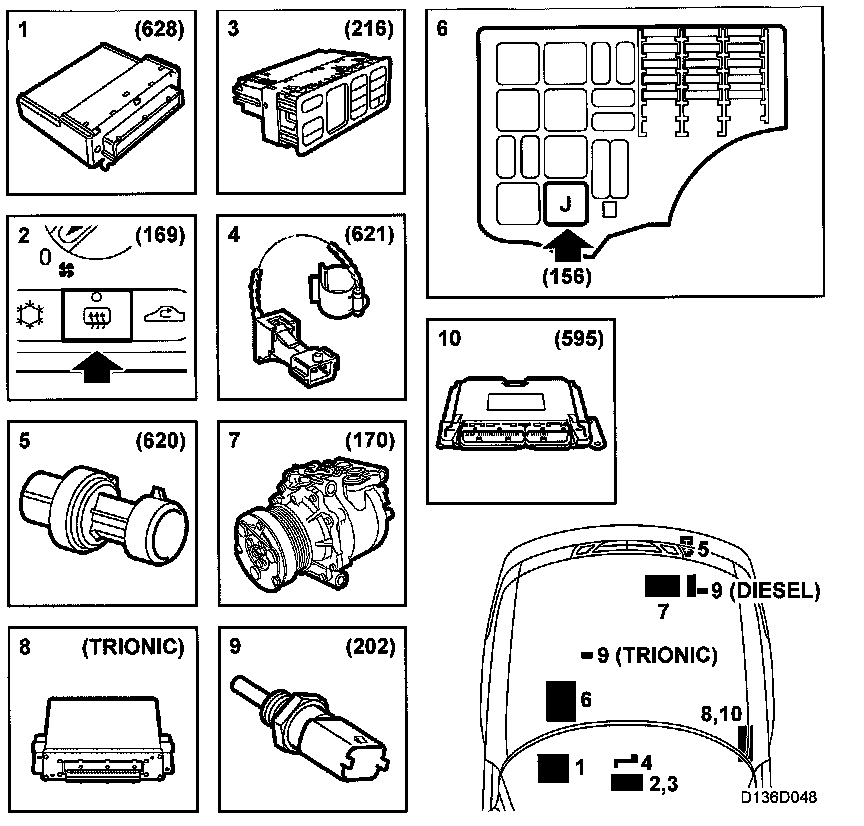

Main Components, A/C Function







1. Control module, DICE (628)
2. Switch, A/C (169)
3. Control module, ACC (216)
4. Temperature sensor, A/C evaporator (621)
5. Pressure sensor, A/C (620)
6. Relay, A/C compressor (156)
7. Compressor, A/C (170)
8. Engine management system, petrol (430a, 589a)
9. Engine coolant temperature sensor (202)
10. Engine management system, diesel (595)
11. Engine coolant temperature sensor (45)
