Control Module Power Supply

Control Module Power Supply

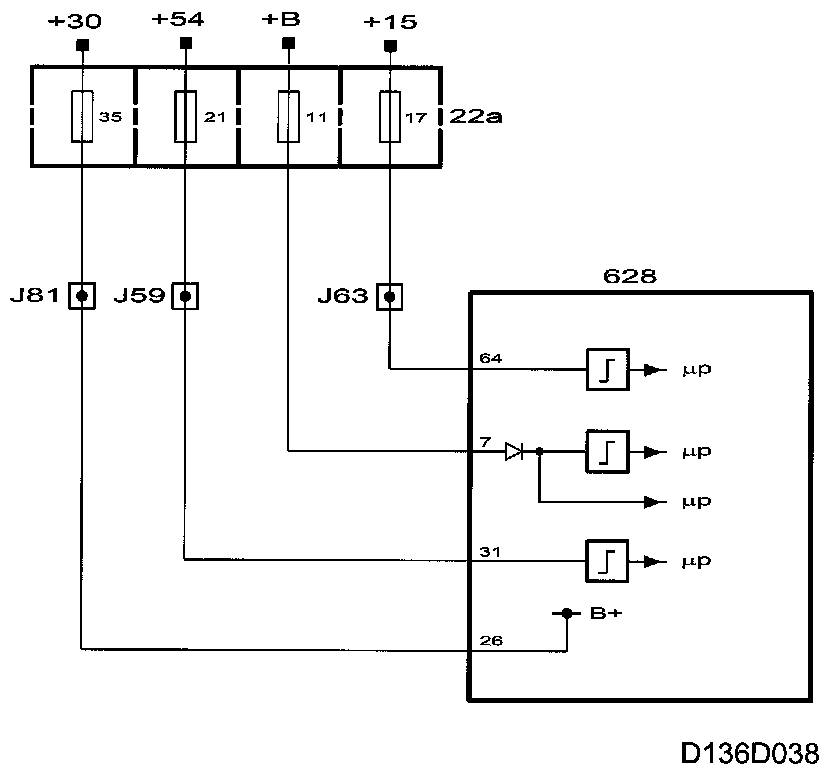

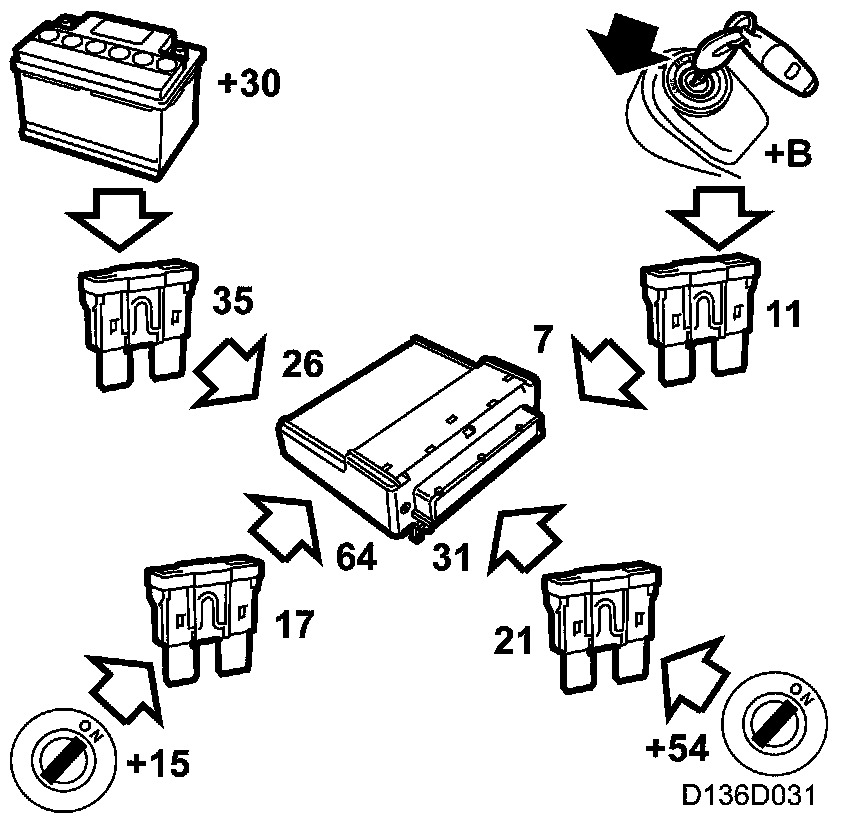

Power supply (+B circuit)
From fuse 11 (22a) to control module, pin 7.

Power supply (+15 circuit)
From fuse 17 (22a) to control module, pin 64.

Power supply (+30 circuit)
From fuse 35 (22a) to control module, pin 26.

Power supply (+54 circuit)
From fuse 21 (22a) to control module, pin 31.
