Control Module Inputs, Bus (Trionic T7)

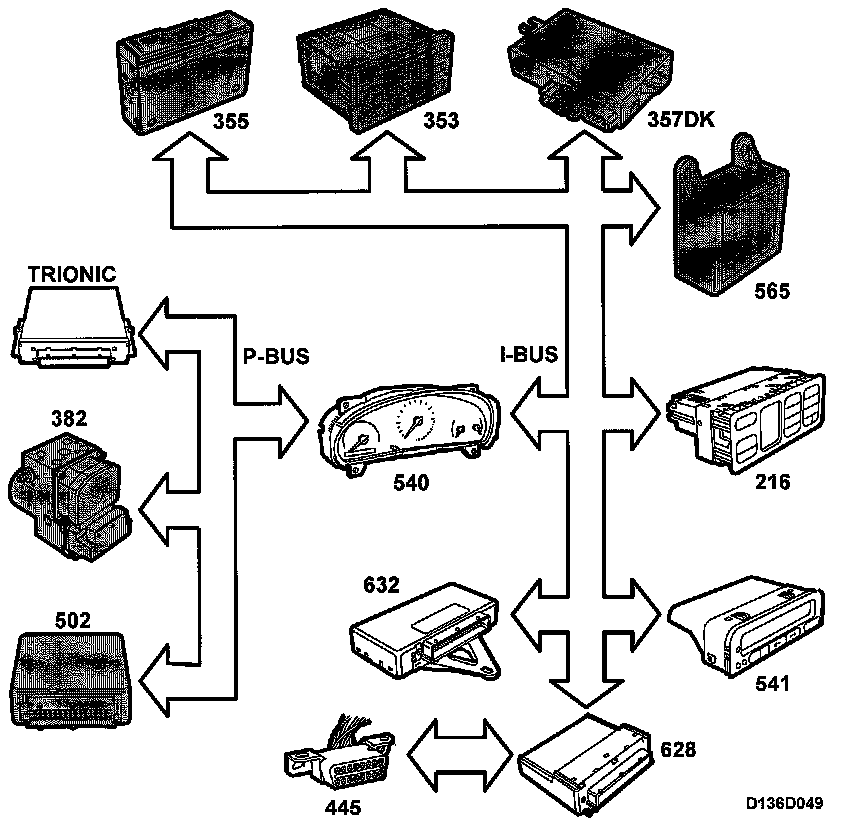

Control Module Inputs, Bus (Trionic T7)







- Rear lights left/right (on/off) from TWICE (632)
- Driver's door (open/closed) from TWICE (632)
- Passenger door (open/closed) from TWICE (632)
- Rear doors left/right (open/closed)from TWICE (632)
- Boot lid/tailgate (open/closed) from TWICE (632)
- Hazard flashers (on/off) from TWICE (632)
- Central locking system (unlocked/locked) from TWICE (632)
- A/C (on/off) from ACC (216)
- Electrically heated rear window (on/off) from ACC (216)
- Vehicle speed (km/h, mph) from MIU (540)
- A/C Relay (on/off) from MIU (540)
- Coolant temperature, not T7 (°C) from MIU (540)
- Rheostat value (%) from SID (541)
- Rheostat Night Panel (%) from SID (541)
- Night Panel (on/off) from SID (541)
- Outside temperature (°C) from SID (541)
- The engine has started (on/off) from T7 (430b)
- Coolant temperature (°C) from T7 (430b)
- Diagnostics communication

For a further description concerning the control module input information from the bus, see Bus communication

For a further description concerning diagnosis, see Bus and diagnostic communication
