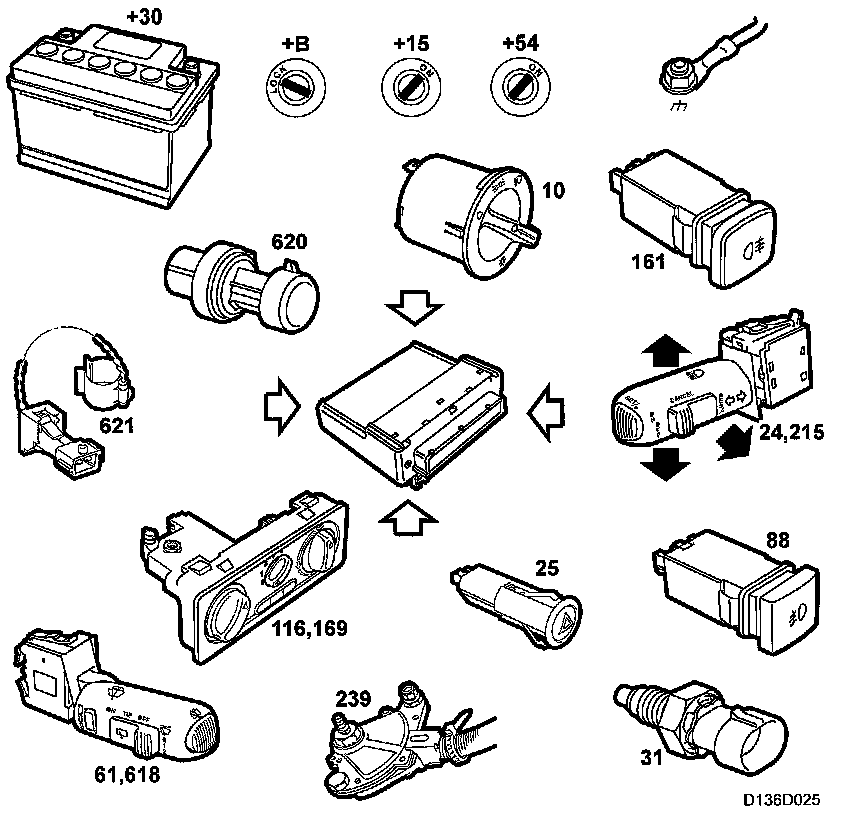

Control Module Inputs

Control Module Inputs







- Power supply (+B circuit)
- Power supply (+15 circuit)
- Power supply (+30 circuit)
- Power supply (+54 circuit)
- Ground
- Exterior lighting, switch pos. 0 / pos. 2 (10)
- Dipswitch (215)
- Direction indicators, power supply +30
- Direction indicators, switch left / right (24)
- Hazard flasher, switch (25)
- Front fog lights, switch (88)
- Rear fog lights, power supply +30
- Rear fog lights, switch (161)
- Reversing lights switch man/aut (31/239)
- Comfort lighting, power supply +30
- Reading/cabin lighting, power supply +30
- Windscreen and rear window wipers, parked position (61)
- Windscreen and rear window washers, switch (61)
- Intermittent wiper operation, windscreen and rear window, switch (61)
- Intermittent windscreen wiper operation, potentiometer (618)
- Electrically heated rear window and door mirrors, switch (116)
- Evaporator temperature sensor (621)
- A/C pressure sensor, (620)
- A/C request MCC (169)
