Loudspeaker, Rear, Convertible

Loudspeaker, Rear, Convertible

To remove

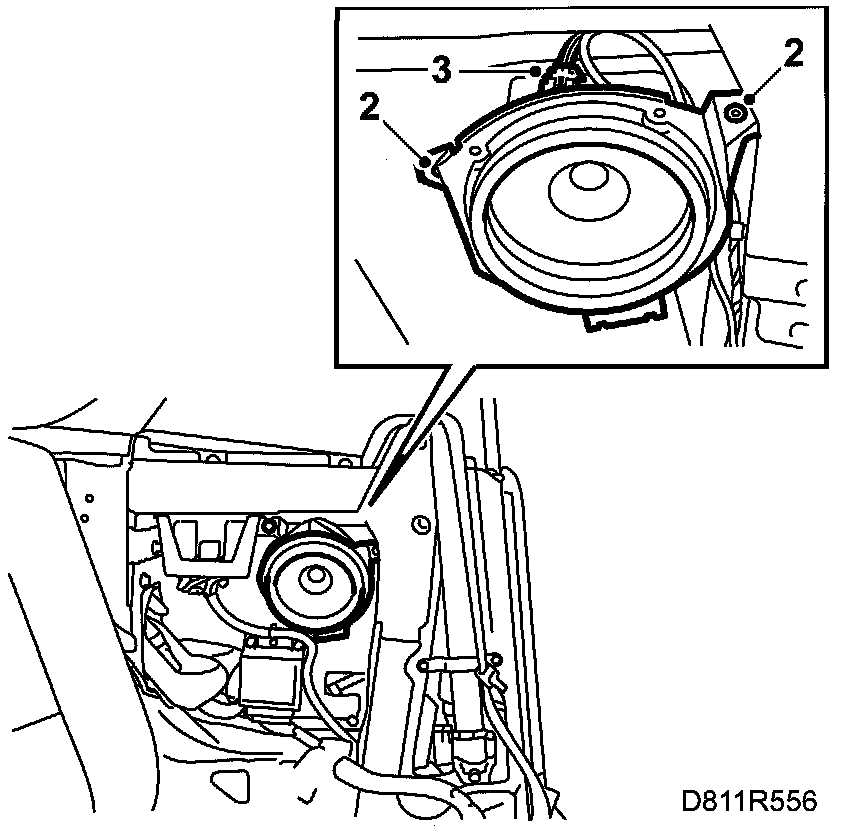

1. Remove the rear side trim.
2. Remove the screws securing the loudspeaker.
3. Disconnect the electrical connection and lift away the loudspeaker.

To fit







1. Connect the electric lead.
2. Put the loudspeaker in place and tighten the screws.
3. Refit the side trim.
