Replacing the front panel







1. Remove the main unit. Remove the main unit's lower and upper covers.

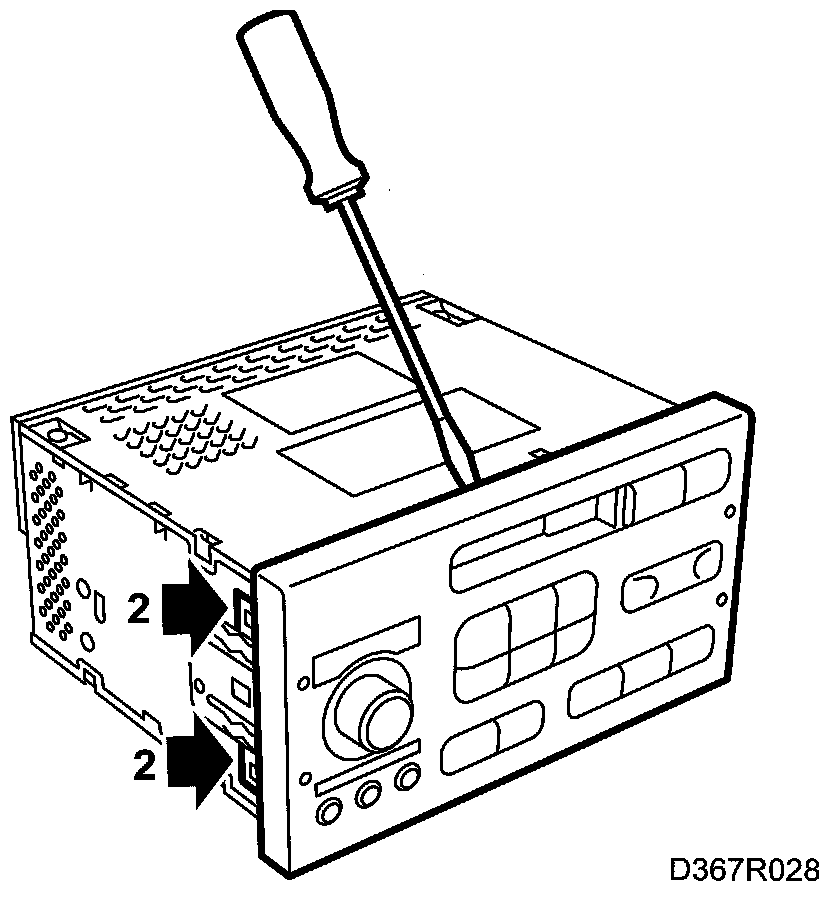

2. Unhook the 4 locking tabs (2 on each side) securing the front panel. If necessary, prise carefully with a screwdriver.

NOTE: When refitting, ensure that the connector under the front panel is correctly positioned.

To fit
Fit the front panel onto the main unit and tighten the bottom/top covers, plug in the connectors and slide in the main unit.
